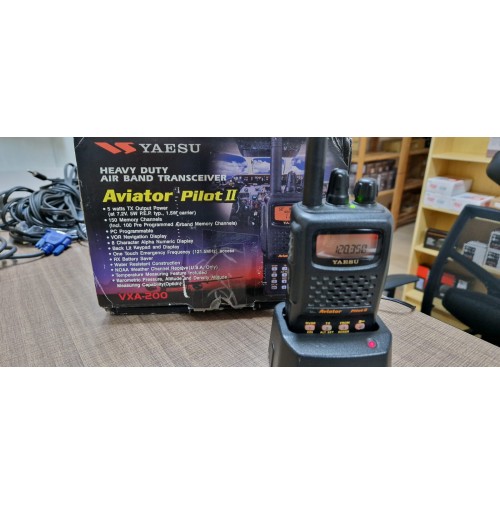

YAESU VXA-200 RICETRASMETTITORE AEREONAUTICO

YAESU VXA-200
 RICETRASMETTITORE AEREONAUTICO PORTATILE
Perfetto in tutto, con caricabatteria da tavolo, imballo originale


SPECIFICATIONS

 GENERAL
 Type: Airband transceiver
 Frequency range: TX: 118-137 MHz
RX: 108-137 / 161.650-163.275 MHz
 Tuning steps: 25 KHz
 Frequency stability: ±10 ppm @ -10 to +60°C (14 to 140°F)
 Mode: TX: AM
RX: AM / FM
 Channels / memory management: 150 regular
100 Book
Alpha tags (Eight characters)
10 NOAA weather channels (US version only)
 Power supply: 6-15 VDC
 Current drain / power consumption: RX: 65-190 mA
TX: 1 A @ 1.5 W carrier
 Antenna impedance / connector: 50 ohm / SMA
 Dimensions (W*H*D): 58*109*30 mm (2.28*4.29*1.18")
 Weight: 345 g (12.2 oz)
 Other features: VOR navigation. PC programmable. Temperatur sensor option.


 RECEIVER SECTION
 Receiver system: Double conversion superheterodyne
1st IF: 35.4 MHz
2nd IF: 450 KHz
 Sensitivity: 0.8 uV (6 dB S/N)
 Squelch sensitivity:
 Noise figure:
 Selectivity: 8 KHz (-6 dB)
25 KHz (-60 dB)
 Image rejection:
 AF output power / speaker: 400 mW at 10% distortion / 8 ohm
 External speaker connector:


 TRANSMITTER SECTION
 RF output power: 1.5 W (Carrier), 5 W (PEP)
 Modulation system: Low level amplitude modulation
 Spurious emissions: Better than -60 dB
 Microphone impedance / connector: 150 ohm / ?-pin
 Microphone input level: ? mV


 MISCELLANEOUS
 Manufactured: Japan, 2001-200x (Discontinued)
 Additional info:
 Related documents:
 Modifications and fixes:
 Reviews:
 Options / Accessories:

 E-DC-5B
FBA-25
FNB-V57
MH-44A4B
SU-1
VAC-800B
VAC-800C DC adapter with noise filter
Alkaline battery case
7.2 V, 1100 mAh NiCd battery pack
Speaker microphone
Barometric pressure sensor unit
Desktop rapid charger (120 VAC)
Desktop rapid charger (240 VAC)
