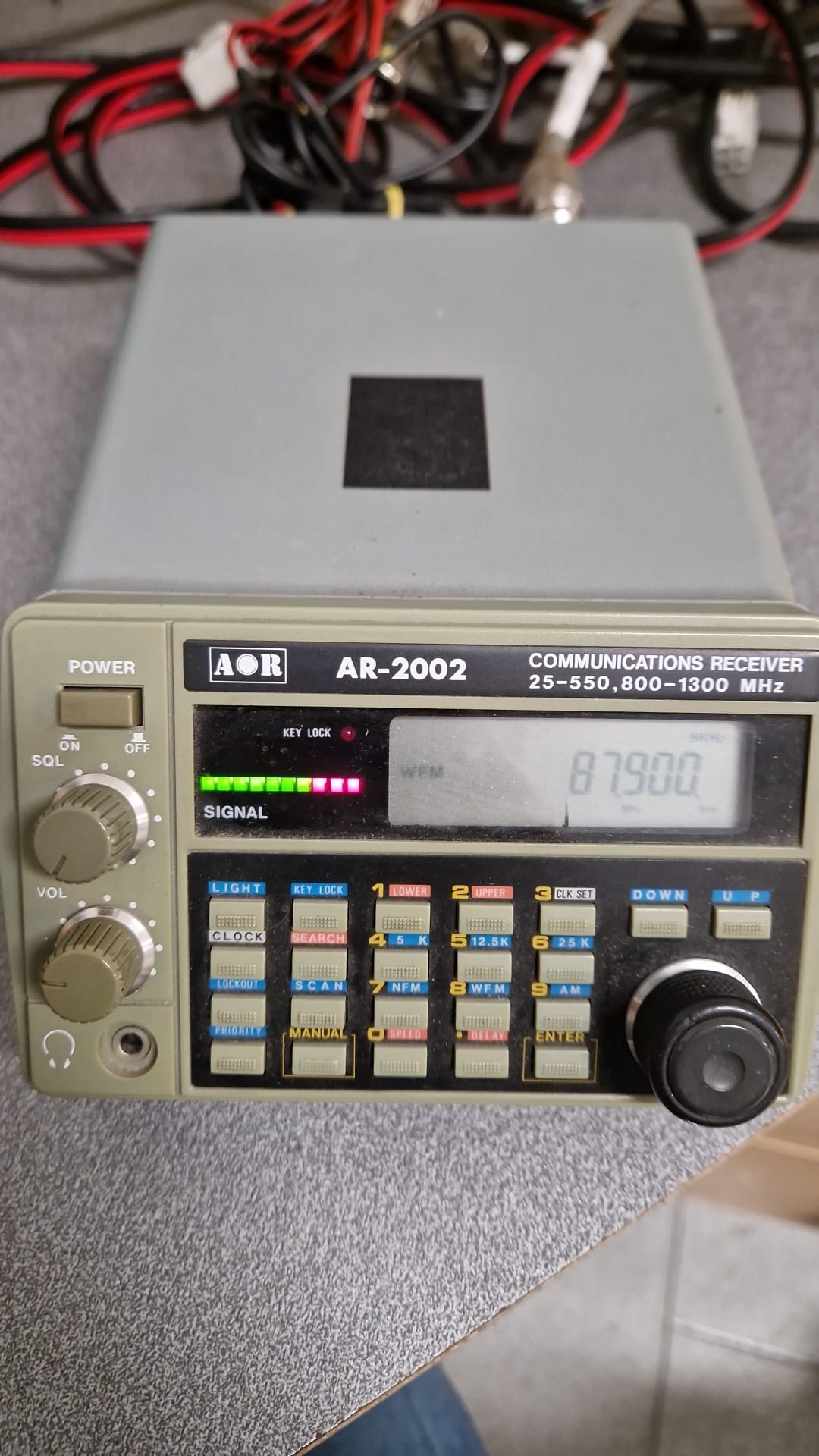

AOR AR-2002 RICEVITORE 25-550 / 800-1300 MHz AM/FM
Perfetto stato estetico/elettronico, molto raro
SPECIFICATIONS
|
GENERAL
|
|
Type:
|
HF/VHF/UHF receiver/scanner |
|
Frequency range:
|
25-550 / 800-1300 MHz |
|
Tuning steps:
|
5 / 12.5 / 25 KHz |
|
Frequency stability:
|
±10 ppm @ 25°C (77°F) |
|
Mode:
|
AM / FM / WFM |
|
Channels / memory management:
|
20 regular @ 5 ch/second
2 scan edges
1 priority
RAM storage with supercap backup
|
|
Power supply:
|
12-14 VDC |
|
Current drain / power consumption:
|
Less than 600 mA |
|
Antenna impedance / connector:
|
50 ohm / BNC |
|
Dimensions (W*H*D):
|
138*80*200 mm (5.43*3.15*7.87") |
|
Weight:
|
1.2 Kg (2.64 lb) |
|
Other features:
|
10 dB attenuator. Clock. |
|
|
|
|
|
RECEIVER SECTION
|
|
Receiver system:
|
Triple conversion superheterodyne (25-550 MHz)
1st IF: 750 MHz
2nd IF: 45.03 MHz
3rd IF: 5.5 MHz (WFM), 455 KHz (AM/FM)
|
|
Sensitivity:
|
AM: 0.5 uV (10 dB S/N)
FM: 0.3 uV (12 dB SINAD)
WFM: 1 uV (12 dB SINAD)
|
|
Selectivity:
|
AM:
10 KHz (-6 dB)
20 KHz (-70 dB)
FM:
15 KHz (-6 dB)
40 KHz (-70 dB)
WFM:
100 KHz (-6 dB)
500 KHz (-60 dB)
|
|
Image rejection:
|
50 dB |
|
AF output power / speaker:
|
1 W at 10% distortion / ? ohm |
|
External speaker connector:
|
3.5 mm |
|
|
|
|
|
MISCELLANEOUS
|
|
Manufactured:
|
Japan, 1985-1989 (Discontinued) |
|
Additional info:
|
New price 1985 in Sweden: SEK 4595:- |
|
Related documents:
|
User manual (373 KB)
Service manual (12.3 MB)
CPU: uPD7503
PLL: µPD2833C
FM-IF: MC3357
|
|
Modifications and fixes:
|
|
|
Reviews:
|
|
|
Options / Accessories:
|
DA-300
MM-1
RC Pack
|
External antenna
Mobile mount bracket
Remote control unit (RS-232C)
|
|
Ricevitore scanner AOR qualche segno del tempo, ma perfettamente funzionante.
Verrà spedito con imballo adeguato.
SPECIFICATIONS
|
GENERAL
|
|
Type:
|
HF/VHF/UHF receiver/scanner
|
|
Frequency range:
|
0.1-2036 MHz
|
|
Tuning steps:
|
Any 50 Hz increment between 50 Hz to 100 KHz
|
|
Frequency stability:
|
? ppm
|
|
Mode:
|
AM / FM / WFM / SSB / CW
|
|
Channels / memory management:
|
400 regular in 4 banks @ 20 ch/second
4 priority
4 search ranges
RAM storage with lithium battery backup (CR-2032, solder type)
|
|
Power supply:
|
12-14 VDC (3-pin connector)
|
|
Current drain / power consumption:
|
Max 500 mA
|
|
Antenna impedance / connector:
|
50 ohm / BNC
|
|
Dimensions (W*H*D):
|
138*80*200 mm (5.43*3.15*7.87")
|
|
Weight:
|
1.2 Kg (2.65 lb)
|
|
Other features:
|
RS-232C. Clock/Timer. Attenuator.
|
|
|
|
|
|
|
|
RECEIVER SECTION
|
|
Receiver system:
|
Triple conversion superheterodyne (AM/FM/SSB/CW)
1st IF: ? MHz
2nd IF: ? MHz
3rd IF: ? KHz
Quadruple conversion superheterodyne (WFM)
1st IF: ? MHz
2nd IF: ? MHz
3rd IF: ? KHz
4th IF: ? KHz
|
|
Sensitivity:
|
|
|
Selectivity:
|
AM/FM:
12 KHz (-6 dB)
25 KHz (-70 dB)
WFM:
180 KHz (-6 dB)
800 KHz (-50 dB)
SSB/CW:
2.4 KHz (-6 dB)
4.5 KHz (-60 dB)
|
|
Image rejection:
|
|
|
AF output power / speaker:
|
1.2 W at 10% distortion / 4 ohm
|
|
External speaker connector:
|
3.5 mm, 4-8 ohm
|
|
|
|
|
|
|
|
MISCELLANEOUS
|
|
Manufactured:
|
Japan, 1989-1991 (Discontinued)
|
|
Additional info:
|
New price 1989 in Sweden: SEK 9700:-
|
|
Related documents:
|
User manual (235 KB)
|
|
Modifications and fixes:
|
|
|
Reviews:
|
|
|
Options / Accessories:
|
ACEPAC-3
Searchlight
|
Computer control software (MS-DOS)
Computer control software (Windows 3.1/3.11/95)
|
|
Tutto il NOSTRO USATO, prima di essere messo in vendita, viene testato con apparecchiature professionali, e pulito ed igienizzato a fondo, non come altri che pubblicano solo "foto" pervenute, e vendono quelle....
- TEST SET 0-500 MHZ RODE & SCHWARZ SMFP2 per prove RX/TX HF-VHF-UHF e Marconi
- DAIWA CN-901HP3 1.8-200 MHZ 3KW PEP con carico HEATHKIT 3 KW in bagno d'olio
- DAIWA CN-901V 140-450 MHZ con carico RADIOSYSTEM 96610-1
- YAESU FT897D CON TXCO per prove allineamento emissioni SSB HF-VHF-UHF e frequenza
Ogni apparecchio USATO,viene sottoposto ad ulteriore verifica prima della spedizione.
TUTTO IL NOSTRO USATO GODE DI 12 MESI DI GARANZIA SCRITTA.
