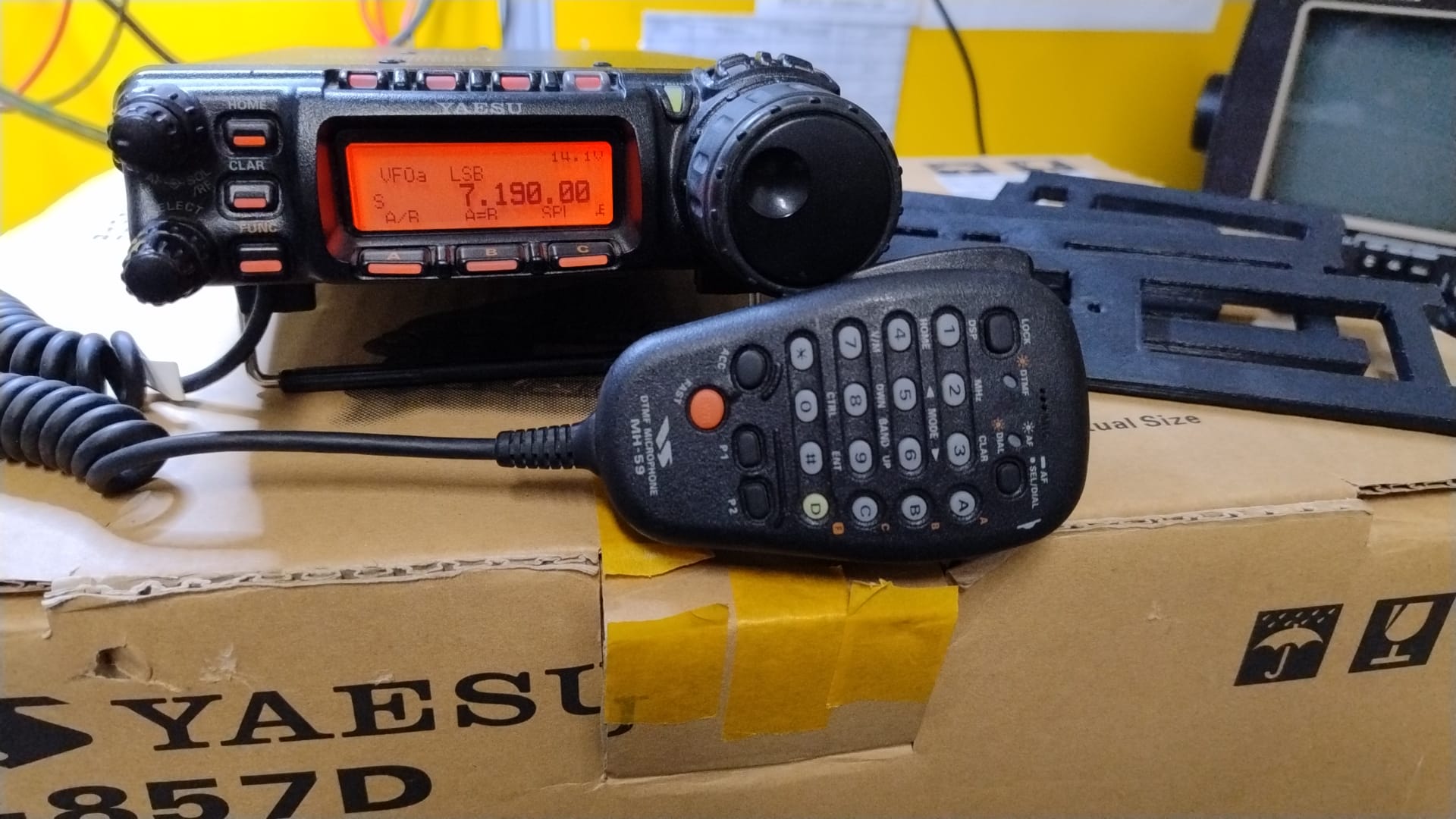

YAESU FT-857D QUADRIBANDA HF/50/VHF/UHF PERFETTO STATO CON STAFFE LATERALI ED IMBALLO
YAESU FT-857D QUADRIBANDA HF/50/144/430, in perfetto stato.
Già ampliato di banda, con Display nuovo
appena sostituito dal nostro laboratorio.
In dotazione: staffette laterali, come si evince in foto mai montate, cavo alimentazione, microfono MH59 con tastiera DTMF ed imballo originale.
SPECIFICATIONS
|
GENERAL
|
|
Type:
|
Amateur HF/VHF/UHF transceiver |
|
Frequency range:
|
TX: 10-160 m + WARC and 60 m / 6 m / 2 m / 70 cm
RX: 0.1-76 / 118-164 / 420-470 MHz
|
|
Tuning steps:
|
10 / 20 / 100 / 200 Hz, 2.5 / 5 / 6.25 / 9 / 10 / 12.5 / 15 / 20 / 25 / 50 KHz
|
|
Frequency stability:
|
±4 ppm @ 25°C (77°F) during the first 60 minutes after power on
1 ppm / hour thereafter
±0.5 ppm option (TCXO-9)
|
|
Mode:
|
TX: AM / FM / NFM / SSB / CW
RX: AM / FM / NFM / SSB / CW / WFM
|
|
Channels / memory management:
|
200 regular with alpha tags
4 home
5 scan edge pairs (PMS)
Priority function
1 QMB
Non-volatile EEPROM storage
|
|
Repeater shift / offset:
|
±0-99.99 MHz |
|
Power supply:
|
13.8 VDC ±15% (6-pin Molex connector on pigtail) |
|
Current drain / power consumption:
|
RX: 0.55-1 A
TX: Max 22 A
|
|
Antenna impedance / connector:
|
50 ohm / One SO-239 and one N-jack (Europe) or two SO-239 (USA)
|
|
Dimensions (W*H*D):
|
155*52*233 mm (6.1*2.05*9.17") |
|
Weight:
|
2.1 Kg (4.63 lb) |
|
Other features:
|
CTCSS/PL and DCS with tone search. Built-in keyer. Beacon mode.
Spectrum scope monitor. Detachable front panel. CW trainer.
32 color display. Dimmer. CAT control. Beacon feature. Cloning.
Attenuator (10 dB). NB. ARS. ARTS. 1K2 / 9K6 packet jack.
DSP is standard in this updated version.
|
|
|
|
|
|
RECEIVER SECTION
|
|
Receiver system:
|
Single conversion superheterodyne (WFM)
IF: 10.7 MHz
Double conversion superheterodyne (AM/FM/NFM/SSB/CW)
1st IF: 68.33 MHz
2nd IF: 455 KHz
|
|
Sensitivity:
|
AM (10 dB S/N)
0.1-1.8 MHz: 32 uV
1.8-30 MHz: 2 uV
50-54 MHz: 1 uV
FM (12 dB SINAD)
28-30 MHz: 0.5 uV
50-54 MHz: 0.2 uV
2 m: 0.2 uV
70 cm: 0.2 uV
SSB/CW (10 dB S/N)
1.8-30 MHz: 0.2 uV
50-54 MHz: 0.125 uV
2 m: 0.125 uV
70 cm: 0.125 uV
|
|
Selectivity:
|
AM:
6 KHz (-6 dB)
20 KHz (-60 dB)
FM:
15 KHz (-6 dB)
30 KHz (-60 dB)
NFM:
9 KHz (-6 dB)
25 KHz (-60 dB)
SSB/CW:
2.2 KHz (-6 dB)
4.5 KHz (-60 dB)
SSB (With optional YF-122S):
2.3 KHz (-6 dB)
4.7 KHz (-60 dB)
CW-N (With optional YF-122C):
500 Hz (-6 dB)
2 KHz (-60 dB)
CW-N (With optional YF-122CN):
300 Hz (-6 dB)
1 KHz (-60 dB)
|
|
Image rejection:
|
HF/6 m: 70 dB
2 m/70 cm: 60 dB
|
|
AF output power / speaker:
|
2.5 W at 10% distortion / 4 ohm |
|
External speaker connector:
|
3.5 mm, 4-16 ohm |
|
|
|
|
|
TRANSMITTER SECTION
|
|
RF output power:
|
|
HF |
6 m |
2 m |
70 cm |
|
AM:
|
25 W |
25 W |
12.5 W |
5 W |
|
FM:
|
100 W |
100 W |
50 W |
20 W |
|
SSB (PEP):
|
100 W |
100 W |
50 W |
20 W |
|
CW:
|
100 W |
100 W |
50 W |
20 W |
|
|
Modulation system:
|
AM: Early stage (Low level)
FM: Variable reactance
SSB: Balanced modulator
|
|
Max FM deviation (Factory set):
|
FM: ±5 KHz
NFM: ±2.5 KHz
|
|
Spurious emissions:
|
HF: Better than -50 dB
VHF/UHF: Better than -60 dB
|
|
Microphone impedance / connector:
|
200 ohm to 10 Kohm (600 ohm nominal) / 8-pin (Modular) |
|
Microphone input level:
|
? mV |
|
|
|
|
|
MISCELLANEOUS
|
|
Manufactured:
|
Japan, 2004-201x (Discontinued) |
|
Additional info:
|
|
|
Related documents:
|
User manual (4.9 MB)
Service manual v2018 (25.8 MB)
|
|
Modifications and fixes:
|
Flickering squelch problem (194 KB)
Modification collection (1.2 MB)
|
|
Reviews:
|
|
|
Options / Accessories:
|
ATAS-25
ATAS-120A
ATBK-100
CT-39A
CT-58
CT-62
FC-30
FP-1030A
MD-200A8X
MH-31A8J
MH-36E8J
MH-59A8J
MMB-82
TCXO-9
VL-1000
YF-122C
YF-122CN
YF-122S
YSK-857
|
Active-tuning antenna system
Active-tuning antenna system
VHF/UHF antenna base/counterpoise system
Packet cable
Band data cable
CAT interface cable
External automatic antenna tuner
AC power supply
Desk microphone
Hand microphone
Hand microphone with DTMF keypad
Remote control microphone
Mobile mounting bracket
TCXO unit. ±0.5 ppm
Linear amplifier
Collins CW narrow filter. 500 Hz
Collins CW narrow filter. 300 Hz
Collins SSB filter. 2.3 KHz
Separation kit
|
|
Tutto il NOSTRO USATO, prima di essere messo in vendita, viene testato con apparecchiature professionali, e pulito ed igienizzato a fondo, non come altri che pubblicano solo "foto" pervenute, e vendono quelle....
- TEST SET 0-500 MHZ RODE & SCHWARZ SMFP2 per prove RX/TX HF-VHF-UHF e Marconi
- DAIWA CN-901HP3 1.8-200 MHZ 3KW PEP con carico HEATHKIT 3 KW in bagno d'olio
- DAIWA CN-901V 140-450 MHZ con carico RADIOSYSTEM 96610-1
- YAESU FT897D CON TXCO per prove allineamento emissioni SSB HF-VHF-UHF e frequenza
Ogni apparecchio USATO,viene sottoposto ad ulteriore verifica prima della spedizione.
TUTTO IL NOSTRO USATO GODE DI 12 MESI DI GARANZIA SCRITTA.
Acquista il tuo usato in tutta sicurezza dalla mediaglobe electronics, per pochi euro di differenza dai prezzi proposti dai venditori "privati" potrai dormire sogni tranquilli. Migliaia di clienti soddisfatti negli anni possono confermare.
