ICOM IC-E2820 VHF/UHF
ANALOGICA/DSTAR
PERFETTO STATO

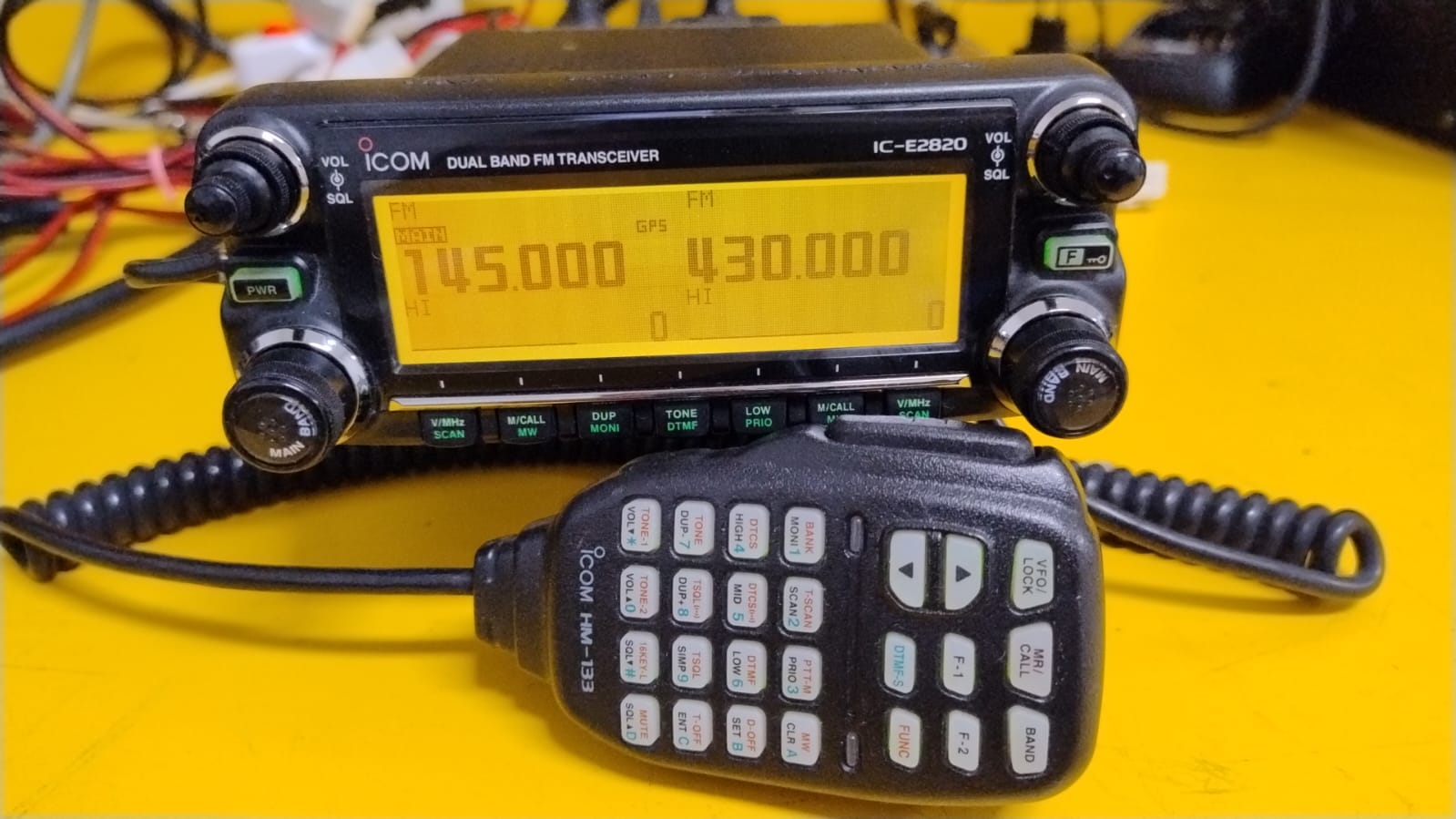

Icom IC-e2820 in perfetto stato completa di
modulo d-star, antenna GPS, cavo di programmazione,
2 cavi collegamento frontalino (uno corto e l'altro
lungo), staffa radio e staffa frontalino, cavo alimentazione e microfono originale.
Gia' aperto di banda e con imballo originale
SPECIFICATIONS
|
GENERAL
|
|
Type:
|
Amateur VHF/UHF transceiver |
|
Frequency range:
|
Europe
TX: 144-146 / 430-440 MHz
RX: 118-550 / 810-999.99 MHz
|
|
Tuning steps:
|
5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
|
Frequency stability:
|
±2.5 ppm @ -10 to +60°C (14 to 140°F) |
|
Mode:
|
TX: FM / FM-N (DV-option)
RX: AM / FM / FM-N (DV option)
|
|
Channels / memory management:
|
500 regular with alpha tags
10 scan edge pairs
2 call
Priority watch
Non volatile EEPROM storage
|
|
Repeater shift / offset:
|
Programmable |
|
Power supply:
|
13.8 VDC ±15% |
|
Current drain / power consumption:
|
RX: 1.2-1.8 A
TX: Max 13 A
|
|
Antenna impedance / connector:
|
50 ohm / Two SO-239 |
|
Dimensions (W*H*D):
|
Main unit: 150*40*188 mm (5.91*1.58*7.4")
Controller: 150*58*32 mm (5.91*2.28*1.26")
|
|
Weight:
|
Main unit: 1.5 Kg (3.31 lb)
Controller: 210 g (7.41 oz)
|
|
Other features:
|
DTMF. CTCSS/PL. DV/GPS option (UT-123). Diversity reception.
Twin RX with V/V and U/U reception.
|
|
|
|
|
|
RECEIVER SECTION
|
|
Receiver system:
|
Double conversion superheterodyne
1st IF: 38.85 MHz (Left band), 46.35 MHz (Right band)
2nd IF: 450 KHz (Left and right band)
|
|
Sensitivity:
|
FM: <0.18 uV (12 dB SINAD)
DV (Optional): 0.35 uV (BER 1%)
|
|
Squelch sensitivity:
|
Less than 0.13 uV (Threshold) |
|
Noise figure:
|
|
|
Selectivity:
|
FM
10 KHz (-6 dB)
30 KHz (-60 dB)
FM-N
6 KHz (-6 dB)
20 KHz (-60 dB)
|
|
Image rejection:
|
>60 dB |
|
AF output power / speaker:
|
2.4 W at 10% distortion / 8 ohm |
|
External speaker connector:
|
TRS "Minijack" (3.5 mm) |
|
|
|
|
|
TRANSMITTER SECTION
|
|
RF output power:
|
|
High |
Mid |
Low |
|
2 m:
|
50 W |
15 W |
5 W |
|
70 cm:
|
50 W |
15 W |
5 W |
|
|
Modulation system:
|
Variable reactance frequency modulation |
|
Max FM deviation (Factory set):
|
FM: ±5 KHz
NFM: ±2.5 KHz
|
|
Spurious emissions:
|
Better than -60 dB |
|
Microphone impedance / connector:
|
600 ohm / 8-pin (modular) |
|
Microphone input level:
|
? mV |
|
|
|
|
|
MISCELLANEOUS
|
|
Manufactured:
|
Japan, 2007-2014 (Discontinued) |
|
Additional info:
|
New price 2007 in Sweden: SEK 7000:-. |
|
Related documents:
|
User manual (2.2 MB)
Service manual (6.9 MB)
|
|
Modifications and fixes:
|
|
|
Reviews:
|
|
|
Options / Accessories:
|
CS-2820
HM-133
HM-154
MB-65
OPC-347
OPC-440
OPC-441
OPC-474
OPC-478
OPC-478U
OPC-1132
OPC-1529R
OPC-1663
OPC-1712
SP-10
UT-123
|
Cloning software
Backlit remote-control microphone (Same as supplied)
Hand microphone
Control head mounting base
DC power cable. 7 m (23 ft)
Mic extension cable. 5 m (16.4 ft)
Speaker extension cable. 5 m (16.4 ft)
Cloning cable (between transceivers)
Cloning cable (RS232, for PC)
Cloning cable (USB, for PC)
DC power cable. 3 m (9.8 ft). Same as supplied
Data communication cable (For data transfer in DV mode and cloning to PC)
Separation cable. 3.4 m (11.2 ft). Same as supplied
Controller cable for single body installation. 10 cm (3.94"). Same as supplied
External speaker
DV (D-Star) and GPS unit
|
|
Tutto il NOSTRO USATO, prima di essere messo in vendita, viene testato con apparecchiature professionali, e pulito ed igienizzato a fondo, non come altri che pubblicano solo "foto" pervenute, e vendono quelle....
- TEST SET 0-500 MHZ RODE & SCHWARZ SMFP2 per prove RX/TX HF-VHF-UHF e Marconi
- DAIWA CN-901HP3 1.8-200 MHZ 3KW PEP con carico HEATHKIT 3 KW in bagno d'olio
- DAIWA CN-901V 140-450 MHZ con carico RADIOSYSTEM 96610-1
- YAESU FT897D CON TXCO per prove allineamento emissioni SSB HF-VHF-UHF e frequenza
Ogni apparecchio USATO,viene sottoposto ad ulteriore verifica prima della spedizione.
TUTTO IL NOSTRO USATO GODE DI 12 MESI DI GARANZIA SCRITTA.
Acquista il tuo usato in tutta sicurezza dalla mediaglobe electronics, per pochi euro di differenza dai prezzi proposti dai venditori "privati" potrai dormire sogni tranquilli. Migliaia di clienti soddisfatti negli anni possono confermare.
