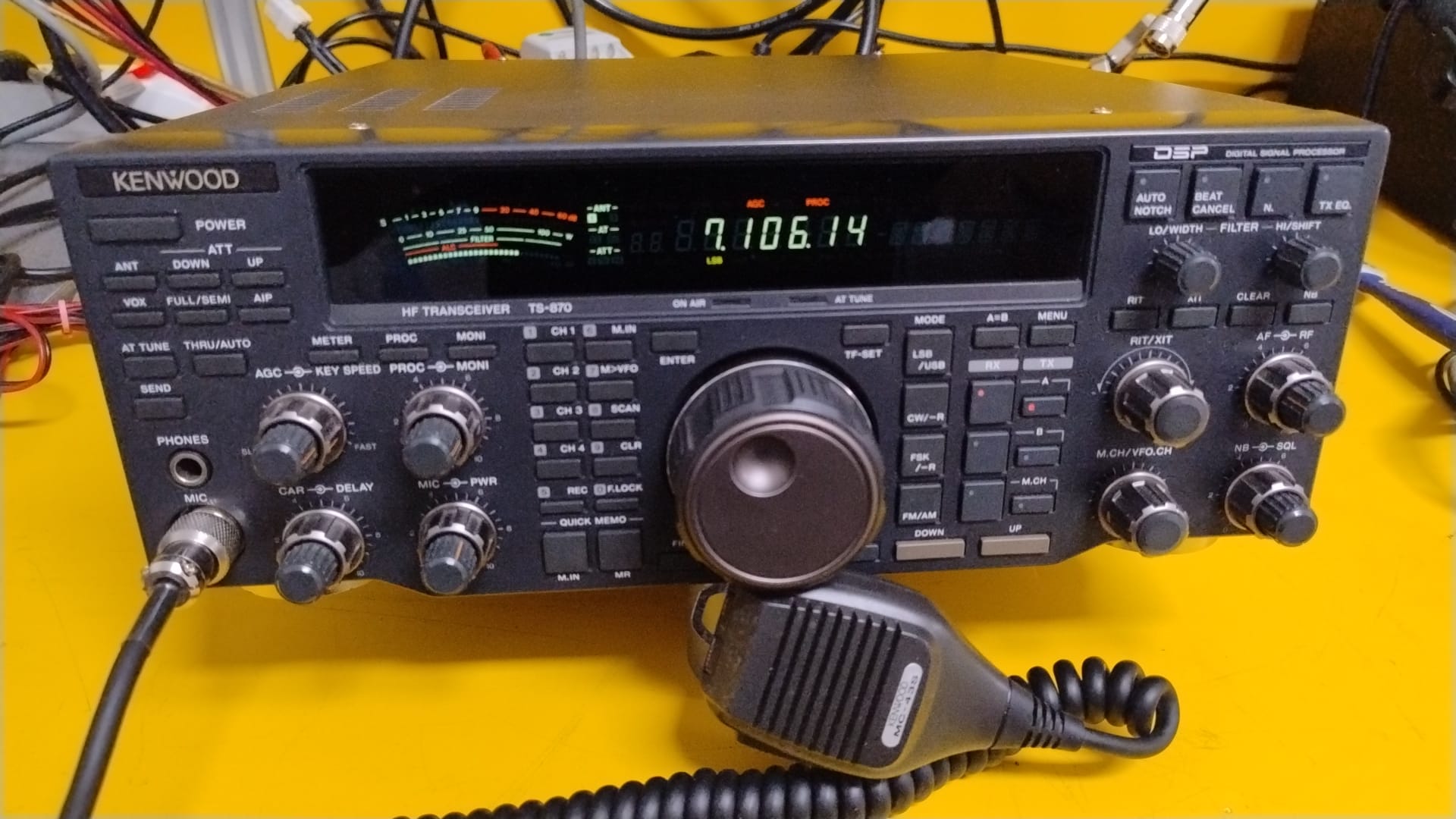

KENWOOD TS-870S
HF 0-30MHZ ALL MODE
CON ACCORDATORE D'ANTENNA
PERFETTO STATO
Kenwood TS-870s HF 0-30mhz ALL-MODE
Aperto di banda
completo di cavo alimentazione, microfono originale
e manuale in PDF.
Manca imballo originale ma ne verrà creato uno a prova di corrieri maldestri.
SPECIFICATIONS
|
GENERAL
|
|
Type:
|
Amateur HF transceiver |
|
Frequency range:
|
TX: 10-160 m + WARC
RX: 0.1-30 MHz
|
|
Tuning steps:
|
1 / 10 / 100 Hz
1 / 5 / 10 / 100 / 500 KHz
1 MHz
|
|
Frequency stability:
|
±10 ppm @ -10 to +50°C (14 to 122°F)
±0.5 ppm with optional SO-2
|
|
Mode:
|
AM / FM / SSB / CW / FSK |
|
Channels / memory management:
|
99 regular
1 scan limit pair
5 quick memory
RAM storage with lithium battery backup
|
|
Repeater shift / offset:
|
No dedicated. Use VFO A/B split instead |
|
Power supply:
|
13.8 VDC ±15% (6-pin Molex) |
|
Current drain / power consumption:
|
RX: 2 A
TX: Max 20.5 A
|
|
Antenna impedance / connector:
|
50 ohm (20-150 ohm with ATU) / Two SO-239 |
|
Dimensions (W*H*D):
|
330*120*334 mm (13*4.72*13.1") |
|
Weight:
|
11.5 Kg (25 lb) |
|
Other features:
|
CTCSS/PL. Built-in memory keyer and ATU. IF-DSP. |
|
|
|
|
|
RECEIVER SECTION
|
|
Receiver system:
|
Quadruple conversion superheterodyne
1st IF: 73.05 MHz
2nd IF: 8.83 MHz
3rd IF: 455 KHz
4th IF: 11.308 KHz
|
|
Sensitivity:
|
SSB/CW/FSK:
0.1-0.5 MHz: <1 uV
0.5-1.705 MHz: 4 uV
1.705-30 MHz: 0.13 uV
FM (12 dB SINAD)
28-30 MHz: 0.25 uV
|
|
Selectivity:
|
AM, Lo 100 Hz, Hi 4000 Hz:
9 KHz (-6 dB)
12 KHz (-60 dB)
FM, width 14 KHz:
14 KHz (-6 dB)
18 KHz (-60 dB)
SSB, Lo 300 Hz, Hi 2600 Hz:
2.3 KHz (-6 dB)
3.3 KHz (-60 dB)
CW, width 200 Hz:
200 Hz (-6 dB)
450 Hz (-60 dB)
FSK, width 500 Hz:
500 Hz (-6 dB)
1 KHz (-60 dB)
|
|
Image rejection:
|
1.8-30 MHz 80 dB |
|
AF output power / speaker:
|
1.5 W at 10% distortion / 8 ohm |
|
External speaker connector:
|
3.5 mm |
|
|
|
|
|
TRANSMITTER SECTION
|
|
RF output power:
|
|
AM:
|
25 W |
|
FM:
|
100 W |
|
SSB (PEP):
|
100 W |
|
CW/FSK:
|
100 W |
|
|
Modulation system:
|
AM: Low level
FM: Reactance
SSB: Balanced
|
|
Max FM deviation (Factory set):
|
Wide: ±5 KHz
Narrow: ±2.5 KHz
|
|
Spurious emissions:
|
Better than -60 dB |
|
Microphone impedance / connector:
|
600 ohm / 8-pin (Metal locking ring connector) |
|
Microphone input level:
|
? mV |
|
|
|
|
|
MISCELLANEOUS
|
|
Manufactured:
|
Japan, 1995-2004 (Discontinued) |
|
Additional info:
|
New price 1995 in Sweden: SEK 28828:-
New price 1996 in Sweden: SEK 22500:-
|
|
Related documents:
|
User manual (2.7 MB)
|
|
Modifications and fixes:
|
|
|
Reviews:
|
|
|
Options / Accessories:
|
AT-300
DRU-3
HS-5
HS-6
IF-232C
LF-30A
MC_43S
MC-60A
MC-80
MC-85
MC-90
PC-1A
PG-2Z
PS-52
SM-230
SO-2
SP-31
SW-2100
VS-2
|
External automatic antenna tuner
Digital recording unit
Deluxe headphones
Small headphones
Interface unit
Low-pass filter
Standard hand microphone with up/down buttons
Deluxe desk microphone
Desk microphone
Multi-function desk microphone
DSP-compatible desk microphone
Phone patch controller
DC cable
Heavy duty PSU. 13.8 VDC, 22.5 A
Station monitor
TCXO unit. 20 MHz. ±0.5 ppm
External speaker
SWR/Power meter
Voice synthesizer unit
|
|
Tutto il NOSTRO USATO, prima di essere messo in vendita, viene testato con apparecchiature professionali, e pulito ed igienizzato a fondo, non come altri che pubblicano solo "foto" pervenute, e vendono quelle....
- TEST SET 0-500 MHZ RODE & SCHWARZ SMFP2 per prove RX/TX HF-VHF-UHF e Marconi
- DAIWA CN-901HP3 1.8-200 MHZ 3KW PEP con carico HEATHKIT 3 KW in bagno d'olio
- DAIWA CN-901V 140-450 MHZ con carico RADIOSYSTEM 96610-1
- YAESU FT897D CON TXCO per prove allineamento emissioni SSB HF-VHF-UHF e frequenza
Ogni apparecchio USATO,viene sottoposto ad ulteriore verifica prima della spedizione.
TUTTO IL NOSTRO USATO GODE DI 12 MESI DI GARANZIA SCRITTA.
Acquista il tuo usato in tutta sicurezza dalla mediaglobe electronics, per pochi euro di differenza dai prezzi proposti dai venditori "privati" potrai dormire sogni tranquilli. Migliaia di clienti soddisfatti negli anni possono confermare.
