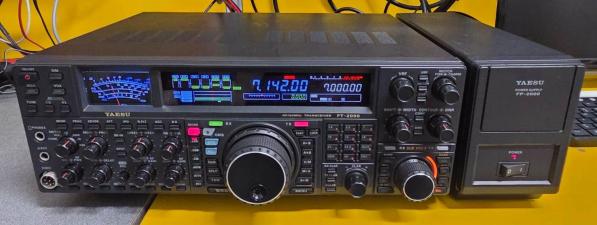

GENERAL
|
|
Type:
|
Amateur HF/VHF transceiver |
|
Frequency range:
|
TX: 10-160 m + WARC / 50-54 MHz
RX: 0.03-60 MHz
|
|
Tuning steps:
|
1 / 5 / 10 Hz (AM/SSB/CW)
100 Hz (FM)
|
|
Frequency stability:
|
±0.5 ppm @ 25°C (77°F), after 1 minute warmup |
|
Mode:
|
AM / FM / SSB / CW / RTTY / Packet |
|
Channels / memory management:
|
99 regular
5 QMB
9 scan edge pairs (PMS)
Non-volatile EEPROM storage
(The antenna tuner memory requires a CR2032 lithium battery backup)
|
|
Repeater shift / offset:
|
10 m: 0-1 MHz in 10 KHz steps
6 m: 0-4 MHz in 10 KHz steps
|
|
Power supply:
|
50 and 13.8 VDC (From separate FP-2000 PSU) |
|
Current drain / power consumption:
|
RX: 80 VA (FP-2000 PSU)
TX: Max 720 VA (FP-2000 PSU)
|
|
Antenna impedance / connector:
|
50 ohm / Two SO-239 plus one RX only
(16.7-150 ohm HF and 25-100 ohm 6 m with ATU on)
|
|
Dimensions (W*H*D):
|
410*135*350 mm (16.1*5.3*13.8") |
|
Weight:
|
14.5 Kg (32 lb) |
|
Other features:
|
CTCSS/PL. CAT control. RF/LF scope. VRF preselector. High dynamic range front end.
Automatic antenna tuner. VOX. Transverter jacks. IF-DSP. Twin RX
|
|
|
|
|
|
RECEIVER SECTION
|
|
Receiver system:
|
Main: Triple conversion superheterodyne
1st IF: 69.45 MHz
2nd IF: 450 KHz
2nd IF: 30 KHz (24 KHz for AM/FM)
Sub: Double conversion superheterodyne
1st IF: 40.455 MHz
2nd IF: 455 KHz
|
|
Sensitivity:
|
AM (10 dB S/N, 6 KHz BW)
0.1-1.8 MHz: 6 uV
1.8-30 MHz: 2 uV
50-54 MHz: 1 uV
FM (12 dB SINAD)
28-30 MHz: 0.5 uV
50-54 MHz: 0.35 uV
SSB/CW (10 dB S/N, 2.4 KHz BW)
0.1-1.8 MHz: 2 uV
1.8-30 MHz: 0.2 uV
50-54 MHz: 0.125 uV
|
|
Selectivity:
|
Main (VFO-A). Width: Center. VRF: Off
|
Mode
|
-6 dB
|
-60 dB
|
| AM |
6 KHz |
15 KHz |
| FM |
15 KHz |
25 KHz |
| SSB |
2.4 KHz |
3.6 KHz |
| CW/RTTY/PKT |
500 Hz |
750 Hz |
Sub (VFO-B)
|
Mode
|
-6 dB
|
-60 dB
|
| AM |
6 KHz |
15 KHz |
| FM |
12 KHz |
30 KHz |
| SSB |
2.2 KHz |
4.5 KHz |
| CW/RTTY/PKT |
1.1 KHz |
3 KHz |
|
|
Image rejection:
|
70 dB (HF)
60 dB (6 m)
|
|
AF output power / speaker:
|
2.5 W at 10% distortion / 4 ohm |
|
External speaker connector:
|
3.5 mm, 4-8 ohm |
|
|
|
|
|
TRANSMITTER SECTION
|
|
RF output power:
|
|
HF |
6 m |
|
AM:
|
5-50 W |
5-50 W |
|
FM:
|
10-200 W |
10-200 W |
|
SSB (PEP):
|
10-200 W |
10-200 W |
|
SSB (Class A):
|
10-75 W |
10-75 W |
|
CW:
|
10-200 W |
10-200 W |
|
|
Modulation system:
|
AM: Low-level (Early stage)
FM: Variable reactance
SSB: Balanced
|
|
Max FM deviation (Factory set):
|
Normal: ±5 KHz
Narrow: ±2.5 KHz
|
|
Spurious emissions:
|
Better than -60 dB (HF/6 m) |
|
Microphone impedance / connector:
|
200 ohm to 10 Kohm (600 ohm nominal) / 8-pin (Metal locking ring connector)
|
|
Microphone input level:
|
? mV |
|
|
|
|
|
MISCELLANEOUS
|
|
Manufactured:
|
Japan, 2007-201x (Discontinued) |
|
Additional info:
|
|
|
Related documents:
|
User manual (7.7 MB)
CAT manual (379 KB)
|
|
Modifications and fixes:
|
|
|
Reviews:
|
|
|
Options / Accessories:
|
DMU-2000
FH-2
FP-2000
MD-100A8X
MD-200A8X
MH-31B8
RF u-tuning kit A
RF u-tuning kit B
RF u-tuning kit C
SP-2000
VL-1000
YF-122C
YF-122CN
YH-77STA
T9101556
|
Data management unit
Remote control keypad
External power supply (As supplied)
Desk microphone
Ultra-high fidelity desk microphone
Hand microphone
For 160 m band
For 80/40 m band
For 30/20 m band
External speaker with filters
Linear amplifier
Collins CW narrow filter. 500 Hz
Collins CW narrow filter. 300 Hz
Lightweight headphones
Antenna rotator connection cable
|
|
