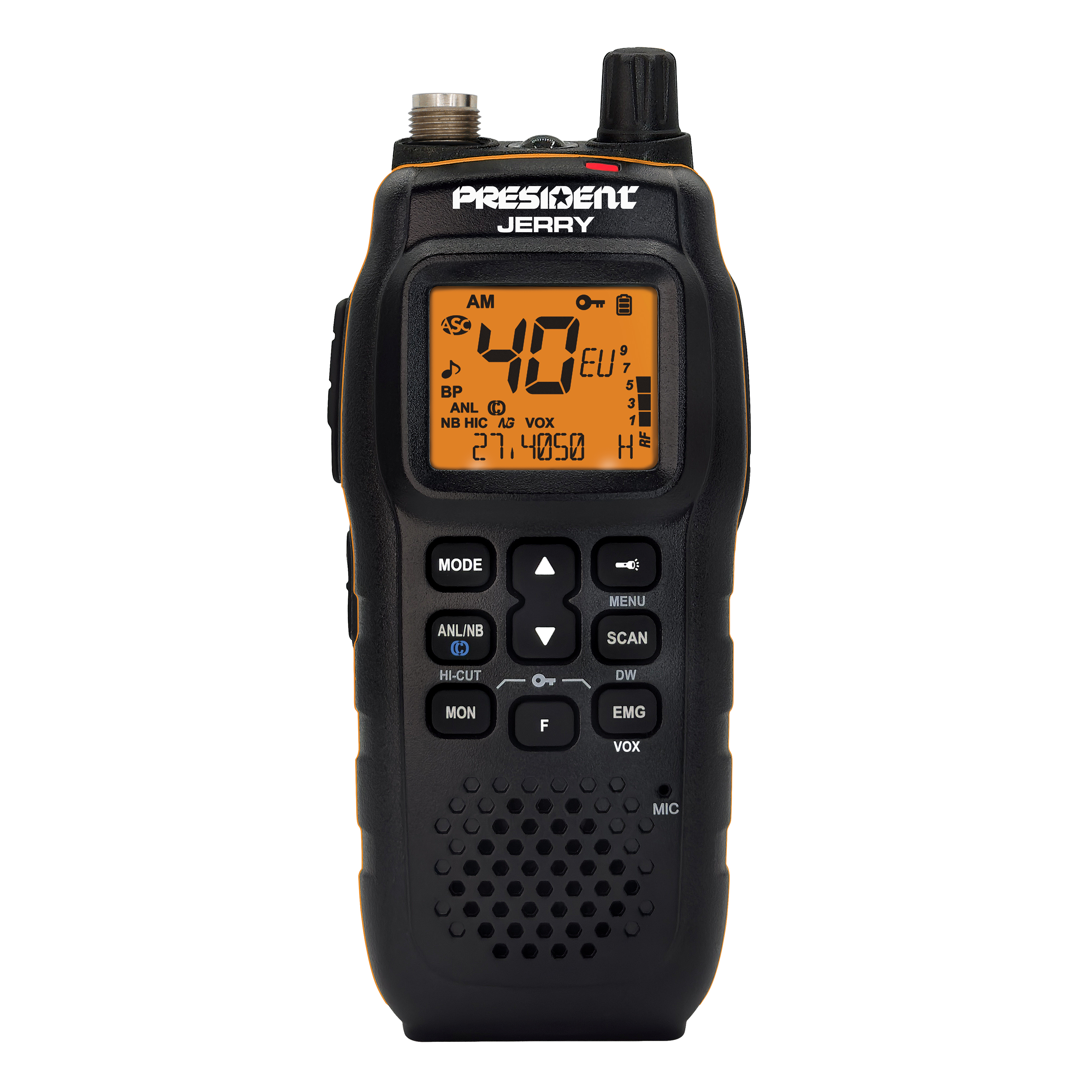

PRESIDENT JERRY
RICETRASMETTITORE CB PORTATILE AM/FM OMOLOGATO

Size (mm)  152 (H) x 66.5 (W) x 37 (D)
:Weight  305 g (with battery, without antenna)
:Flashlight (LED)
:Accessories supplied  1 Flexible antenna , battery Li-Ion , 1 Mobile adapter , 1 Fuse , User manual
:Antenna socket  S-20
:Antenna impedance  50 ohms
:Multiconfiguration  EU / U / D / PL / IN
:Number of channels  40
:Frequency ranges  from 26.965 MHz to 27.405 MHz
:Power supply  7.4 V (Handheld configuration) / 13.2 V (Mobile configuration)
:Microphone plug  jack Ø2.5
:Front loudspeaker
:External loudspeaker jack
:Loud speaker  16 ohms, 1 W
:Display  LCD multifunction
:Channel display
:Frequencies display
:S-meter  Digital
:Modulation modes  AM / FM
:Volume adjustment and ON/OFF
:Squelch  Manual squelch
:ASC
:Channel selector  Up / down
:Mode switch
:F / Menu function key
:Key Beep  , Switchable
:Roger beep  , Switchable , 6 tones
:Key locking
:Tone
:Channel preselection  2 , emergency channel (EMG) programmable
:Dual watch
:Scan  channels
:Scan Skip
:Vox
:TOT
:Filter ANL
:Filter NB
:Filter HI-CUT
:Noise Gate
:Monitor

TX:

Frequency allowance ± 200 Hz
:Carrier power 4 W (AM/FM)
:Transmission interference < 4 nW (-54 dBm)
:Audio response  300 Hz to 3 kHz
:Emitted power in the adj. channel < 20 µW
:Microphone sensitivity 7 mV
:Drain 1,8 A max.
:Modulated signal distortion 2%

RX:

Max. sensitivity at 20 dB sinad 0.5 µV - 113 dBm (AM) / 0.35 µV - 116 dBm (FM)
:Frequency response 300 Hz to 3 kHz
:Adjacent channel selectivity 60 dB
:Maximum audio power 1 W
:Squelch sensitivity min. 0.2 µV - 120 dBm / max. 1 mV - 47 dBm
:Frequency image rejection rate 60 dB
:Intermediate frequency rej. rate 70 dB
:Drain Mode ECO
