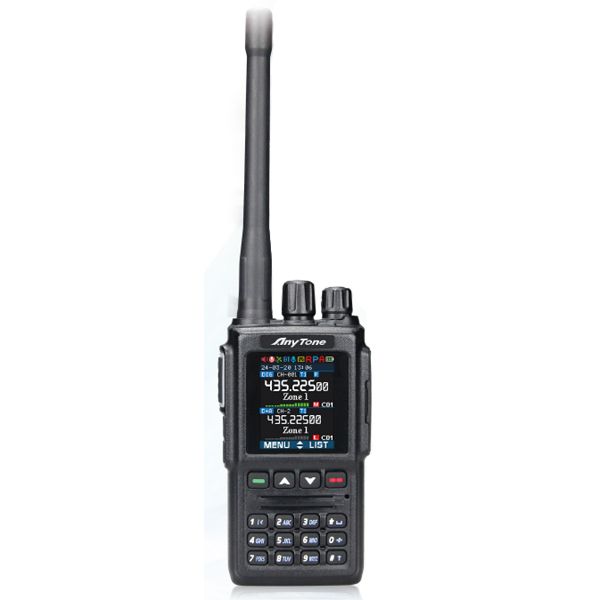

Anytone DMR AT-D168UV Radio Portatile digitale dmr analogica dual band
Differenze essenzialei rispetto al suo famoso fratello 878:
il modello AT-D168UV NON ha Gps, NON ha bluetooth, NON ha Aprs, ma ha NR Dsp, ha la porta C-USB direttamente sulla radio per la ricarica, ha REGISTRATORE Analogico/Digitale di 4 ore, ha il QDC1200, ed il satellite.
NB: nelle note dell'ordine, inserisci il tuo NOMINATIVO MINISTERIALE & ID-DMR,
cosi se vuoi, ti spediamo la radio gia programmata con CPS,con TUTTI (o quasi!) i ripetitore DMR ITALIANI, ESTENSIONE DI BANDA e relativa PROGRAMMAZIONE ITALIA con LISTA NOMINATIVI MONDIALI
IN PIU', potrai INDICARCI un PAIO di RIPETITORI DMR CHE MAGGIORMENTE UTILIZZI in modo da personalizzare al meglio il TUO ANYTONE 878 UVII PLUS
CARATTERISTICHE TECNICHE
• True-2-slot: Provide 2-slot communication which allows for 2 talk paths on 1 frequency; ETSI DMR Tier I and ll compliant
• Power 4W/2W/1W/0.1W
• Auto-senses digital or analog recepton
• 256 channels+ VFO, Voice prompting
• Support Contact Manager
• Bandwidth: 12.5K/25K (Analog 12.5K(DMR)
• Fixed and defined CTCSS/DCS encode and decode
• DIMF/2TONES/5TONE encode and decode
• Four diferent Tone pluse frequencies
• Individual/Group/All call
• Icon indicator or Voice prompt when connecting with repeater
• Zone selecton
• ANI functon and PIT ID: VOX: Digital Record ng and play
• Earphone: KENWOOD connector:
• Battery:3.7V 260OmAh Polymer battery
3.7V 5200mAh Li-ion battery(optional)
SPECIFICHE TECNICHE
|
General
|
|
Frequency Range
|
136-174MHz (V) , 400-480MHz (U)
|
|
Channel Capacity
|
4000 channels
|
|
Channel Spacing
|
25KHz (Wide Band) 12.5KHz (Narrow Band)
|
|
Phase-locked Step
|
5KHz, 6.25KHz
|
|
Operating Voltage
|
7.4V DC ±20% (2100mAh)
|
|
Frequency Stability
|
±2.0ppm
|
|
Operating Temperature
|
-20?~ +55?
|
|
Size
|
129×61×39mm (with battery pack)
|
|
Weight
|
282g (with battery pack, antenna)
|
|
Transmitting Part
|
|
Power Output
|
VHF: 7/5/2.5/1W, UHF: 6/5/2.5/1W
|
|
Modulation limit
|
±5.0KHz@25KHz (Wide Band) ±2.5KHz@12.5KHz (Narrow Band)
|
|
Adjacent Channel Power
|
≥70dB (Wide Band) ≥60dB (Narrow Band)
|
|
Hum & Noise
|
≥40dB (Wide Band) ≥36dB (Narrow Band)
|
|
Spurious Emission
|
≤-36dB (Wide Band) ≤-36dB (Narrow Band)
|
|
4FSK Digital Modulation
|
12.5KHz(data)7K60FXD 12.5KHz(data+voice)7K60FXE
|
|
Audio Distortion
|
≤5%
|
|
Error rate
|
≤3%
|
|
Receiving Part
|
|
Sensitivity (12dB SINAD)
|
≤0.25µV (Wide Band) ≤0.35µV (Narrow Band)
|
|
Digital Sensitivity
|
0.3uV/-117.4dBm (BER 5%) 0.7uV/-110dBm (BER 1%)
|
|
Adjacent Channel Selectivity
|
≥70dB (Wide Band) ≥60dB (Narrow Band)
|
|
Spurious Emission
|
≤-57dB (Wide Band) ≤-57dB (Narrow Band)
|
|
Spurious Rejection
|
≥70dB (Wide Band) ≥70dB (Narrow Band)
|
|
Blocking
|
84db
|
|
Hum & Noise
|
≥45dB (Wide Band) ≥40dB (Narrow Band)
|
|
Audio Distortion
|
≤5%
|
|
Audio Power Output
|
1000mW/16O
|
|
