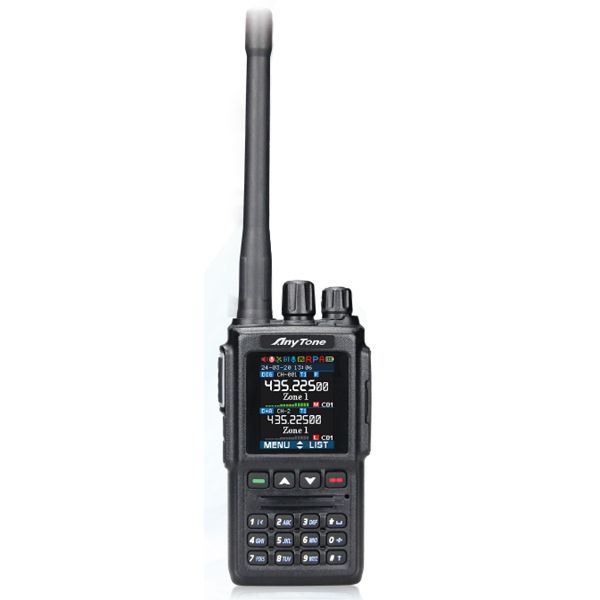

Anytone DMR AT-D168UV Radio Portatile digitale dmr analogica dual band

Differenze essenzialei rispetto al suo famoso fratello 878:
il modello AT-D168UV NON ha Gps, NON ha bluetooth, NON ha Aprs,  ma ha NR Dsp, ha la porta C-USB direttamente sulla radio per la ricarica, ha REGISTRATORE Analogico/Digitale di 4 ore, ha il QDC1200, ed il satellite.
NB: nelle note dell'ordine, inserisci il tuo NOMINATIVO MINISTERIALE & ID-DMR,
cosi se vuoi, ti spediamo la radio gia programmata con CPS,con TUTTI (o quasi!) i ripetitore DMR ITALIANI, ESTENSIONE DI BANDA e relativa PROGRAMMAZIONE ITALIA con LISTA NOMINATIVI MONDIALI
IN PIU', potrai INDICARCI un PAIO di  RIPETITORI DMR CHE MAGGIORMENTE UTILIZZI in modo da personalizzare al meglio il TUO ANYTONE 878 UVII PLUS
CARATTERISTICHE TECNICHE
• True-2-slot: Provide 2-slot communication which allows for 2 talk paths on 1 frequency; ETSI DMR Tier I and ll compliant
• Power 4W/2W/1W/0.1W
• Auto-senses digital or analog recepton
• 256 channels+ VFO, Voice prompting
• Support Contact Manager
• Bandwidth: 12.5K/25K (Analog 12.5K(DMR)
• Fixed and defined CTCSS/DCS encode and decode
• DIMF/2TONES/5TONE encode and decode
• Four diferent Tone pluse frequencies
• Individual/Group/All call
• Icon indicator or Voice prompt when connecting with repeater
• Zone selecton
• ANI functon and PIT ID: VOX: Digital Record ng and play
• Earphone: KENWOOD connector:
• Battery:3.7V 260OmAh Polymer battery
3.7V 5200mAh Li-ion battery(optional)
SPECIFICHE TECNICHE

General
Frequency Range 136-174MHz (V) , 400-480MHz (U)
Channel Capacity 4000 channels
Channel Spacing 25KHz (Wide Band)    12.5KHz (Narrow Band)
Phase-locked Step 5KHz, 6.25KHz
Operating Voltage 7.4V DC ±20% (2100mAh)
Frequency Stability ±2.0ppm
Operating Temperature -20?~ +55?
Size 129×61×39mm (with battery pack)
Weight 282g (with battery pack, antenna)
Transmitting Part
Power Output VHF: 7/5/2.5/1W, UHF: 6/5/2.5/1W
Modulation limit ±5.0KHz@25KHz (Wide Band)    ±2.5KHz@12.5KHz (Narrow Band)
Adjacent Channel Power ≥70dB (Wide Band)      ≥60dB (Narrow Band)
Hum & Noise ≥40dB (Wide Band)        ≥36dB (Narrow Band)
Spurious Emission ≤-36dB (Wide Band)      ≤-36dB (Narrow Band)
4FSK Digital Modulation 12.5KHz(data)7K60FXD      12.5KHz(data+voice)7K60FXE
Audio Distortion ≤5%
Error rate ≤3%
Receiving Part
Sensitivity (12dB SINAD) ≤0.25µV (Wide Band)  ≤0.35µV (Narrow Band)
Digital Sensitivity 0.3uV/-117.4dBm (BER 5%)        0.7uV/-110dBm (BER 1%)
Adjacent Channel  Selectivity ≥70dB (Wide Band)      ≥60dB (Narrow Band)
Spurious Emission ≤-57dB (Wide Band)      ≤-57dB (Narrow Band)
Spurious Rejection ≥70dB (Wide Band)        ≥70dB (Narrow Band)
Blocking 84db
Hum & Noise ≥45dB (Wide Band)        ≥40dB (Narrow Band)
Audio Distortion ≤5%
Audio Power Output 1000mW/16O
