| GENERAL |
| Type: |

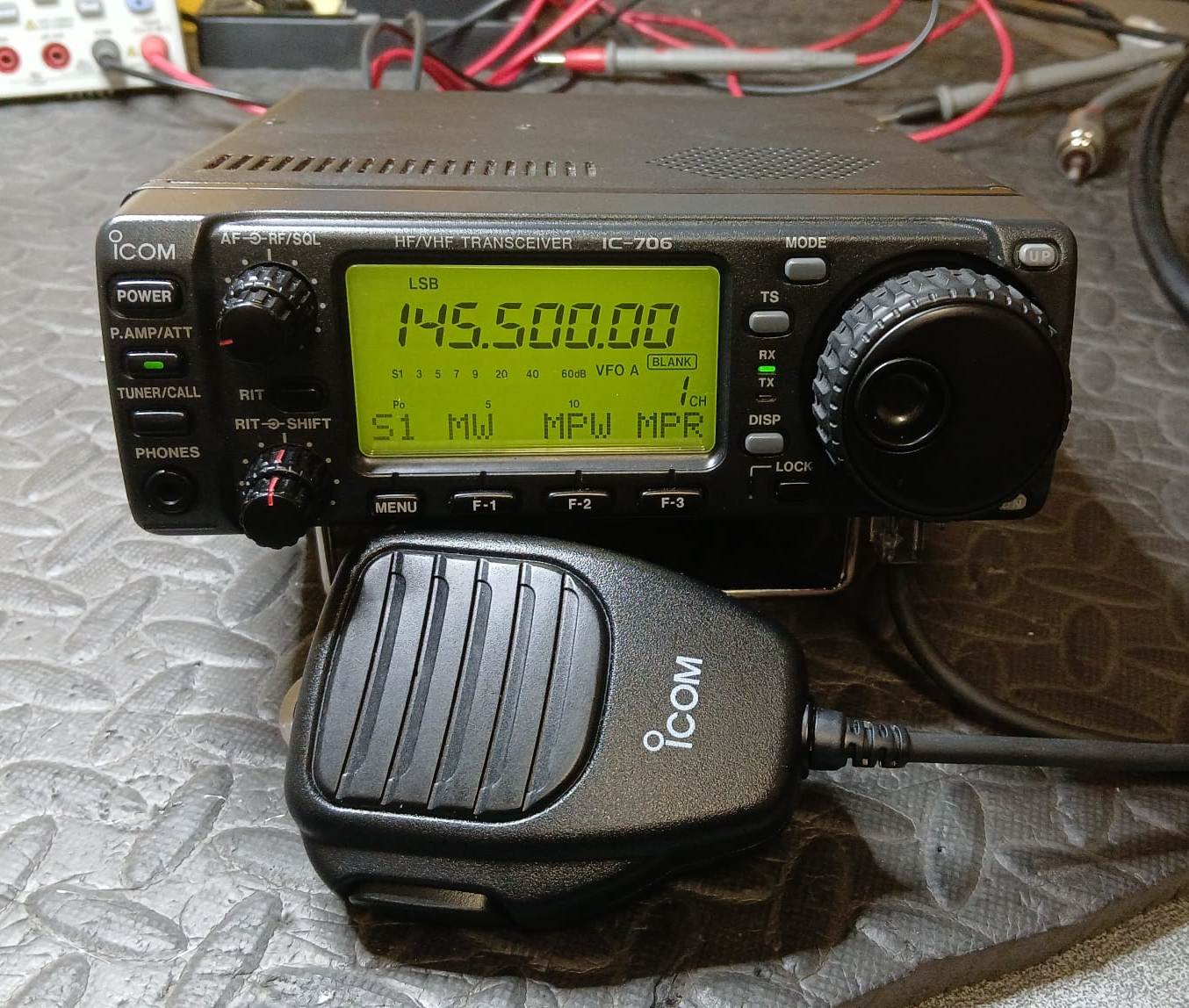

Amateur HF/VHF transceiver |
| Frequency range: |
Europe
TX: 10-160 m + WARC / 50-54 / 144-146 MHz
RX: 0.03-200 MHz
USA
TX: 10-160 m + WARC / 50-54 / 144-148 MHz
RX: 0.03-200 MHz |
| Tuning steps: |
1 / 10 / 100 Hz, 1 / 5 / 9 / 10 / 12.5 / 15 / 20 / 100 KHz |
| Frequency stability: |
±5 ppm @ 0 to 50°C (32 to 122°F) |
| Mode: |
TX: AM / FM / NFM / SSB / CW / RTTY
RX: AM / FM / NFM / WFM / SSB / CW / RTTY |
| Channels / memory management: |
99 regular with alpha tags
2 scan edge
1 call
Priority watch
Non-volatile EEPROM storage |
| Repeater shift / offset: |
±0 to 4 MHz in selected increment |
| Power supply: |
13.8 VDC ±15% |
| Current drain / power consumption: |
RX: 1.5 to 1.7 A
TX: Max 20 A |
| Antenna impedance / connector: |
50 ohm / SO-239 (HF/6 m), SO-239 (2 m) |
| Dimensions (W*H*D): |
167*58*200 mm (6.58*2.28*7.87") |
| Weight: |
2.5 Kg (5.51 lb) |
| Other features: |
CTCSS/PL encoder. 1750 Hz tone call.NB. IF-Shift. Simple band-scope.
VOX. SWR-meter. Electronic keyer. CI-V. Detachable front panel. |
| |
|
| |
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne (AM/SSB/CW/RTTY/WFM)
1st IF: 69.01 MHz (AM/SSB/CW/RTTY), 70.7 MHz (WFM)
2nd IF: 9.01 MHz (AM/SSB/CW/RTTY), 10.7 MHz (WFM)
Triple conversion superheterodyne (FM)
1st IF: 69.01 MHz
2nd IF: 9.01 MHz
3rd IF: 455 KHz |
| Sensitivity: |
AM (10 dB S/N)
0.5-1.8 MHz: 13 uV
1.8-30 MHz: 2 uV
50-54 MHz: 2 uV
144-148 MHz: 2 uV
FM (12 dB SINAD)
28-29.7 MHz: 0.5 uV
144-148 MHz: 0.3 uV
WFM (12 dB SINAD)
76-108 MHz: 10 uV
SSB/CW (10 dB S/N)
1.8-29.7 MHz: 0.16 uV
50-54 MHz: 0.16 uV
144-148 MHz: 0.16 uV |
| Selectivity: |
AM
6 KHz (-6 dB)
20 KHz (-40 dB)
FM
12 KHz (-6 dB)
30 KHz (-50 dB)
NFM
8 KHz (-6 dB)
SSB/CW
2.3 KHz (-6 dB)
4 KHz (-60 dB) |
| Image rejection: |
HF: 70 dB |
| AF output power / speaker: |
2 W at 10% distortion / 8 ohm |
| External speaker connector: |
3.5 mm, 8 ohm |
| |
|
| |
|
| TRANSMITTER SECTION |
| RF output power: |
| |
HF |
6 m |
2 m |
| AM: |
2-40 W |
2-40 W |
1-4 W |
| FM: |
5-100 W |
5-100 W |
1-10 W |
| SSB (PEP): |
5-100 W |
5-100 W |
1-10 W |
| CW: |
5-100 W |
5-100 W |
1-10 W |
|
| Modulation system: |
|
| Max FM deviation (Factory set): |
±? KHz |
| Spurious emissions: |
HF: Better than -50 dB
6 m/2 m: Better than -60 dB |
| Microphone impedance / connector: |
600 ohm / 8-pin (Modular) |
| Microphone input level: |
? mV |
| |
|
| |
|
| MISCELLANEOUS |
| Manufactured: |
Japan, 1995-1996 (Discontinued) |
| Additional info: |
New price 1995 in Sweden: SEK 14995:-
New price, december 1995 in Australia: AUD 2400.00 |
| Related documents: |
User manual (5.2 MB)
Service manual (29 MB) |
| Modifications and fixes: |
|
| Reviews: |
Amateur Radio (Australia): November 1995 |
| Options / Accessories: |
AH-2B
AH-3
AT-180
CR-502
CT-16
CT-17
EX-627
FL-100
FL-101
FL-103
FL-223
HM-103
IC-4KL
MB-62
MB-63
MB-65
OPC-025D
OPC-581
OPC-587
OPC-589
OPC-599
PS-85
SM-8
SM-20
SP-7
SP-10
SP-12
SP-20
SP-21
UT-102 |
Mobile HF antenna element, 10-80 m, 2.5 m long
HF automatic antenna tuner
HF/6 m automatic antenna tuner
High-stability crystal unit (±0.5 ppm)
Satellite interface unit
CI-V level converter unit
Automatic antenna selector
CW narrow filter (500 Hz)
CW narrow filter (250 Hz)
SSB wide filter (2.8 KHz)
SSB narrow filter (1.9 KHz)
Standard hand microphone
HF linear amplifier, 1 KW
Mobile mounting bracket
Mounting bracket
Control head mounting base
DC power cable
Separation cable, 3.5 m (11.5 ft)
Separation cable, 5 m (16.4 ft)
Microphone adapter cable
Adapter cable
DC power supply. 13.8 VDC, 20 A
Desktop microphonewith dual line output. Requires OPC-589
Desktop microphone. Requires OPC-589
External speaker. 8 ohm, 5 W
External speaker. 4 ohm, 5 W
External speaker. 8 ohm, 3 W
External speaker with four audio filters. 8 ohm, 5 W
External speaker. 8 ohm, 5 W
Voice synthesizer unit |
|
