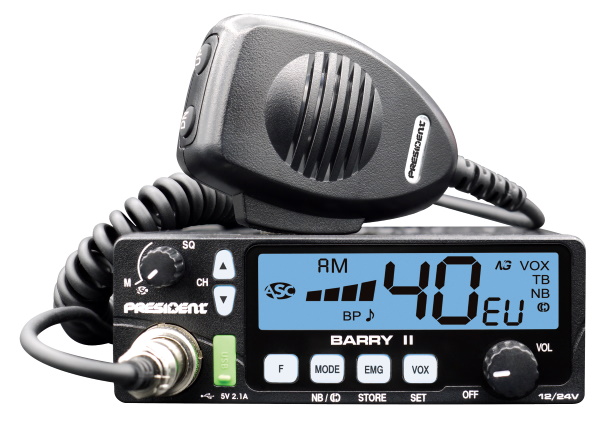

Name: PRESIDENT BARRY II+ RICETRASMETTITORE CB AM/FM OMOLOGATO
Brand: PRESIDENT
SKU: PREBARRY
Price: 99.00 EUR
Availability: OutOfStock

PRESIDENT BARRY II+ RICETRASMETTITORE CB AM/FM OMOLOGATO

Recensisci questo articolo

€99,00

Attenzione! Questo prodotto non è attualmente disponibile in magazzino, ma puoi prenotarlo acquistandolo ora. Ti contatteremo al più presto per confermare i tempi di consegna.

Marca: PRESIDENT
Condizione: NUOVO
Costo di Spedizione da €10.99
Codice: PREBARRY
Condividi su

PRESIDENT BARRY
RICETRASMETTITORE CB AM/FM OMOLOGATO 40 CANALI

SPECIFICATIONS

Supply	:	13.2 V / 24 V
Number of channels	:	40 **
AM	:
FM	:
Channel selector	:	up / down
Volume	:	Volume adjustment and ON/OFF
Squelch	:	Manual squelch
ASC	:
Display	:	LCD multifunction
S-meter	:	Digital
Public address	:
Talkback	:
Vox	:
Filter ANL	:
Filter NB	:
F / Menu function key	:
Key Beep	:
Roger beep	:
Preset channel	:	EMG (customizable)
Microphone plug	:	front (6 pins)
External Vox microphone jack	:
External loudspeaker jack	:
Size	:	125 (W) x 180 (D) x 45 (H)
Weight	:	0.9 kg

Transmission

Frequency allowance	+/- 200 Hz
Carrier power	4 W AM / 4 W FM **
Transmission interference	inferior to 4 nW (- 54 dBm)
Audio response	300 Hz to 3 KHz
Emitted power in the adj. channel	inferior a 20 ÂµW
Microphone sensitivity	7 mV
Drain	1,7 A at 13,2 V / 0,85 A at 26,4 V
Modulated signal distortion	2 %

Reception

Maxi. sensitivity at 20 dB sinad	:	0,5 ÂµV - 113 dBm AM / 0,35 ÂµV - 116 dBm FM
Frequency response	:	300 Hz to 3 kHz
Adjacent channel selectivity	:	60 dB
Maximum audio power	:	2.5 W
Squelch sensitivity	:	mini 0.2 ÂµV - 120 dBm / maxi 1 mV - 47 dBm
Frequency image rejection rate	:	60 dB
Intermediate frequency rej. rate	:	70 dB
Drain	:	160 ~ 420 mA (13,2 V) ;100 ~ 250 mA (26,4 V)
