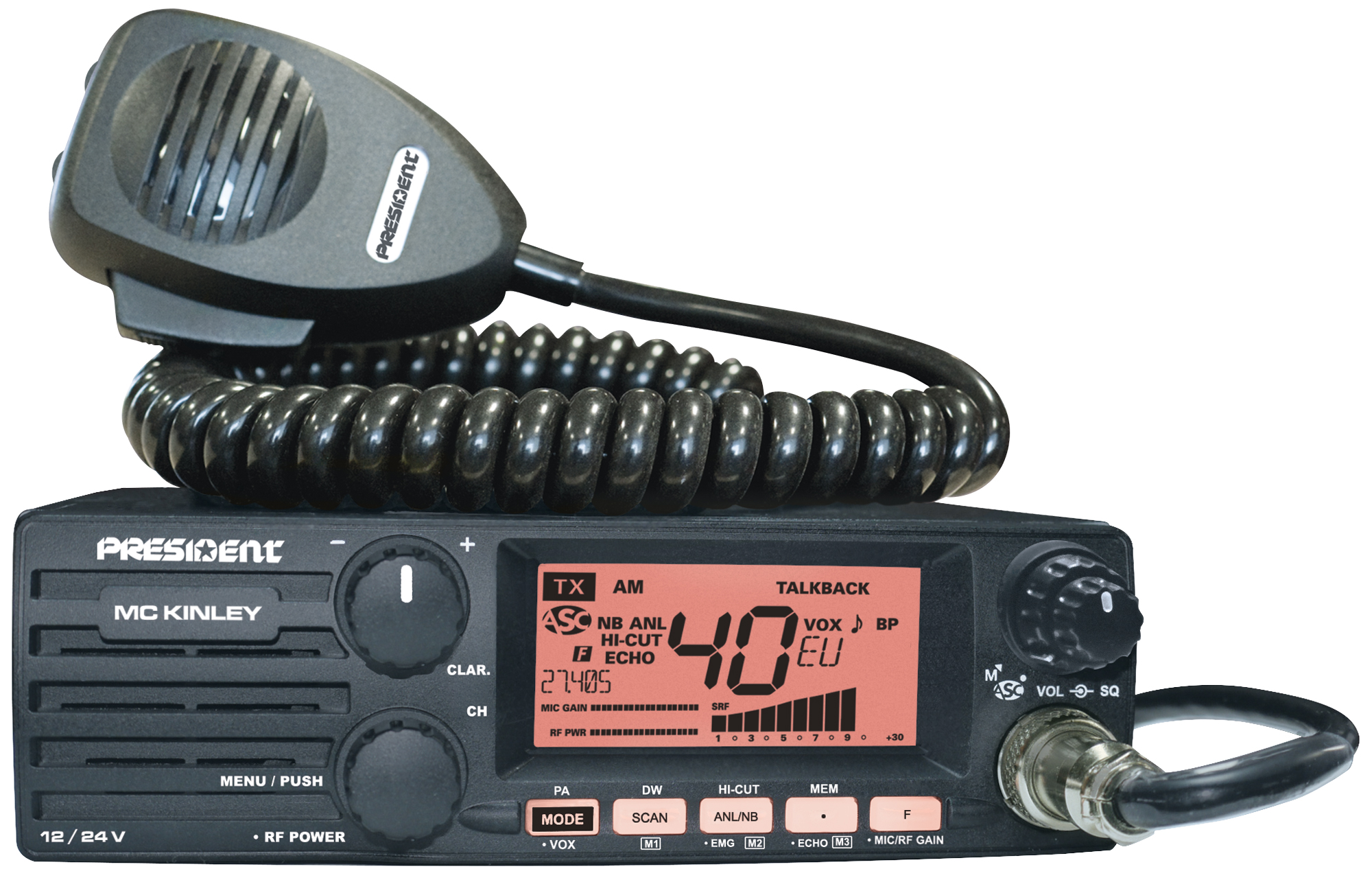

PRESIDENT MC KINLEY
- RICETRASMETTITORE CB 40 CANALI ALL MODE
- 40 channels AM / FM / LSB / USB
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- Frequencies display
- S-meter
- Vox function (Hands free)
- ANL filter , NB and HI-CUT
- RF Gain / Mic Gain
- RF Power
- Clarifier
- Channels and memories scan
- 3 Memories
- Dim
- F function key
- Beep Function
- Roger Beep
- Mode switch AM / FM / LSB / USB
- Dual watch
- Automatic SWR (Power Reading /SWR)
- Preset channel programmable (EMG 1&2)
- TOT (Time out timer)
- Front microphone plug
- Microphone Electret or Dynamic
- External loudspeaker jack

SPECIFICATIONS

Supply : 13.2 V / 24 V
Number of channels : 40
AM :
FM :
SSB :
Channel selector : rotary
VFO mode :
Volume : Volume adjustment and ON/OFF
RF Power :
Squelch : Manual squelch
ASC :
Display : LCD multifunction
Frequencies display :
S-meter : Digital
Public address :
Talkback :
Vox :
Automatic SWR meter :
Tone :
Filter ANL :
Filter NB :
Filter HI-CUT :
Local DX key :
RF Gain :
Mike-Gain :
Clarifier :
Scan :
Memory : 3
Dimmer :
F / Menu function key :
Key Beep :
Roger beep :
Dual watch :
SWR (Power Reading /SWR) :
Preset channel : EMG 1/2 (customizable)
Front loudspeaker :
Microphone plug : front (6 pins)
External Vox microphone jack :
External loudspeaker jack :
Size : 170 (W) x 150 (D) x 52 (H)
DIN Size :
Weight : 1.1 kg

TECHNICAL CHARACTERISTICSGENERAL

Number of channels : 40
Modulation modes : AM / FM / USB / LSB
Frequency ranges : from 26.965 MHz to 27.405 MHz
Antenna impedance : 50 ohms
Power supply : 12 V / 24 V
Size : 170 (W) x 150 (D) x 52 (H)
DIN Size :
Weight : 1.1 kg
Accessories supplied : power cord with fuse
1 microphone UP/DOWN and its hanger
1 mounting bracket with fixing screws

Transmission

Frequency allowance : +/- 300 Hz
Carrier power : 4 W AM / 4 W FM / 12 W USB / 12 W LSB
Transmission interference : inferior to 4 nW (- 54 dBm)
Audio response : 300 Hz to 3 KHz in AM/FM/USB/LSB
Emitted power in the adj. channel : inferior to 20 µW
Microphone sensitivity : 3,0 mV
Drain : 3 A (with modulation)
Modulated signal distortion : 1,8 %

Reception

Maxi. sensitivity at 20 dB sinad : 0.5 µV - 113 dBm (AM/FM) / 0.28 µV - 118 dBm (USB/LSB)
Frequency response : 300 Hz to 3 kHz in AM/FM
Adjacent channel selectivity : 60 dB
Maximum audio power : 3 W
Squelch sensitivity : minimum 0.2 µV - 120 dBm / maximum 1 mV - 47 dBm
Frequency image rejection rate : 60 dB
Intermediate frequency rej. rate : 70 dB
Drain : 400 mA nominal / 1000 mA maximum
