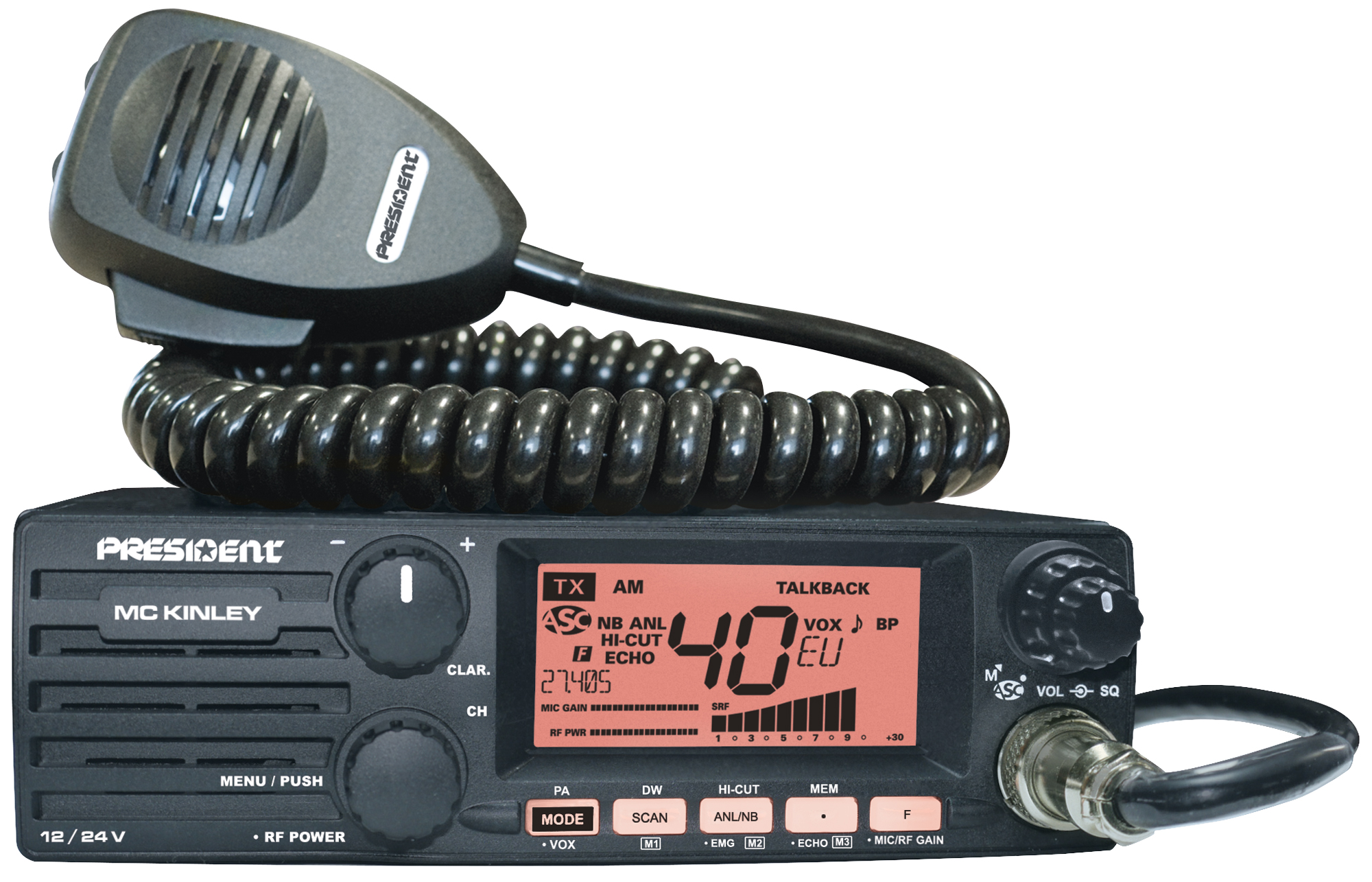

Name: PRESIDENT MC KINLEY - RICETRASMETTITORE CB 40 CANALI ALL MODE
Brand: PRESIDENT
SKU: PREMCKINLEY
Price: 287.99 EUR
Availability: OutOfStock

PRESIDENT MC KINLEY
- RICETRASMETTITORE CB 40 CANALI ALL MODE

- 40 channels AM / FM / LSB / USB
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- Frequencies display
- S-meter
- Vox function (Hands free)
- ANL filter , NB and HI-CUT
- RF Gain / Mic Gain
- RF Power
- Clarifier
- Channels and memories scan
- 3 Memories
- Dim
- F function key
- Beep Function
- Roger Beep
- Mode switch AM / FM / LSB / USB
- Dual watch
- Automatic SWR (Power Reading /SWR)
- Preset channel programmable (EMG 1&2)
- TOT (Time out timer)
- Front microphone plug
- Microphone Electret or Dynamic
- External loudspeaker jack

SPECIFICATIONS

Supply	:	13.2 V / 24 V
Number of channels	:	40
AM	:
FM	:
SSB	:
Channel selector	:	rotary
VFO mode	:
Volume	:	Volume adjustment and ON/OFF
RF Power	:
Squelch	:	Manual squelch
ASC	:
Display	:	LCD multifunction
Frequencies display	:
S-meter	:	Digital
Public address	:
Talkback	:
Vox	:
Automatic SWR meter	:
Tone	:
Filter ANL	:
Filter NB	:
Filter HI-CUT	:
Local DX key	:
RF Gain	:
Mike-Gain	:
Clarifier	:
Scan	:
Memory	:	3
Dimmer	:
F / Menu function key	:
Key Beep	:
Roger beep	:
Dual watch	:
SWR (Power Reading /SWR)	:
Preset channel	:	EMG 1/2 (customizable)
Front loudspeaker	:
Microphone plug	:	front (6 pins)
External Vox microphone jack	:
External loudspeaker jack	:
Size	:	170 (W) x 150 (D) x 52 (H)
DIN Size	:
Weight	:	1.1 kg

TECHNICAL CHARACTERISTICSGENERAL

Number of channels	:	40
Modulation modes	:	AM / FM / USB / LSB
Frequency ranges	:	from 26.965 MHz to 27.405 MHz
Antenna impedance	:	50 ohms
Power supply	:	12 V / 24 V
Size	:	170 (W) x 150 (D) x 52 (H)
DIN Size	:
Weight	:	1.1 kg
Accessories supplied	:	power cord with fuse 1 microphone UP/DOWN and its hanger 1 mounting bracket with fixing screws

Transmission

Frequency allowance	:	+/- 300 Hz
Carrier power	:	4 W AM / 4 W FM / 12 W USB / 12 W LSB
Transmission interference	:	inferior to 4 nW (- 54 dBm)
Audio response	:	300 Hz to 3 KHz in AM/FM/USB/LSB
Emitted power in the adj. channel	:	inferior to 20 ÂµW
Microphone sensitivity	:	3,0 mV
Drain	:	3 A (with modulation)
Modulated signal distortion	:	1,8 %

Reception

Maxi. sensitivity at 20 dB sinad	:	0.5 ÂµV - 113 dBm (AM/FM) / 0.28 ÂµV - 118 dBm (USB/LSB)
Frequency response	:	300 Hz to 3 kHz in AM/FM
Adjacent channel selectivity	:	60 dB
Maximum audio power	:	3 W
Squelch sensitivity	:	minimum 0.2 ÂµV - 120 dBm / maximum 1 mV - 47 dBm
Frequency image rejection rate	:	60 dB
Intermediate frequency rej. rate	:	70 dB
Drain	:	400 mA nominal / 1000 mA maximum
