Name: PRESIDENT RONALD RICETRASMETTITORE 10/11 METRI 50W PeP AM/FM
Brand: PRESIDENT
SKU: PRERONALD
Price: 133.00 EUR
Availability: OutOfStock

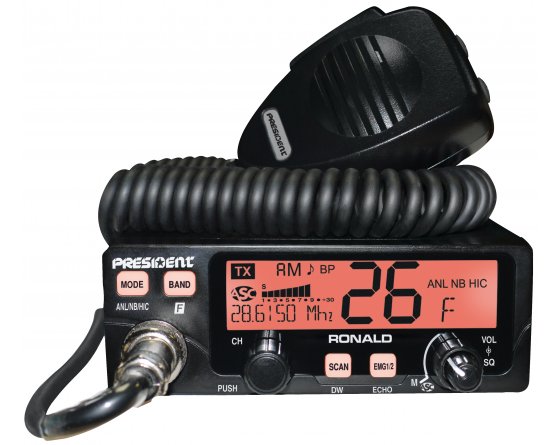

PRESIDENT RONALD
RICETRASMETTITORE 10 METRI ( 28 Mhz) 50W PeP AM/FM
Modificabile a richiesta del cliente per lavorare in 11 metri 27 Mhz (CB)

General

Modulation modes	:	AM / FM
Frequency ranges	:	from 28.000 MHz to 29.700 MHz
Antenna impedance	:	50 ohms
Power supply	:	12 V
Size	:	125 (W) x 175 (D) x 45 (H) mm
Weight	:	0,9 kg
Accessories supplied	:	power cord with fuse 1 microphone UP/DOWN and its hanger 1 mounting bracket with fixing screws

Transmission

Frequency allowance	:	+/- 300 Hz
Carrier power	:	13 W AM (50 W PEP) / 35 W FM
Transmission interference	:	inferior to - 50 dBm
Audio response	:	300 Hz to 3 KHz in AM/FM
Emitted power in the adj. channel	:	inferior to 20 ÂµW
Microphone sensitivity	:	3,0 mV
Drain	:	7 A max. (with modulation)
Modulated signal distortion	:	2%

Reception

Maxi. sensitivity at 20 dB sinad	:	0,7 ÂµV -110 dBm (AM) / 0,35 ÂµV -116 dBm (FM)
Frequency response	:	300 Hz to 3 kHz in AM/FM
Adjacent channel selectivity	:	60 dB
Maximum audio power	:	3 W
Squelch sensitivity	:	minimum : 0.2 ÂµV - 120 dBm / maximum : 1 mV - 47 dBm
Frequency image rejection rate	:	60 dB
Intermediate frequency rej. rate	:	70 dB
Drain	:	500 mA max

- Rotary switch channel selector
- Volume adjustment and ON/OFF
- RF Power
- Manual squelch and ASC
- Multi-functions LCD display
- Frequencies display
- S-meter
- Public Address
- ANL filter, NB and HI-CUT
- RF Gain / Mike gain
- Scan
- Talkback
- F function key
- Beep Function
- Roger Beep
- Mode switch AM/FM
- Dual watch
- Span
- Mic type electret / dynamic
- Key locking
- SWR (Power Reading /SWR)
- Preset emergency (EMG 1/2)
- TOT (Time Out Timer) adjustable
- Front microphone plug
- External loudspeaker jack
