Name: SIRIO SPO-380-2 Antenna omnidirezionale UHF professionale, 380-470 Mhz, 2.15dB
Brand: SIRIO
SKU: SIRSPO380-2
Price: 97.00 EUR
Availability: OutOfStock

SIRIO SPO-380-2 Antenna omnidirezionale UHF professionale, 380-470 Mhz, 2.15dB

Recensisci questo articolo

€97,00

Attenzione! Questo prodotto non è attualmente disponibile in magazzino, ma puoi prenotarlo acquistandolo ora. Ti contatteremo al più presto per confermare i tempi di consegna.

Marca: SIRIO
Condizione: NUOVO
Costo di Spedizione da €18.99
Codice: SIRSPO380-2
Condividi su

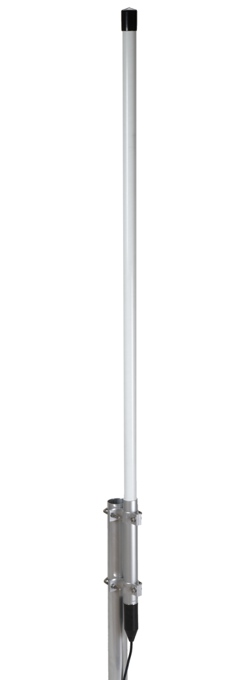

SIRIO SPO-380-2

Antenna omnidirezionale VHF professionale, 380-470 Mhz, 2.15dB

Descrizione:

Antenna omnidirezionale UHF per uso professionale, larga banda 380-470 Mhz, 2.15dB, senza radiali

Features:

-	Base station antenna, Wide-band
-	Unity-gain, Omnidirectional
-	Suitable for land and marine service
-	Protection from static discharges DC-Ground
-	Perfect protection against the worst weather conditions
-	Designed to work without Ground Plane
-	Stainless steel hardwares

Part Numbers:

P/N 2115020/380

Electrical Data
-	Type: dipole
-	Frequency range @ SWR ≤ 1.5: 380-470 MHz
-	Impedance: 50O
-	Radiation (H-plane): 360° omnidirectional
-	Radiation (E-plane): beamwidth @ -3 dB = 78°
-	Radiation angle: 0°
-	Polarization: linear vertical
-	Gain: 0 dBd - 2.15 dBi
-	Max. power (CW) @ 30°C: 75 Watts
-	Grounding protection: All metal part are DC-grounded, the inner conductor shows a DC-short
-	Connector: N-female with rubber protection cap

Mechanical Data
-	Materials: White fiberglass radome Ø 28.6mm, anodized 6063-t5 aluminium, brass, stainless steel, copper, EPDM rubber
-	Wind load / resistance: 33 N @ 150 Km/h / 200 Km/h
-	Wind surface: 0.027 mÂ²
-	Height (approx.): 780 mm
-	Weight (approx.): 890 gr
-	Operating temperature: -40°C to +80°C
-	Mounting mast: Ø 35-54 mm
