GENERAL
|
|
Type:
|

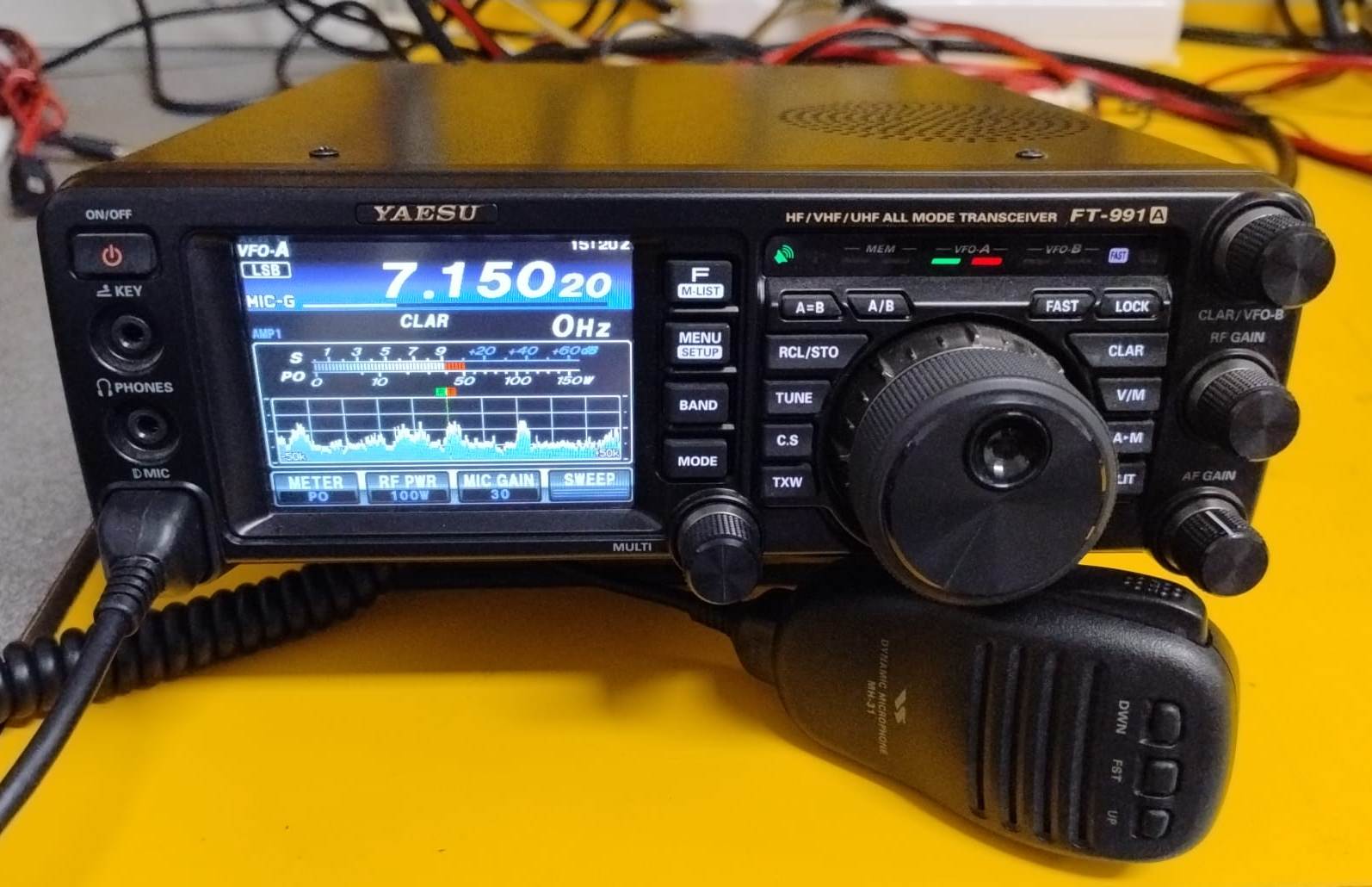

Amateur HF/VHF/UHF transceiver (System fusion concept)
|
|
Frequency range:
|
TX: 10-160 m + WARC / 6 m / 2 m / 70 cm
RX: 0.03-56 / 118-164 / 420-470 MHz
|
|
Tuning steps:
|
5 / 10 / 100 Hz, 1 KHz
|
|
Frequency stability:
|
±0.5 ppm @ -10 to +50°C (14 to 122°F), after 1 minute warmup
|
|
Mode:
|
AM / FM / NFM / SSB / CW / RTTY / PSK / DV (C4FM)
|
|
Channels / memory management:
|
99 regular with alpha tags (12 characters)
9 PMS (Band edge pairs)
5 QMB (Quick Memory Banks)
Non-volatile EEPROM storage
|
|
Repeater shift/offset:
|
10 m: ±10 KHz to 1 MHz (10 KHz steps)
6 m: ±10 KHz to 4 MHz (10 KHz steps)
2 m: ±10 KHz to 4 MHz (10 KHz steps)
70 cm: ±10 KHz to 10 MHz (10 KHz steps)
|
|
Power supply:
|
13.8 VDC ±15%
|
|
Current drain / power consumption:
|
RX: 1.8 to 2.2 A
TX: Max 23 A
|
|
Antenna impedance / connector:
|
50 ohm (Tuner on, HF: 16.7-150 ohm, 6 m: 25-100 ohm) / Two SO-239
(One SO-239 + one N-jack for Europe)
|
|
Dimensions (W*H*D):
|
229*80*253 mm (9*3.2*10")
|
|
Weight:
|
4.3 Kg (9.5 lb)
|
|
Other features:
|
3.5" color touchscreen. CTCSS/PL and DCS. High speed spectrum scope.
32-bit IF-DSP. Built-in automatic antenna tuner. USB connector.
CAT & GPS connector.
|
|
|
|
|
|
|
|
RECEIVER SECTION
|
|
Receiver system:
|
Double conversion superheterodyne (FM/NFM/C4FM)
1st IF: 69.450 MHz
2nd IF: 450 KHz
Triple conversion superheterodyne (AM/SSB/CW)
1st IF: 69.450 MHz
2nd IF: 9 MHz
3rd IF: 24 KHz
|
|
Sensitivity:
|
AM (6 KHz - 10 dB S+N/N)
0.5-1.8 MHz: 5 uV (Amp 2 on)
1.8-30 MHz: 1.6 uV (Amp 2 on)
50-54 MHz: 1.25 uV (Amp 2 on)
FM (15 KHz - 12 dB SINAD)
28-30 MHz: 0.35 uV (Amp 2 on)
50-54 MHz: 0.35 uV (Amp 2 on)
144-148 MHz: 0.18 uV
430-440 MHz: 0.18 uV
SSB/CW (2.4 KHz - 10 dB S+N/N)
1.8-30 MHz: 0.158 uV (Amp 2 on)
50-54 MHz: 0.125 uV (Amp 2 on)
144-148 MHz: 0.11 uV
430-450 MHz: 0.11 uV
|
|
Squelch sensitivity:
|
AM/SSB/CW
10-160 m / 6 m: 1 uV (Treshold, Amp2 on)
2 m / 70 cm: 1 uV (Treshold)
FM
10 m / 6 m: 0.35 uV (Treshold, Amp2 on)
2 m / 70 cm: 0.125 uV (Treshold)
|
|
Noise figure:
|
|
|
Selectivity:
|
AM
6 KHz (-6 dB)
15 KHz (-60 dB)
FM
12 KHz (-6 dB)
30 KHz (-60 dB)
SSB
2.4 KHz (-6 dB)
3.6 KHz (-60 dB)
CW/RTTY/PKT
500 Hz (-6 dB)
750 Hz (-60 dB)
|
|
Image rejection:
|
HF/6 m: 70 dB
2 m/70 cm: 60 dB
|
|
AF output power / speaker:
|
2.5 W at 10% distortion / 4 ohm
|
|
External speaker connector:
|
3.5 mm, 4-8 ohm
|
|
|
|
|
|
|
|
TRANSMITTER SECTION
|
|
RF output power:
|
|
|
HF
|
6 m
|
2 m
|
70 cm
|
|
AM:
|
2-25 W
|
2-25 W
|
1-12 W
|
1-12 W
|
|
FM/NFM:
|
5-100 W
|
5-100 W
|
2-50 W
|
2-50 W
|
|
SSB (PEP):
|
5-100 W
|
5-100 W
|
2-50 W
|
2-50 W
|
|
CW (DC):
|
5-100 W
|
5-100 W
|
2-50 W
|
2-50 W
|
|
RTTY/PSK:
|
5-100 W
|
5-100 W
|
2-50 W
|
2-50 W
|
|
DV (C4FM):
|
5-100 W
|
5-100 W
|
2-50 W
|
2-50 W
|
|
|
Modulation system:
|
AM: Low-level, early stage
FM: Variable reactance
SSB: Balanced
DV/C4FM: 4-level FSK
|
|
Max FM deviation (Factory set):
|
FM: ±5 KHz
NFM: ±2.5 KHz
|
|
Spurious emissions:
|
HF: Better than -50 dB
6 m: Better than -63 dB
2 m/70 cm: Better than -60 dB
|
|
Microphone impedance / connector:
|
200 ohm to 10 Kohm (600 ohm nominal) / 8-pin (Modular)
|
|
Microphone input level:
|
? mV
|
|
|
|
|
|
|
|
MISCELLANEOUS
|
|
Manufactured:
|
Japan, 2016-202x
|
|
Additional info:
|
This is an updated FT-991 with realtime bandscope and multi-colored waterfall.
New price 2021 in Sweden: SEK 15995:-
New price, july 2022 in Sweden: SEK 16995:-
|
|
