GENERAL
|
|
Type:
|

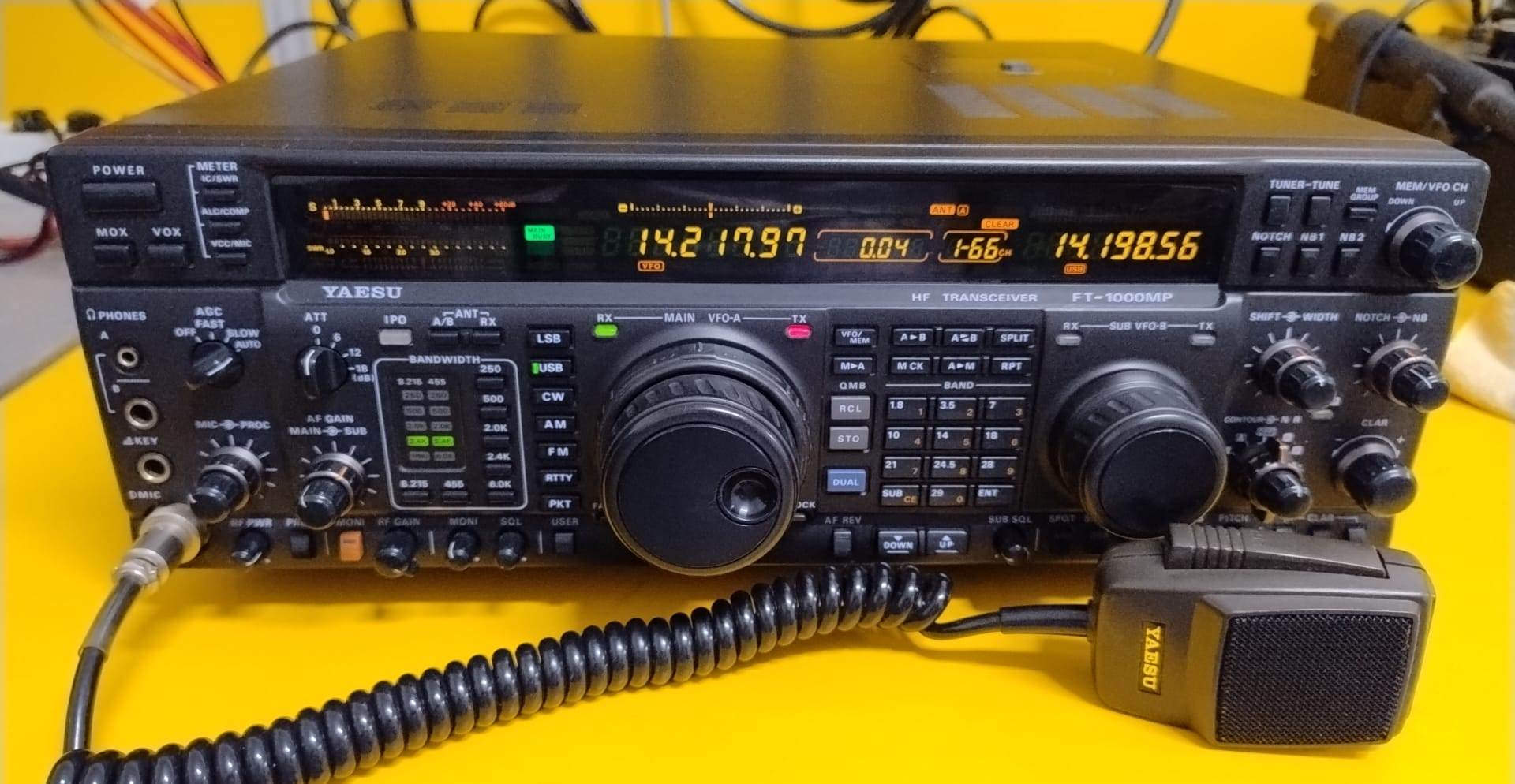

Amateur HF transceiver
|
|
Frequency range:
|
TX: 10-160 m + WARC
RX: 0.1-30 MHz
|
|
Tuning steps:
|
0.625 / 1.25 / 2.5 / 5 / 10 Hz (SSB/CW/FSK)
100 Hz (AM/FM)
|
|
Frequency stability:
|
±10 ppm @ -10 to +50°C (14 to 122°F)
±2 ppm (TCXO-4) or ±0.5 ppm (TCXO-6) options
|
|
Mode:
|
TX: AM / FM / SSB / CW / RTTY / Packet
RX: AM / AM-sync / FM / SSB / CW / RTTY / Packet
|
|
Channels / memory management:
|
99 regular
9 scan edge (PMS)
5 QMB
RAM storage with lithium battery backup
|
|
Repeater shift / offset:
|
±0-200 KHz
|
|
Power supply:
|
Mains: 100-125 VAC or 200-234 VAC (3-pin IEC C14 connector)
or 13.8 VDC (6-pin Molex connector)
|
|
Current drain / power consumption:
|
RX: Max 2.8 A @ 13.8 VDC
TX: Max 19 A @ 13.8 VDC
|
|
Antenna impedance / connector:
|
50 ohm (20-150 ohm with ATU) / Two SO-239 (RX/TX) and one phono/RCA (RX only)
|
|
Dimensions (W*H*D):
|
410*135*347 mm (16.14*5.32*13.66")
|
|
Weight:
|
15 Kg (33.07 lb)
|
|
Other features:
|
CTCSS/PL encoder. CAT control. Electronic keyer. Automatic antenna tuner. Twin RX.
|
|
|
|
|
|
|
|
RECEIVER SECTION
|
|
Receiver system:
|
Triple conversion superheterodyne (FM)
1st IF: 70.455 MHz
2nd IF: 8.215 MHz
3rd IF: 455 KHz
Quadruple conversion superheterodyne (AM/SSB/CW/FSK)
1st IF: 70.455 MHz
2nd IF: 8.215 MHz
3rd IF: 455 KHz
4th IF: ?
|
|
Sensitivity:
|
AM (10 dB S/N, 6 KHz BW)
0.15-0.25 MHz: 40 uV
0.25-0.5 MHz: 32 uV
0.5-1.8 MHz: 16 uV
1.8-30 MHz: 2 uV
FM (12 dB SINAD)
1.8-30 MHz: 0.5 uV
SSB/CW (10 dB S/N, 2.4 KHz BW)
0.15-0.25 MHz: 5 uV
0.25-0.5 MHz: 4 uV
0.5-1.8 MHz: 2 uV
1.8-30 MHz: 0.25 uV
|
|
Selectivity:
|
Available bandwidths
|
Button
|
Modes
|
-6 dB
|
-60 dB
|
|
2.4 KHz
|
All except FM
|
2.2 KHz
|
4.2 KHz
|
|
2.0 KHz
|
All except AM/FM
|
2.0 KHz
|
3.6 KHz
|
|
500 Hz
|
CW/RTTY/Packet
|
500 Hz
|
1.8 KHz
|
|
250 Hz
|
CW/RTTY
|
250 Hz
|
700 Hz
|
|
--
|
AM Wide
|
4 KHz
|
14 KHz
|
|
--
|
FM
|
8 KHz
|
19 KHz
|
|
|
Image rejection:
|
Main RX 1.8-30 MHz: 80 dB or better
Sub RX 1.8-30 MHz: 50 dB ore better
|
|
AF output power / speaker:
|
1.5 W at 10% distortion / 4 ohm
|
|
External speaker connector:
|
3.5 mm / 4-8 ohm
|
|
|
|
|
|
|
|
TRANSMITTER SECTION
|
|
RF output power:
|
|
|
Max pwr
|
|
AM:
|
25 W
|
|
FM:
|
100 W
|
|
SSB (PEP):
|
100 W
|
|
CW:
|
100 W
|
|
|
Modulation system:
|
AM: A3E Low-level (Early stage)
FM: F3E Variable reactance
SSB: J3E Balanced, filtered carrier
AFSK: J1D, J2D Audio frequency shift keying
|
|
Max FM deviation (Factory set):
|
±2.5 KHz
|
|
Spurious emissions:
|
Better than -50 dB
|
|
Microphone impedance / connector:
|
500-600 ohm / 8-pin (Metal locking ring connector)
|
|
Microphone input level:
|
? mV
|
|
|
|
|
|
|
|
MISCELLANEOUS
|
|
Manufactured:
|
Japan, 1995-200x (Discontinued)
|
|
Additional info:
|
|
|
Related documents:
|
User manual (12.7 MB)
|
|
Modifications and fixes:
|
|
|
Reviews:
|
|
|
Options / Accessories:
|
DVS-2
MD-100A8X
SP-8
TCXO-4
TCXO-6
YF-110CN
YF-110SN
YF-114CN
YF-114SN
YF-115C
YH-77STA
|
Digital voice recorder
Desktop microphone
External speaker with filters and LL-7 phone patch option
High stability master reference oscillator, ±2.0 ppm
High stability master reference oscillator, ±0.5 ppm
250 Hz CW filter, main RX, 455 KHz 3rd IF
2 KHz filter, main RX, 455 KHz 3rd IF
250 Hz filter, main RX, 8.2 MHz 2nd IF
2 KHz filter, main RX, 8.2 MHz 2nd IF
Collins mecanical 500 Hz CW/RTTY filter, main/sub RX, 455 KHz IF
Lightweight stereo headphones
|
|
