SOMMERKAMP LINEA FL-101 / FR-101 / ALTOPARLANTE ESTERNO
ALL MODE
PERFETTO STATO

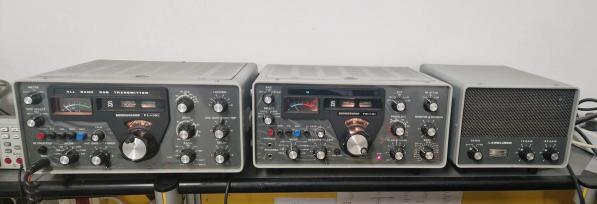

Splendida linea Vintage della famosa Sommerkamp
formata da 3 pezzi separati:
FL-101 (Trasmettitore)
FR-101 (Ricevitore)
Speaker
Completo di microfono originale e cavi di collegamento
SPECIFICATIONS FL-101
|
GENERAL
|
|
Type:
|
Amateur HF transmitter |
|
Frequency range:
|
10-160 m in 9 bands
1.8-2.0 MHz
3.5-4.0 MHz
7.0-7.5 MHz
14.0-14.5 MHz
21.0-21.5 MHz
28.0-28.5 MHz
28.5-29.0 MHz
29.0-29.5 MHz
29.5-29.9 MHz
Plus 2 AUX bands
|
|
Tuning steps:
|
Analog / continuous |
|
Frequency stability:
|
Less than 100 Hz per 30 minutes after warmup |
|
Mode:
|
AM / SSB / CW / FSK |
|
Channels / memory management:
|
None |
|
Power supply:
|
Mains: 100 / 110 / 117 / 200 / 220 / 234 VAC (Fixed power cord)
|
|
Current drain / power consumption:
|
Max 3 A @ 117 VAC |
|
Antenna impedance / connector:
|
50-75 ohm / SO-239 (Antenna), RCA/Phono (To receiver) |
|
Dimensions (W*H*D):
|
340*153*285 mm (13.4*6.02*11.22") |
|
Weight:
|
14 Kg (30.9 lb) |
|
Other features:
|
VOX. |
|
|
|
|
|
TRANSMITTER SECTION
|
|
RF output power:
|
AM: 80 W (DC input)
SSB: 200 W (PEP input)
CW: 200 W (DC input)
FSK: 80 W (DC input)
|
|
Modulation system:
|
|
|
Max FM deviation (Factory set):
|
No FM |
|
Spurious emissions:
|
Better than -40 dB |
|
Microphone impedance / connector:
|
10 Kohm to 50 Kohm / 3-pin (1/4" jack) |
|
Microphone input level:
|
? mV |
|
|
|
|
|
MISCELLANEOUS
|
|
Manufactured:
|
Japan, 1974-1978 (Discontinued) |
|
Additional info:
|
12BY7A driver and 6JS6C final
FR-101D or S companion
|
|
Related documents:
|
User manual (21.8 MB)
RF driver: 12BY7A
|
|
Modifications and fixes:
|
|
|
Reviews:
|
|
|
Options / Accessories:
|
FTV-250
FTV-650B
|
Transverter, 2 m
Transverter, 6 m
|
|
SPECIFICATIONS FR-101
|
GENERAL
|
|
Type:
|
HF/VHF receiver |
|
Frequency range:
|
1.8-30 MHz in 21 bands
|
160 m:
|
1.8-2.0 MHz |
|
80 m:
|
3.5-4.0 MHz |
|
60 m:
|
4.5-5.0 MHz (Optional) |
|
40 m:
|
6.9-7.5 MHz |
|
31 m:
|
9.5-10.0 MHz (Optional) |
|
25 m:
|
11.5-12.0 MHz (Optional) |
|
20 m:
|
13.9-14.5 MHz |
|
19 m:
|
15.0-15.5 MHz (Optional) |
|
16 m:
|
17.5-18.0 MHz (Optional) |
|
15 m:
|
20.9-21.5 MHz |
|
13 m:
|
21.5-22.0 MHz (Optional) |
|
11 m:
|
25.5-26.0 MHz (Optional) |
|
CB:
|
27.0-27.5 MHz (Optional) |
|
10 m A:
|
28.0-28.5 MHz |
|
10 m B:
|
28.5-29.0 MHz (Optional) |
|
10 m C:
|
29.0-29.5 MHz (Optional) |
|
10 m D:
|
29.5-29.9 MHz (Optional) |
|
*1:
|
4.0-4.5 MHz (Optional) |
|
*2:
|
5.0-5.2 MHz (Optional) |
|
*3:
|
7.5-9.0 MHz (Optional) |
|
*4:
|
22.0-27.0 MHz (Optional) |
Plus internal 6 m and 2 m converter options
|
|
Tuning steps:
|
Analog / continuous |
|
Frequency stability:
|
Within 100 Hz during any 30 minute period after warmup |
|
Mode:
|
AM / SSB / CW / RTTY (FM option) |
|
Channels / memory management:
|
4 optional
XTAL-controlled
|
|
Power supply:
|
Mains: 100 / 110 / 117 / 200 / 220 / 234 VAC
or 13.5 VDC
|
|
Current drain / power consumption:
|
Max ? mA @ 13.8 VDC |
|
Antenna impedance / connector:
|
50-75 ohm / SO-239 (HF)
50-75 ohm / SO-239 (6 m option)
50-75 ohm / SO-239 (2 m option)
|
|
Dimensions (W*H*D):
|
340*153*285 mm (13.4*6*11.2") |
|
Weight:
|
9 Kg (19.8 lb) |
|
Other features:
|
NB. XTAL-calibrator. |
|
|
|
|
|
RECEIVER SECTION
|
|
Receiver system:
|
Double conversion superheterodyne
1st IF: 5.5-6 MHz
2nd IF: 3.18 MHz
|
|
Sensitivity:
|
AM: 1 uV @ 14 MHz
FM: ? uV (12 dB SINAD), with FM-1 option
SSB/CW: 0.3 uV (10 dB S+N/N) @ 14 MHz
|
|
Selectivity:
|
AM-W (Optional)
6 KHz (-6 dB)
12 KHz (-50 dB)
AM-N/SSB/CW/RTTY
2.4 KHz (-6 dB)
4 KHz (-60 dB)
CW-N (Optional)
600 Hz (-6 dB)
1.5 KHz (-60 dB)
FM (With FM-1 option)
20 KHz (-6 dB)
45 KHz (-50 dB)
|
|
Image rejection:
|
60 dB |
|
AF output power / speaker:
|
2 W at 10% distortion / External only |
|
External speaker connector:
|
Phono (RCA), 4 ohm |
|
|
|
|
|
MISCELLANEOUS
|
|
Manufactured:
|
Japan, 197x-197x (Discontinued) |
|
Additional info:
|
|
|
Related documents:
|
User manual (4.1 MB)
|
|
Modifications and fixes:
|
|
|
Reviews:
|
|
|
Options / Accessories:
|
FC-2
FC-6
FM-1
SP-101B
XF-30B
XF-30C
XF-30D
|
2 m converter
6 m converter
FM unit
Matching speaker. 4 ohm
AM filter, 6 KHz
CW filter, 600 Hz
FM filter
|
|
