ICOM IC-737 RTX HF 0-30MHZ
PERFETTO STATO
APPENA REVISIONATO DA NOSTRO LABORATORIO

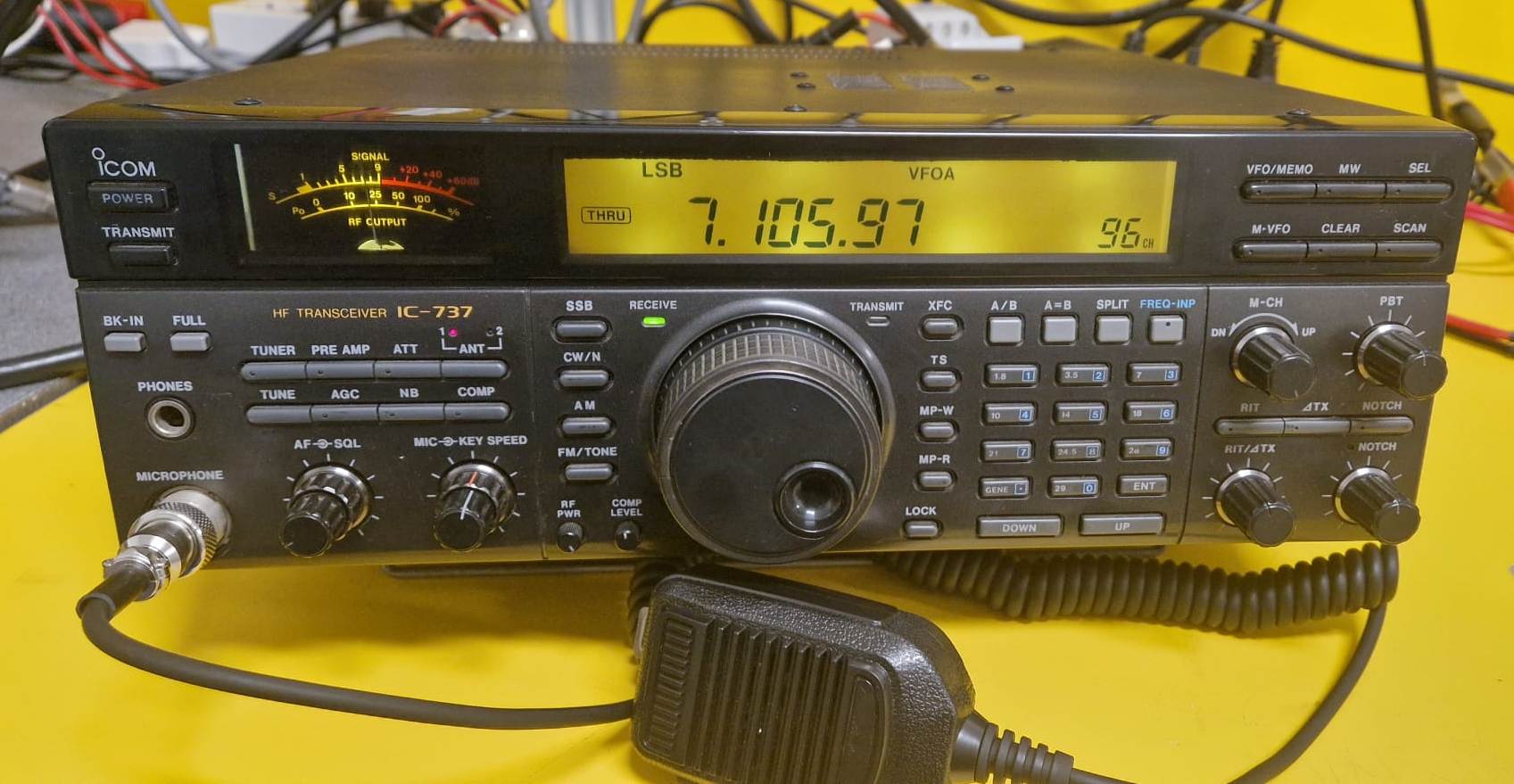

Icom IC-737 HF 0-30mhz all mode
In perfetto stato
Appena revisionato dal nostro laboratorio
Con microfono MGE compatibile Icom nuovo
Già aperto di banda
Completo di cavo alimentazione, manuale in PDF, non ha imballo originale ma ne verrà realizzato uno idoneo.
SPECIFICATIONS
|
GENERAL
|
|
Type:
|
Amateur HF transceiver |
|
Frequency range:
|
TX: 10-160 m + WARC
RX: 0.03-30 MHz
|
|
Tuning steps:
|
10 / 20 / 50 Hz, 1 / 9 / 10 KHz, 1 MHz |
|
Frequency stability:
|
Less than ±30 Hz @ 25°C (77°F), after 1 hr warmup |
|
Mode:
|
AM / FM / SSB / CW |
|
Channels / memory management:
|
89 regular
10 split
2 scan edge
RAM storage with lithium battery backup
|
|
Repeater shift / offset:
|
No dedicated. Use split memories |
|
Power supply:
|
13.8 VDC ±15% |
|
Current drain / power consumption:
|
RX: 1.6 to 2.1 A
TX: Max 20 A
|
|
Antenna impedance / connector:
|
50 ohm (16.7-150 ohm with ATU on) / Two SO-239 |
|
Dimensions (W*H*D):
|
330*111*285 mm (13*4.37*11.22") |
|
Weight:
|
8 Kg (17.64 lb) |
|
Other features:
|
NB. PBT. Attenuator. Auto-ATU. Electronic keyer. CI-V computer control.
|
|
|
|
|
|
RECEIVER SECTION
|
|
Receiver system:
|
Triple conversion superheterodyne
1st IF: 69.01 MHz
2nd IF: 9.01 MHz
3rd IF: 455 KHz
|
|
Sensitivity:
|
AM (10 dB S/N)
0.5-1.8 MHz: 13 uV
1.8-30 MHz: 2 uV
FM (12 dB SINAD)
28-30 MHz: 0.5 uV
SSB/CW (10 dB S/N)
1.8-30 MHz: 0.16 uV
|
|
Selectivity:
|
AM
6 KHz (-6 dB)
20 KHz (-40 dB)
FM
12 KHz (-6 dB)
30 KHz (-50 dB)
SSB/CW
2.1 KHz (-6 dB)
4 KHz (-60 dB)
|
|
Image rejection:
|
70 dB |
|
AF output power / speaker:
|
2.6 W at 10% distortion / 8 ohm |
|
External speaker connector:
|
3.5 mm, 8 ohm |
|
|
|
|
|
TRANSMITTER SECTION
|
|
RF output power:
|
|
Pwr |
|
AM:
|
4-40 W |
|
FM:
|
5-100 W |
|
SSB (PEP):
|
5-100 W |
|
CW:
|
5-100 W |
|
|
Modulation system:
|
|
|
Max FM deviation (Factory set):
|
±? KHz |
|
Spurious emissions:
|
Better than -50 dB |
|
Microphone impedance / connector:
|
600 ohm / 8-pin (Metal locking ring connector) |
|
Microphone input level:
|
? mV |
|
|
|
|
|
MISCELLANEOUS
|
|
Manufactured:
|
Japan, 1992-199x (Discontinued) |
|
Additional info:
|
New price 1993 in Sweden: SEK 17500:- |
|
Related documents:
|
User manual (6.5 MB)
|
|
Modifications and fixes:
|
|
|
Reviews:
|
|
|
Options / Accessories:
|
AH-2b
AH-3
AT-150
AT-500
CR-282
CT-16
CT-17
EX-627
FL-52A
FL-53A
FL-100
FL-101
HM-36
IC-2KL
IC-4KL
MB-49
OPC-025A
PS-15
PS-30
PS-55
SM-6
SM-8
SM-20
SP-3
SP-7
SP-20
SP-21
UT-30
|
Mobile HF antenna element
Automatic antenna tuner
Automatic antenna tuner
Automatic antenna tuner
High-stability crystal unit (±0.5 ppm)
Satellite interface unit
CI-V level converter
Automatic antenna selector
500 Hz narrow CW/RTTY filter (IF: 455 KHz)
250 Hz super-narrow CW filter (IF: 455 KHz)
500 Hz narrow CW/RTTY filter (IF: 9 MHz)
250 Hz super-narrow CW filter (IF: 9 MHz)
Standard hand microphone
HF linear amplifier. 500 W
HF linear amplifier. 1 KW
Mobile mounting bracket
DC power cable
AC power supply. 13.8 VDC, 20 A
AC power supply. 13.8 VDC, 25 A
AC power supply. 13.8 VDC, 20 A
Desk microphone
Desk microphone with dual line output
Desk microphone
External speaker. 4 W, 8 ohm
External speaker. 5 W, 8 ohm
External speaker with filters. 5 W, 8 ohm
External speaker. 5 W, 8 ohm
Programmable tone encoder unit
|
|
Tutto il NOSTRO USATO, prima di essere messo in vendita, viene testato con apparecchiature professionali (non semplici wattmetri....)
TEST SET 0-500 MHZ RODE & SCHWARZ SMFP2 per prove RX/TX HF-VHF-UHF
- DAIWA CN-801 HP 1.8-200 MHZ 2KW PEP con carico HEATHKIT 3 KW in bagno d'olio
- DAIWA CN-465M 140-450 MHZ con carico RADIOSYSTEM 96610-1
- YAESU FT897D CON TXCO per prove emissioni SSB HF-VHF-UHF
Ogni apparecchio viene sottoposto ad ulteriore verifica prima della spedizione.
TUTTO IL NOSTRO USATO GODE DI 12 MESI DI GARANZIA SCRITTA.
Acquista il tuo usato in tutta sicurezza dalla mediaglobe electronics, per pochi euro di differenza dai prezzi proposti dai venditori "privati" potrai dormire sogni tranquilli. Migliaia di clienti soddisfatti negli anni possono confermare.
