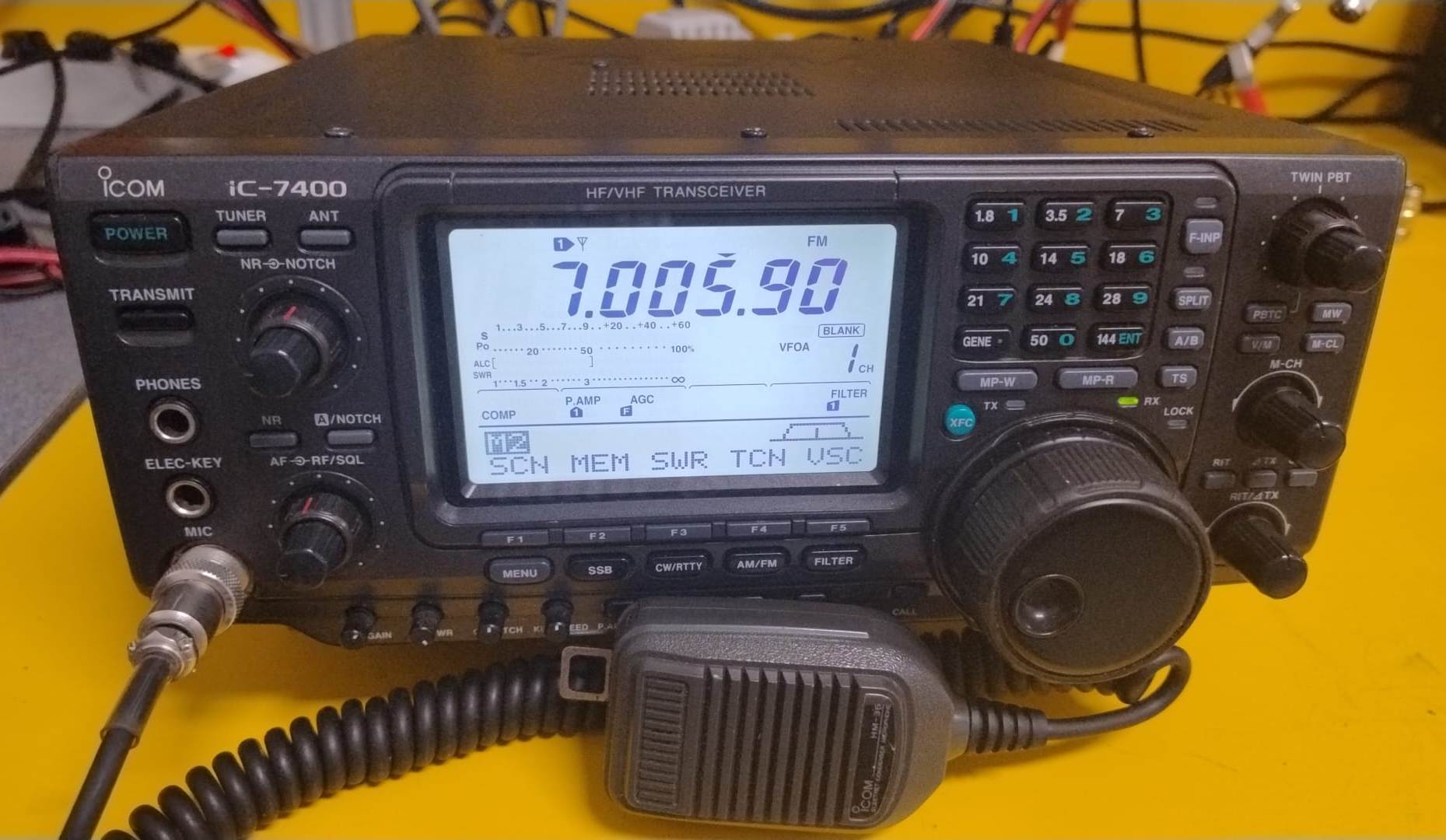

ICOM IC-7400 HF/VHF ALL MODE PERFETTO STATO - GIA' APERTO DI BANDA CON IMBALLO ORIGINALE
Tribanda Icom IC-7400 - HF/50/144mhz all mode
In perfetto stato elettrico ed estetico, viene
venduto con il suo microfono, cavo alimentazione
imballo originale e manuale d'istruzione in PDF
SPECIFICATIONS
|
GENERAL
|
|
Type:
|
Amateur HF/VHF transceiver |
|
Frequency range:
|
TX: 10-160 m + WARC / 6 m / 2 m
RX: 0.03-60 MHz
|
|
Tuning steps:
|
1 / 10 / 100 Hz, 1 / 5 / 9 / 10 / 12.5 / 20 / 25 KHz |
|
Frequency stability:
|
±5 ppm @ 0 to 50°C (20 to 122°F) |
|
Mode:
|
AM / FM / SSB / CW / RTTY |
|
Channels / memory management:
|
99 regular
2 scan edge
1 call
Non-volatile EEPROM storage
|
|
Repeater shift / offset:
|
Programmable |
|
Power supply:
|
13.8 VDC ±15% |
|
Current drain / power consumption:
|
RX: 2.2 to 3 A
TX: Max 23 A
|
|
Antenna impedance / connector:
|
50 ohm / Three SO-239
HF: 16.7-150 ohm with ATU on
6 m: 20-125 ohm with ATU on
|
|
Dimensions (W*H*D):
|
287*123*316 mm (11.3*4.84*12.44") |
|
Weight:
|
9 Kg (19.84 lb) |
|
Other features:
|
CTCSS/PL encoder. IF DSP. RTTY demodulator. CI-V. Auto-ATU. 1750 Hz tone call.
Simple band scope. Twin PBT. VOX. SWR-meter.
|
|
|
|
|
|
RECEIVER SECTION
|
|
Receiver system:
|
Triple conversion superheterodyne
1st IF: 64.455 MHz
2nd IF: 455 KHz
3rd IF: 36 KHz
|
|
Sensitivity:
|
AM (10 dB S/N)
0.5-1.8 MHz: 13 uV
1.8-30 MHz: 2 uV
6 m: 1 uV
2 m: 1 uV
FM (12 dB SINAD)
28-30 MHz: 0.5 uV
6 m: 0.25 uV
2 m: 0.18 uV
SSB/CW/RTTY (10 dB S/N)
1.8-30 MHz: 0.16 uV
6 m: 0.13 uV
2 m: 0.11 uV
|
|
Selectivity:
|
AM (BW: 6 KHz)
6 KHz (-6 dB)
15 KHz (-60 dB)
FM (BW: 15 KHz)
12 KHz (-6 dB)
20 KHz (-60 dB)
SSB (BW: 2.4 KHz)
2.4 KHz (-6 dB)
3.6 KHz (-60 dB)
CW (BW: 500 Hz)
500 Hz (-6 dB)
700 Hz (-60 dB)
RTTY (BW: 350 Hz)
360 Hz (-6 dB)
650 Hz (-60 dB)
|
|
Image rejection:
|
70 dB |
|
AF output power / speaker:
|
2 W at 10% distortion / 8 ohm |
|
External speaker connector:
|
3.5 mm |
|
|
|
|
|
TRANSMITTER SECTION
|
|
RF output power:
|
|
HF |
6 m |
2 m |
|
AM:
|
5-40 W |
5-40 W |
5-40 W |
|
FM:
|
5-100 W |
5-100 W |
5-100 W |
|
SSB (PEP):
|
5-100 W |
5-100 W |
5-100 W |
|
CW/RTTY:
|
5-100 W |
5-100 W |
5-100 W |
|
|
Modulation system:
|
AM: Low power modulation
FM: Phase modulation
SSB: PSN modulation
|
|
Max FM deviation (Factory set):
|
±? KHz |
|
Spurious emissions:
|
HF: Better than -50 dB
6 m / 2 m: Better than -60 dB
|
|
Microphone impedance / connector:
|
600 ohm / 8-pin (Metal locking ring connector) |
|
Microphone input level:
|
? mV |
|
|
|
|
|
MISCELLANEOUS
|
|
Manufactured:
|
Japan, 2001-2009 (Discontinued) |
|
Additional info:
|
This is the version approved for the european market.
See also the US version IC-746 Pro.
New price 2008 in Sweden: SEK 20000:-
|
|
Related documents:
|
User manual (5.8 MB)
|
|
Modifications and fixes:
|
|
|
Reviews:
|
|
|
Options / Accessories:
|
AH-2b
AH-4
CR-338
CT-17
HM-36
IC-PW1
PS-125
SM-20
SP-20
SP-21
UT-102
|
Mobile antenna element (7-54 MHz)
Automatic antenna tuner (HF/6 m)
High-stability crystal unit (±0.5 ppm)
CI-V level converter
Standard hand microphone
1 KW linear amplifier
AC power supply. 13.8 VDC, 25 A
Desk microphone with low-cut
External speaker with filters
External speaker
Voice synthesizer unit
|
|
Tutto il NOSTRO USATO, prima di essere messo in vendita, viene testato con apparecchiature professionali, e pulito ed igienizzato a fondo, non come altri che pubblicano solo "foto" pervenute, e vendono quelle....
- TEST SET 0-500 MHZ RODE & SCHWARZ SMFP2 per prove RX/TX HF-VHF-UHF e Marconi
- DAIWA CN-901HP3 1.8-200 MHZ 3KW PEP con carico HEATHKIT 3 KW in bagno d'olio
- DAIWA CN-901V 140-450 MHZ con carico RADIOSYSTEM 96610-1
- YAESU FT897D CON TXCO per prove allineamento emissioni SSB HF-VHF-UHF e frequenza
Ogni apparecchio USATO,viene sottoposto ad ulteriore verifica prima della spedizione.
TUTTO IL NOSTRO USATO GODE DI 12 MESI DI GARANZIA SCRITTA.
Acquista il tuo usato in tutta sicurezza dalla mediaglobe electronics, per pochi euro di differenza dai prezzi proposti dai venditori "privati" potrai dormire sogni tranquilli. Migliaia di clienti soddisfatti negli anni possono confermare.
