GALAXY SATURN 240CH

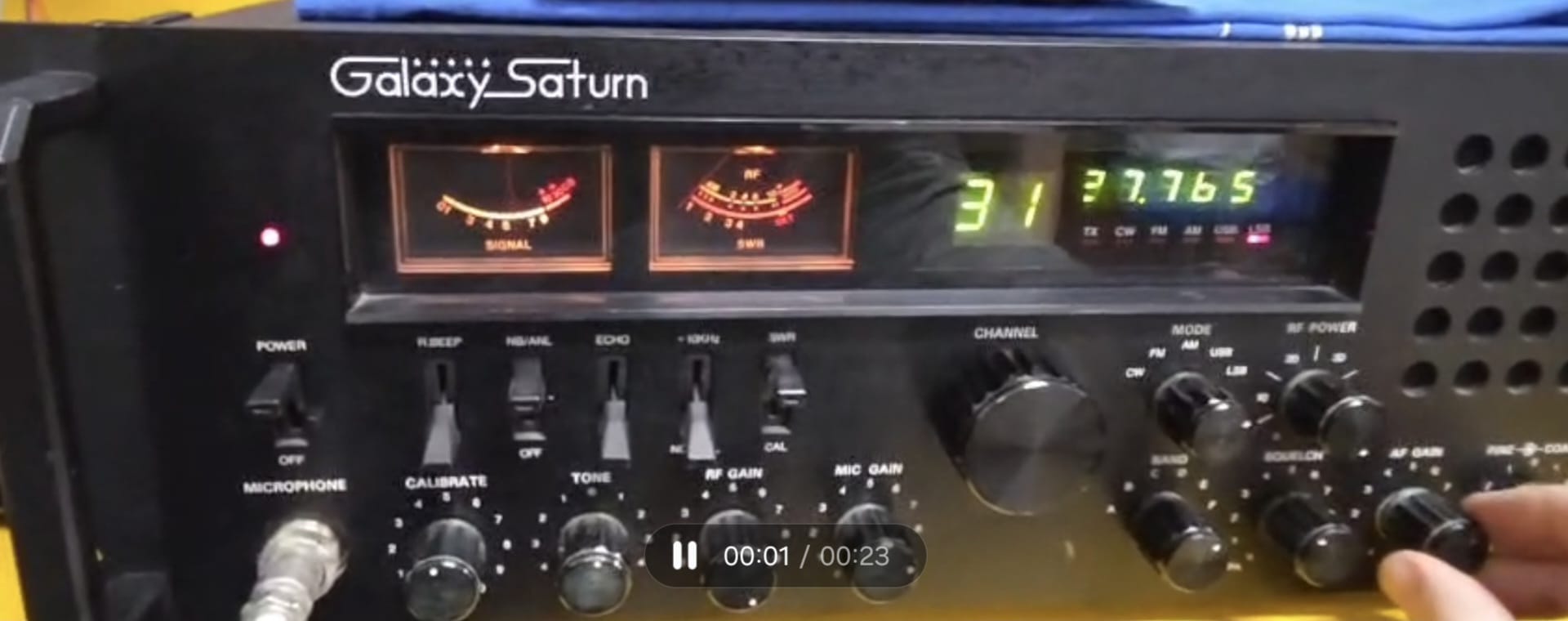

RICETRASMETTITORE ALL MODE 6 BANDE 25-28MHZ PERFETTO STATO
Ormai raro, audio bellissimo, alimentatore 220v entrocontenuto
Non ha imballo originale, ma ne verra’ realizzato uno personalizzato e perfetto per la spedizione sicura
Compreso microfono palmare.
SPECIFICATIONS
| GENERAL | |
| Type: | Citizen band / “Freeband” / Export transceiver |
| Frequency range (Depending on version): |
26.065-28.305 MHz 25.615-28.305 MHz |
| Channels / tuning steps (depending on version): |
200 (5*40) 240 (6*40) |
| Mode: | AM / FM / SSB / CW |
| Frequency control: | PLL (MC145106) |
| Frequency stability: | ±0.003% @ -30 to +50°C (-22 to +122°F) |
| Clarifier or Delta tune: | Coarse: ±? KHz Fine: ±? KHz |
| Power supply: | Mains: 110 VAC (Fixed power cord) |
| Current drain / power consumption: | RX: ? W TX: 90 W average |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 406*147*298 mm (16*5.8*11.7″) |
| Weight: | ? Kg (? lb) |
| Other features: | PA. ANL/NB. Echo chamber. +10 KHz switch. Roger beep. SWR-meter. Tone control. |
| RECEIVER SECTION | |
| Receiver system: | Single conversion superheterodyne (SSB/CW) IF: 10.695 MHz Double conversion superheterodyne (AM/FM) 1st IF: 10.695 MHz 2nd IF: 455 KHz |
| Sensitivity: | AM: 1 uV (10 dB S/N) FM: 1 uV (20 dB S/N) SSB/CW: 0.2 uV (10 dB S/N) |
| Squelch sensitivity: | Less than 0.7 uV (Threshold) |
| Selectivity: | AM/FM: 4 KHz (-5 dB), 10 KHz (-50 dB) SSB/CW: 2 KHz (-5 dB) |
| Image rejection: | 50 dB |
| AF output power / speaker: | 2 W at 10% distortion / 8 ohm |
| External speaker connector: | TS “Minijack” (3.5 mm), 4-8 ohm |
| TRANSMITTER SECTION | |
| RF output power: | AM/FM/CW: 10 W SSB: 21 W |
| Modulation system: | AM: Class B amplitude, collector modulation FM: ? SSB: Dual balanced modulation |
| FM deviation (Factory set): | ±1.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 600 ohm (Dynamic) / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
| MISCELLANEOUS | |
| Manufactured: | Taiwan, 199x-199x (Discontinued) |
| Main PCB: | EPT360011B by Ranger Single sided with through-hole components or EPT360014B (M-294HB-C) by Ranger Single sided with through-hole components |
| Sub PCBs: | EPT210010A – Frequency counter board EPT360040Z – SWR board EPTOSSB30Z – Channel selector board EPTOSSB40Z – LED channel display board EPTOSSB41A – Frequency counter display board EPTOSSB50Z – Echo board EPTOSSB60A – PSU board EPTOSSB81Z – Function selector board |
| Additional info: | |
| Related documents: | Service manual (11.1 MB) PLL: MC145106 RF driver: 2SC2166 RF finals: Two 2SC2312 |
| Known markets and approvals: | Export No known approvals for CB use |
