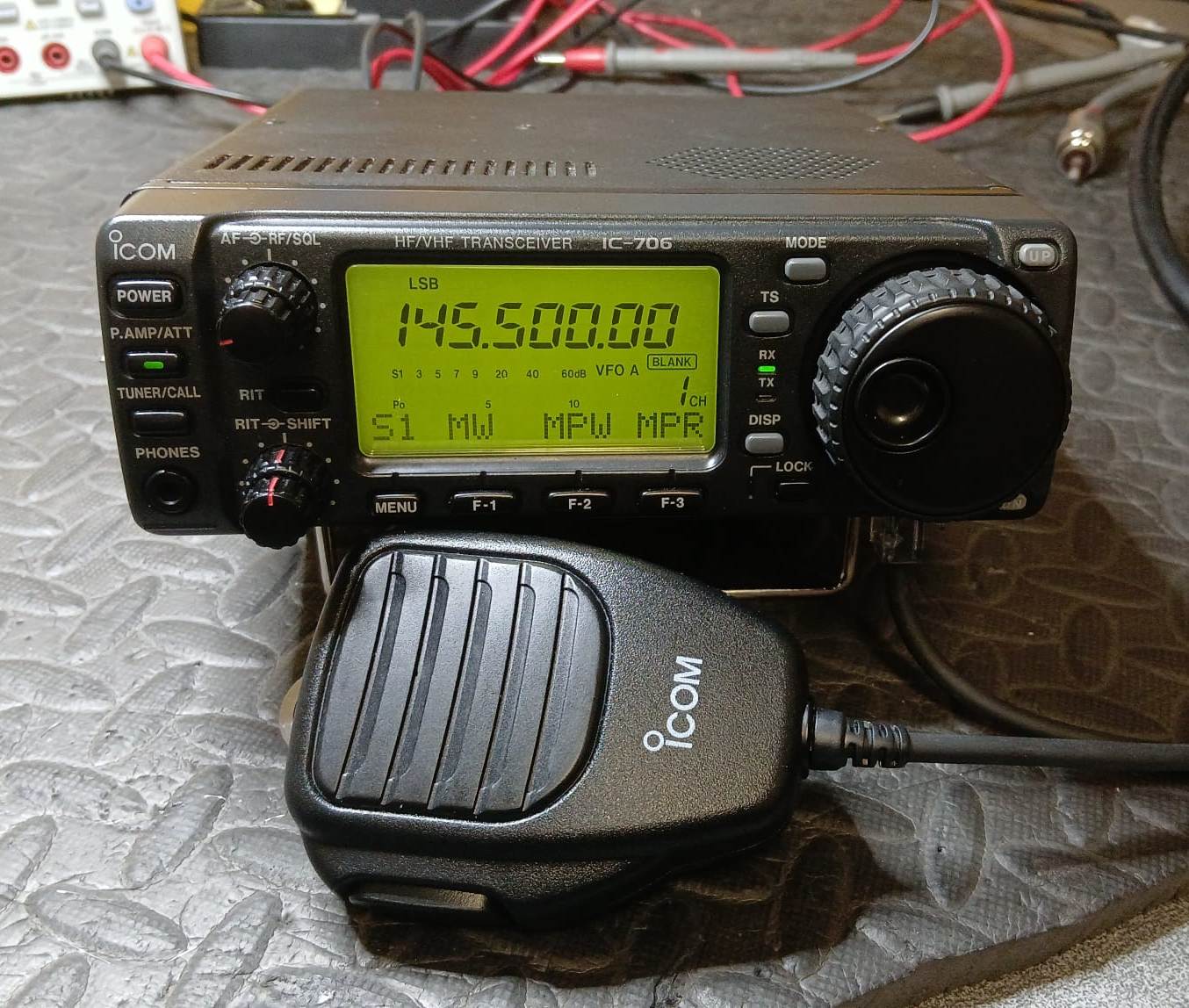

ICOM IC-706 RTX HF/50MHZ/VHF – PARI AL NUOVO
Splendido tribanda Icom, viene fornito di cavo alimentazione e microfono originale
Non è presente l’imballo originale, ma verrà spedito con un imballo adeguato.
SPECIFICATIONS
| GENERAL |
| Type: |
Amateur HF/VHF transceiver |
| Frequency range: |
Europe
TX: 10-160 m + WARC / 50-54 / 144-146 MHz
RX: 0.03-200 MHz
USA
TX: 10-160 m + WARC / 50-54 / 144-148 MHz
RX: 0.03-200 MHz |
| Tuning steps: |
1 / 10 / 100 Hz, 1 / 5 / 9 / 10 / 12.5 / 15 / 20 / 100 KHz |
| Frequency stability: |
±5 ppm @ 0 to 50°C (32 to 122°F) |
| Mode: |
TX: AM / FM / NFM / SSB / CW / RTTY
RX: AM / FM / NFM / WFM / SSB / CW / RTTY |
| Channels / memory management: |
99 regular with alpha tags
2 scan edge
1 call
Priority watch
Non-volatile EEPROM storage |
| Repeater shift / offset: |
±0 to 4 MHz in selected increment |
| Power supply: |
13.8 VDC ±15% |
| Current drain / power consumption: |
RX: 1.5 to 1.7 A
TX: Max 20 A |
| Antenna impedance / connector: |
50 ohm / SO-239 (HF/6 m), SO-239 (2 m) |
| Dimensions (W*H*D): |
167*58*200 mm (6.58*2.28*7.87″) |
| Weight: |
2.5 Kg (5.51 lb) |
| Other features: |
CTCSS/PL encoder. 1750 Hz tone call.NB. IF-Shift. Simple band-scope.
VOX. SWR-meter. Electronic keyer. CI-V. Detachable front panel. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne (AM/SSB/CW/RTTY/WFM)
1st IF: 69.01 MHz (AM/SSB/CW/RTTY), 70.7 MHz (WFM)
2nd IF: 9.01 MHz (AM/SSB/CW/RTTY), 10.7 MHz (WFM)
Triple conversion superheterodyne (FM)
1st IF: 69.01 MHz
2nd IF: 9.01 MHz
3rd IF: 455 KHz |
| Sensitivity: |
AM (10 dB S/N)
0.5-1.8 MHz: 13 uV
1.8-30 MHz: 2 uV
50-54 MHz: 2 uV
144-148 MHz: 2 uV
FM (12 dB SINAD)
28-29.7 MHz: 0.5 uV
144-148 MHz: 0.3 uV
WFM (12 dB SINAD)
76-108 MHz: 10 uV
SSB/CW (10 dB S/N)
1.8-29.7 MHz: 0.16 uV
50-54 MHz: 0.16 uV
144-148 MHz: 0.16 uV |
| Selectivity: |
AM
6 KHz (-6 dB)
20 KHz (-40 dB)
FM
12 KHz (-6 dB)
30 KHz (-50 dB)
NFM
8 KHz (-6 dB)
SSB/CW
2.3 KHz (-6 dB)
4 KHz (-60 dB) |
| Image rejection: |
HF: 70 dB |
| AF output power / speaker: |
2 W at 10% distortion / 8 ohm |
| External speaker connector: |
3.5 mm, 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
HF |
6 m |
2 m |
| AM: |
2-40 W |
2-40 W |
1-4 W |
| FM: |
5-100 W |
5-100 W |
1-10 W |
| SSB (PEP): |
5-100 W |
5-100 W |
1-10 W |
| CW: |
5-100 W |
5-100 W |
1-10 W |
|
| Modulation system: |
|
| Max FM deviation (Factory set): |
±? KHz |
| Spurious emissions: |
HF: Better than -50 dB
6 m/2 m: Better than -60 dB |
| Microphone impedance / connector: |
600 ohm / 8-pin (Modular) |
| Microphone input level: |
? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: |
Japan, 1995-1996 (Discontinued) |
| Additional info: |
New price 1995 in Sweden: SEK 14995:-
New price, december 1995 in Australia: AUD 2400.00 |
| Related documents: |
User manual (5.2 MB)
Service manual (29 MB) |
| Modifications and fixes: |
|
| Reviews: |
Amateur Radio (Australia): November 1995 |
| Options / Accessories: |
AH-2B
AH-3
AT-180
CR-502
CT-16
CT-17
EX-627
FL-100
FL-101
FL-103
FL-223
HM-103
IC-4KL
MB-62
MB-63
MB-65
OPC-025D
OPC-581
OPC-587
OPC-589
OPC-599
PS-85
SM-8
SM-20
SP-7
SP-10
SP-12
SP-20
SP-21
UT-102 |
Mobile HF antenna element, 10-80 m, 2.5 m long
HF automatic antenna tuner
HF/6 m automatic antenna tuner
High-stability crystal unit (±0.5 ppm)
Satellite interface unit
CI-V level converter unit
Automatic antenna selector
CW narrow filter (500 Hz)
CW narrow filter (250 Hz)
SSB wide filter (2.8 KHz)
SSB narrow filter (1.9 KHz)
Standard hand microphone
HF linear amplifier, 1 KW
Mobile mounting bracket
Mounting bracket
Control head mounting base
DC power cable
Separation cable, 3.5 m (11.5 ft)
Separation cable, 5 m (16.4 ft)
Microphone adapter cable
Adapter cable
DC power supply. 13.8 VDC, 20 A
Desktop microphonewith dual line output. Requires OPC-589
Desktop microphone. Requires OPC-589
External speaker. 8 ohm, 5 W
External speaker. 4 ohm, 5 W
External speaker. 8 ohm, 3 W
External speaker with four audio filters. 8 ohm, 5 W
External speaker. 8 ohm, 5 W
Voice synthesizer unit |
|
|
|
Tutto il NOSTRO USATO, prima di essere messo in vendita, viene testato con apparecchiature professionali, e pulito ed igienizzato a fondo, non come altri che pubblicano solo “foto” pervenute, e vendono quelle….
– TEST SET 0-500 MHZ RODE & SCHWARZ SMFP2 per prove RX/TX HF-VHF-UHF e Marconi
– DAIWA CN-901HP3 1.8-200 MHZ 3KW PEP con carico HEATHKIT 3 KW in bagno d’olio
– DAIWA CN-901V 140-450 MHZ con carico RADIOSYSTEM 96610-1
– YAESU FT897D CON TXCO per prove allineamento emissioni SSB HF-VHF-UHF e frequenza
Ogni apparecchio USATO,viene sottoposto ad ulteriore verifica prima della spedizione.
TUTTO IL NOSTRO USATO GODE DI 12 MESI DI GARANZIA SCRITTA.
Acquista il tuo usato in tutta sicurezza dalla mediaglobe electronics, per pochi euro di differenza dai prezzi proposti dai venditori “privati” potrai dormire sogni tranquilli. Migliaia di clienti soddisfatti negli anni possono confermare.
