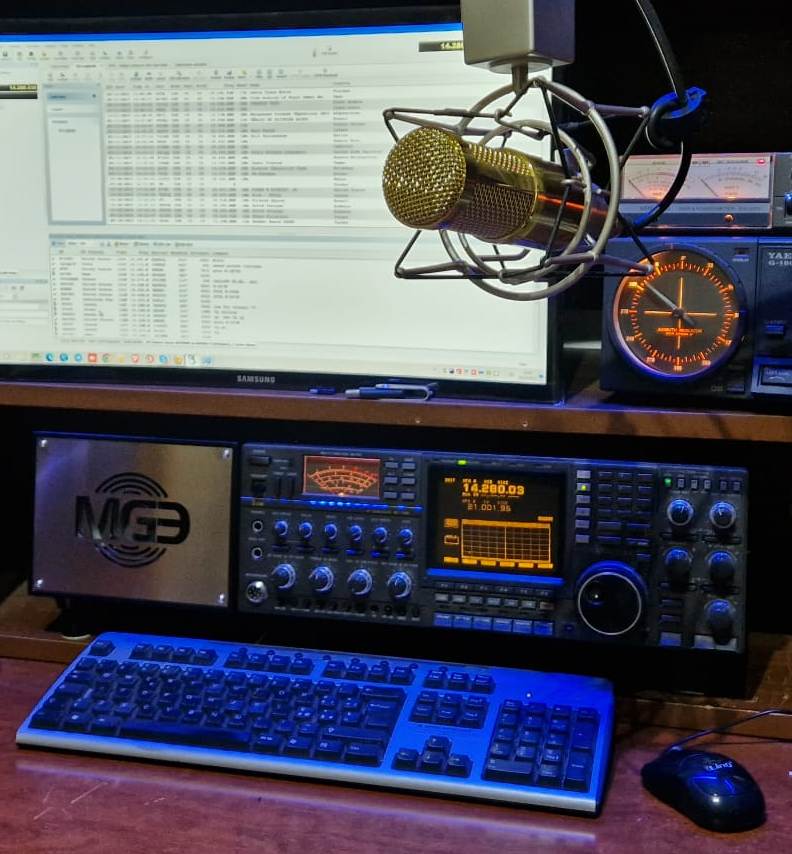

ICOM IC-781
MITICO ed INTRAMONTABILE TX 0-30 Mhz con AT Tuner – 220v
potenza esuberante, 150w, modulatore ancora da paura, speech processor potentissimo
Apparato che costava la bellezza di 12 milioni delle vecchie lire!!
Elettronicamente perfetto, esteticamente presenta qualche ovvio segno del tempo sui case, e manca un gancio dei 2 sullo sportellino superiore, e qualche tasto non molto leggibile.
Manca imballo originale, ma in caso di spedizione, ne verra’ realizzato uno personalizzato e super protetto, ed assolutamente idoneo al trasporto
SPECIFICATIONS
| GENERAL | |||||||||||
| Type: | Amateur HF transceiver | ||||||||||
| Frequency range: | TX: 10-160 m + WARC RX: 0.1-30 MHz |
||||||||||
| Tuning steps: | 10 Hz / 1 KHz | ||||||||||
| Frequency stability: | ±15 Hz @ -10 to +60°C (14 to 140°F) | ||||||||||
| Mode: | AM / FM / SSB / CW / RTTY | ||||||||||
| Channels/memory management: | 99 regular with notes 2 scan edge RAM storage with lithium battery backup Plus one separate lithium battery for the clocks |
||||||||||
| Repeater shift / offset: | No dedicated. Use VFO A/B split instead | ||||||||||
| Power supply: | Mains: 100-120 VAC (USA) or 220-240 VAC (Europe & Australia) | ||||||||||
| Current drain / power consumption: | RX: 140 to 150 VA TX: 325 to 760 VA |
||||||||||
| Antenna impedance / connector: | 50 ohm (16.7-150 ohm with ATU on) / SO-239 | ||||||||||
| Dimensions (W*H*D): | 425*149*411 mm (16.8*5.9*16.2″) | ||||||||||
| Weight: | 23 Kg (50.7 lb) | ||||||||||
| Other features: | Monochrome CRT, Spectrum scope. Clock/timer, Notch, CTCSS/PL encoder. Twin PBT. NB. CI-V interface. Dual watch in the same band. VOX. |
||||||||||
| RECEIVER SECTION | |||||||||||
| Receiver system: | Triple conversion superheterodyne (FM) 1st IF: 46.51 MHz 2nd IF: 9.01 MHz 3rd IF: 455 KHz Quadruple conversion superheterodyne (AM/SSB/CW/RTTY) 1st IF: 46.51 MHz 2nd IF: 9.01 MHz 3rd IF: 455 KHz 4th IF: 10.695 MHz |
||||||||||
| Sensitivity: | AM (10 dB S/N) 0.1-0.5 MHz: 3.2 uV 0.5-1.8 MHz: 6.3 uV 1.8-30 MHz: 1 uV FM (12 dB SINAD) 28-30 MHz: 0.23 uV SSB/CW/RTTY (10 dB S/N) 0.1-0.5 MHz: 0.5 uV 0.5-1.8 MHz: 1 uV 1.8-30 MHz: 0.16 uV |
||||||||||
| Squelch sensitivity: | FM 28-30 MHz: Less than 0.23 uV (Threshold) | ||||||||||
| Noise figure: | |||||||||||
| Selectivity: | AM-W >6 KHz (-6 dB) <15 KHz (-60 dB) FM >15 KHz (-6 dB) <30 KHz (-60 dB) SSB/CW-W/RTTY-W/AM-N >2.4 KHz (-6 dB) <3.8 KHz (-60 dB) CW-N/RTTY-N (CM250Hz Off) >500 Hz (-6 dB) <1 KHz (-60 dB) CW-N/RTTY-N (CM250Hz On) >250 Hz (-6 dB) <800 Hz (-60 dB) |
||||||||||
| Image rejection: | -80 dB | ||||||||||
| AF output power / speaker: | 2.6 W at 10% distortion / 8 ohm | ||||||||||
| External speaker connector: | TS “Minijack” (3.5 mm), 4-16 ohm | ||||||||||
| TRANSMITTER SECTION | |||||||||||
| RF output power: |
|
||||||||||
| Modulation system: | AM: Low level modulation FM/RTTY: Reactance modulation SSB: Balanced modulation |
||||||||||
| Max FM deviation (Factory set): | ±5 KHz | ||||||||||
| Spurious emissions: | Better than -60 dB | ||||||||||
| Microphone impedance / connector: | 600 ohm / 8-pin (Male locking ring jack) | ||||||||||
| Microphone input level: | ? mV | ||||||||||
| MISCELLANEOUS | |||||||||||
| Manufactured: | Japan, 1987-1993 (Discontinued) | ||||||||||
| Additional info: | New price 1988 in Sweden: SEK 46500:- | ||||||||||
| Related documents: | User manual (6.7 MB) | ||||||||||
| Modifications and fixes: | |||||||||||
| Reviews: | |||||||||||
| Options / Accessories: |
|
