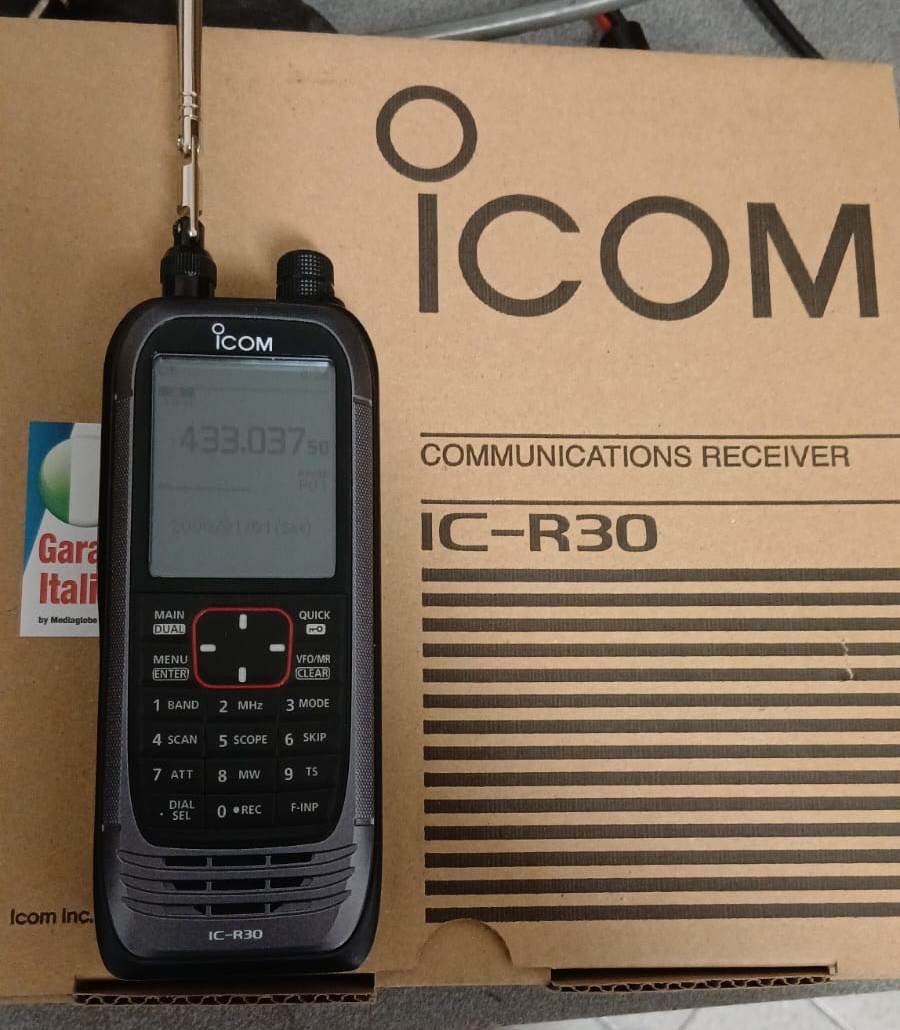

ICOM IC-R30 RICEVITORE PORTATILE ANALOGICO/DSTAR 0,1-3305MHZ ALL MODE – PARI AL NUOVO

ICOM IC-R30 RICEVITORE PORTATILE ANALOGICO/DSTAR
0,1-3305 MHZ ALL MODE – PARI AL NUOVO

Ricevitore scanner, portatile in grado di ricevere le frequenze da 100khz a 3,3ghz, in tutte le

modulazioni analogiche, normalmente utilizzate in ambito radioamatoriale: FM,FMW,AM, SSB e CW

alle quali si aggiungono le modulazioni digitali D-Star restando in ambito radioamatoriale.

Viene fornito completo del suo imballo e tutti gli accessori originali della sua confezione

Manuale in italiano cartaceo.

SPECIFICATIONS
GENERAL
Type: HF/VHF/UHF receiver/scanner
Frequency range: Band A: 0.1-3305 MHz
Band B: 108-520 MHz
(Cellular blocked in the US)
Tuning steps: 10 / 100 Hz
1 / 3.125 / 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 200 KHz
Frequency stability: ±2.5 ppm @ -20 to +60°C (-4 to +140°F)
Mode: Analog:
AM / AM-N / FM / NFM / WFM / SSB / CW
DV modes:

APCO P25 C4FM IMBE
D-Star GMSK AMBE
DCR C4FM AMBE+2
NXDN-N C4FM AMBE+2 (NXDN96, Narrow 9.6 kbps)
NXDN-VN C4FM AMBE+2 (NXDN48, Very Narrow 4.8 kbps)
dPMR C4FM AMBE+2
Only AM / FM modes above 1300 MHz!

Channels / memory management: 2000 regular in 100 banks
200 auto write
50 scan edge pairs
100 scan skip
300 GPS
Non-volatile EEPROM storage
Power supply: 3.6 VDC (BP-287) or 5 VDC external (USB)
Current drain / power consumption: 100-330 mA (Single watch. GPS, recording and backlite off
Antenna impedance / connector: 50 ohm / SMA
Dimensions (W*H*D): 58*143*30 mm (2.3*5.6*1.2″)
Weight: 310 g (10.9 oz), with BP-287 battery pack and antenna
Other features: CTCSS/PL, DTCS. Bluetooth. Dual watch (with some limitations). GPS. 2.3″ dot-matrix LCD.
Digital recording on Micro-SD. IP57 dust and water protection. VSC. Speech function.
ANL, NB. RF gain. Attenuator. Clock.
RECEIVER SECTION
Receiver system: Double conversion superheterodyne (Band B)
1st IF: 46.35 MHz
2nd IF: 450 KHz
Triple conversion superheterodyne (Band A)
1st IF: 266 MHz
2nd IF: 58.05 MHz (Except WFM), 10.7 MHz (WFM)
3rd IF: 450 KHz (Except WFM)
Sensitivity: AM (10 dB S/N)
0.495-1.9 MHz: 2.2 uV
1.9-30 MHz: 1.4 uV
118-137 MHz: 1.4 uV
FM (12 dB SINAD)
28-222 MHz: 0.4 uV
222-1300 MHz: 0.56 uV
1300-2700 MHz: 1.8 uV
2700-3305 MHz: 18 uV
WFM (12 dB SINAD)
76-108 MHz: 1.8 uV
SSB/CW (10 dB S/N)
0.495-1.9 MHz: 0.4 uV
1.9-148 MHz: 0.25 uV
430-450 MHz: 0.32 uV
D-Star (1% BER)
28-30 MHz: 0.71 uV
50-54 MHz: 0.71 uV
144-148 MHz: 0.71 uV
430-450 MHz: 1 uV
1260-1300 MHz: 1 uV
NXDN/dPMR/DCR (1% BER)
136-174 MHz: 0.71 uV
350-512 MHz: 1 uV
P25 (5% BER)
136-174 MHz: 0.4 uV
400-470 MHz: 0.56 uV
763-870 MHz: 0.71 uV
Squelch sensitivity: Squelch matrix
Noise figure:
Selectivity: AM/FM
12 KHz (-6 dB), 30 KHz (-60 dB), below 1305 MHz
WFM
150 KHz (-6 dB)
SSB/CW
1.8 KHz (-6 dB)
Image rejection:
AF output power / speaker: 400 mW at 10% distortion / 16 ohm
External speaker connector: TS “Minijack” (3.5 mm), 8 ohm
MISCELLANEOUS
Manufactured: Japan, 2018-2021 (Discontinued)
Additional info: New price 2018 in Sweden: SEK 7995:-
Related documents: Flyer (1.7 MB)
Basic manual (2.9 MB)
Advanced manual (3 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
BC-123SA
BC-123SE
BC-223
BP-287
BP-293
CS-R30
LC-189
MB-133
SP-40
VS-3 AC adapter. 100-240 VAC. US plug
AC adapter. 100-240 VAC. EU plug
Rapid charger
Li-Ion battery pack. 3.6 V, 3200 mAh
Dry cell battery case. 3*LR6/AA
Programming software
Carrying case

Tutto il NOSTRO USATO, prima di essere messo in vendita, viene testato con apparecchiature professionali, e pulito ed igienizzato a fondo, non come altri che pubblicano solo “foto” pervenute, e vendono quelle….
– TEST SET 0-500 MHZ RODE & SCHWARZ SMFP2 per prove RX/TX HF-VHF-UHF e Marconi
– DAIWA CN-901HP3 1.8-200 MHZ 3KW PEP con carico HEATHKIT 3 KW in bagno d’olio
– DAIWA CN-901V 140-450 MHZ con carico RADIOSYSTEM 96610-1
– YAESU FT897D CON TXCO per prove allineamento emissioni SSB HF-VHF-UHF e frequenza
Ogni apparecchio USATO,viene sottoposto ad ulteriore verifica prima della spedizione.
TUTTO IL NOSTRO USATO GODE DI 12 MESI DI GARANZIA SCRITTA.
Acquista il tuo usato in tutta sicurezza dalla mediaglobe electronics, per pochi euro di differenza dai prezzi proposti dai venditori “privati” potrai dormire sogni tranquilli. Migliaia di clienti soddisfatti negli anni possono confermare.
