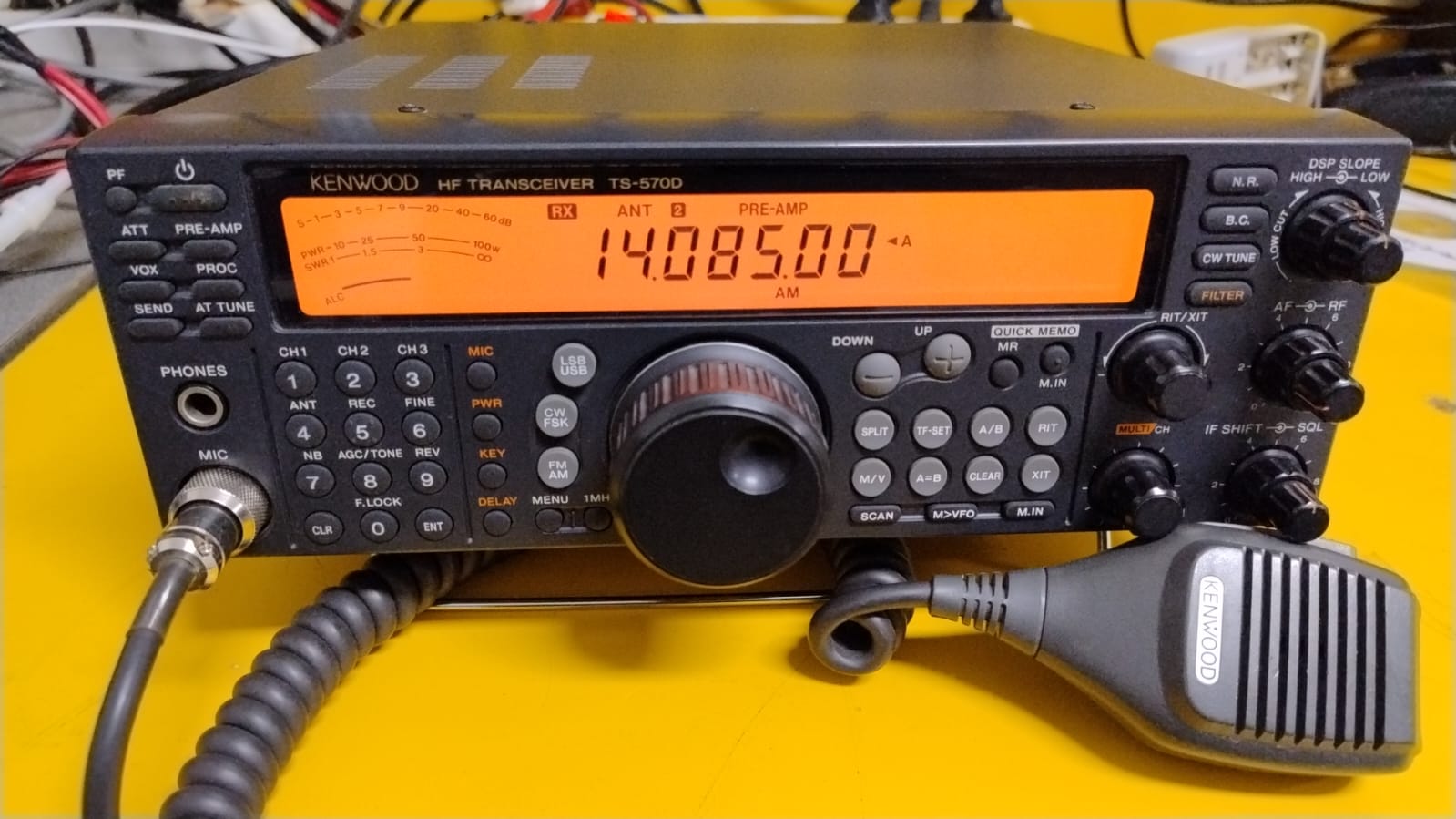

KENWOOD TS-570D HF 0-30MHZ – ALLMODE – OTTIMO STATO

KENWOOD TS-570D HF 0-30MHZ

ALLMODE – OTTIMO STATO

Con accordatore automatico di antenna, già aperto di banda

microfono originale, cavo alimentazione, manuale in italiano.

VERRA’ SPEDITO CON UN IMBALLO ADEGUATO

A PROVA DI CORRIERI MALDESTRI

SPECIFICATIONS
GENERAL
Type: Amateur HF transceiver
Frequency range: TX: 10-160 m + WARC
RX: 0.5-30 MHz
Tuning steps: 1 / 10 / 100 Hz
1 / 5 / 9 / 10 / 12.5 / 20 / 25 / 100 / 500 KHz
1 MHz
Frequency stability: ±10 ppm @ -10 to +50° C (14 to 122°F)
Mode: AM / FM / SSB / CW / FSK
Channels / memory management: 100 regular
5 quick memories
RAM storage with lithium battery backup
Repeater shift / offset: No dedicated. Use VFO A/B split instead
Power supply: 13.8 VDC ±15% (6-pin Molex)
Current drain / power consumption: RX: 2 A (No signal)
TX: Max 20.5 A
Antenna impedance / connector: 50 ohm / Two SO-239
(16.7-150 ohm with built-in antenna tuner)
Dimensions (W*H*D): 270*96*271 mm (10.63*3.78*10.67″)
Weight: 6.8 Kg (15 lb)
Other features: CTCSS/PL. 1750 Hz repeater tone. Built-in keyer and auto-AT.
VOX. Computer control. DSP.

RECEIVER SECTION
Receiver system: Double conversion superheterodyne (AM/SSB/CW/FSK)
1st IF: 73.05 MHz
2nd IF: 8.83 MHz
Triple conversion superheterodyne (FM)
1st IF: 73.05 MHz
2nd IF: 8.83 MHz
3rd IF: 455 KHz
Sensitivity: AM (10 dB S+N/N)
0.5-1.705 MHz: 31.6 uV
1.705-24.5 MHz: 2 uV
24.5-30 MHz: 1.3 uV
FM (12 dB SINAD)
28-30 MHz: 0.25 uV
SSB/CW/FSK (10 dB S+N/N)
0.5-1.705 MHz: 4 uV
1.705-24.5 MHz: 0.2 uV
24.5-30 MHz: 0.13 uV
Selectivity: AM
4 KHz (-6 dB)
20 KHz (-50 dB)
FM
12 KHz (-6 dB)
25 KHz (-50 dB)
SSB/CW/FSK
2.2 KHz (-6 dB)
4.4 KHz (-60 dB)
Image rejection: 70 dB
AF output power / speaker: 1.5 W at 10% distortion / 8 ohm
External speaker connector: 3.5 mm, 8 ohm

TRANSMITTER SECTION
RF output power:
AM: 5-25 W (In 5 W steps)
FM: 5-100 W (In 5 W steps)
SSB (PEP): 5-100 W (In 5 W steps)
CW/FSK: 5-100 W (In 5 W steps)
Modulation system: AM: Low level
FM: Reactance
SSB: Balanced
Max FM deviation (Factory set): Wide: ±5 KHz
Narrow: ±2.5 KHz
Spurious emissions: Better than -50 dB
Microphone impedance / connector: 600 ohm / 8-pin (Metal locking ring connector)
Microphone input level: ? mV

MISCELLANEOUS
Manufactured: Japan, 1996?-1999 (Discontinued)
Additional info: New price 1996 in Sweden: SEK 16650:-
Related documents: User manual (3.9 MB)

Tutto il NOSTRO USATO, prima di essere messo in vendita, viene testato con apparecchiature professionali, e pulito ed igienizzato a fondo, non come altri che pubblicano solo “foto” pervenute, e vendono quelle….
– TEST SET 0-500 MHZ RODE & SCHWARZ SMFP2 per prove RX/TX HF-VHF-UHF e Marconi
– DAIWA CN-901HP3 1.8-200 MHZ 3KW PEP con carico HEATHKIT 3 KW in bagno d’olio
– DAIWA CN-901V 140-450 MHZ con carico RADIOSYSTEM 96610-1
– YAESU FT897D CON TXCO per prove allineamento emissioni SSB HF-VHF-UHF e frequenza
Ogni apparecchio USATO,viene sottoposto ad ulteriore verifica prima della spedizione.
TUTTO IL NOSTRO USATO GODE DI 12 MESI DI GARANZIA SCRITTA.
Acquista il tuo usato in tutta sicurezza dalla mediaglobe electronics, per pochi euro di differenza dai prezzi proposti dai venditori “privati” potrai dormire sogni tranquilli. Migliaia di clienti soddisfatti negli anni possono confermare.
