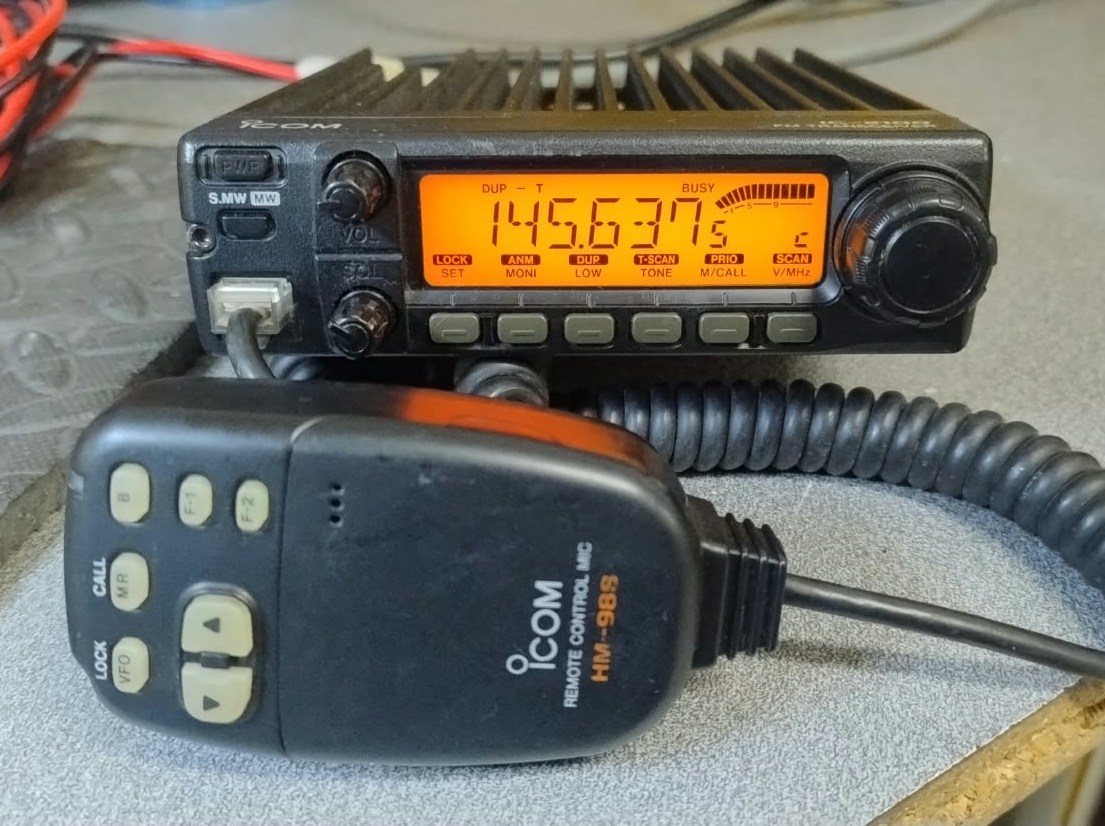

ICOM IC-2100 VHF 55W FM – CON TONI IN BUONO STATO – APERTO DI BANDA

ICOM IC-2100 VHF 55W FM – CON TONI

BUONO STATO – già aperto di banda!

Viene fornito del suo microfono originale, cavo di alimentazione, manuale cartaceo,

manca della staffa e della sua scatola, ma verrà spedito

con un imballo adeguato!

SPECIFICATIONS
GENERAL
Type: Amateur VHF transceiver
Frequency range: Europe and Taiwan
TX: 144-146 MHz
RX: 136-174 MHz
USA, Asia and Australia
TX: 144-148 MHz
RX: 136-174 MHz

(The extended RX frequency range may require modification on some markets)
Tuning steps: 5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz
Frequency stability: ±? ppm @ -10 to +60°C (14 to 140°F)
Mode: FM / NFM (Europe)
FM (USA and other markets)
Channels / memory management: 100 regular with alpha tags
6 scratch pad
3 scan edge pairs
1 call
Priority watch
Non-volatile EEPROM storage
Repeater shift / offset: ±?
Power supply: 13.8 VDC ±15%
Current drain / power consumption: RX: 0.8 to 1 A
TX: 3.5 to 12 A
Antenna impedance / connector: 50 ohm / SO-239
Dimensions (W*H*D): 140*40*180 mm (5.51*1.58*7.09″)
Weight: 1.2 Kg (2.65 lb)
Other features: CTCSS/PL with tone scan. DTMF. Amber or green backlight.
Dimmer.

RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 15.65 MHz
2nd IF: 450 KHz
Sensitivity: 0.18 uV (12 dB SINAD)
Selectivity: FM
12 KHz (-6 dB)
28 KHz (-60 dB)
NFM (Europe only)
6 KHz (-6 dB)
18 KHz (-60 dB)
Image rejection: 60 dB
AF output power / speaker: 2.4 W at 10% distortion / 8 ohm
External speaker connector: 3.5 mm, 8 ohm

TRANSMITTER SECTION
RF output power:
High Mid Low
2 m: 55 W 10 W 5 W
Modulation system: Variable reactance frequency modulation
Max FM deviation (Factory set): FM: ±5 KHz
NFM: ±2.5 KHz (Europe only)
Spurious emissions: Better than -60 dB
Microphone impedance / connector: 600 ohm / 8-pin (Modular)
Microphone input level: ? mV

MISCELLANEOUS
Manufactured: Japan, 1997-199x (Discontinued)
Additional info:
Related documents: User manual (769 KB)
Service manual (3.4 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
CS-2100
EX-1513
EX-1759
HM-77A
HM-78
HM-79
HM-90
HM-95
HM-96
HM-97
HM-98S
HM-118
HM-118T
HM-118TA
HS-15B
HS-62
MB-17A
OPC-346
OPC-347
OPC-440
OPC-441
OPC-474
OPC-478
OPC-589
OPC-647
SP-10
SP-12 Cloning software
Infrared sub receiver
Infrared receiver
DTMF microphone with DTMF memory
Hand microphone
Hand microphone with tone call
Wireless microphone
DTMF microphone
Hand microphone
Hand microphone with tone call
Remote control microphone with backlighting
Hand microphone
DTMF microphones with keypad backlighting
DTMF microphones with keypad backlighting
Switch box
Flexible mobile microphone
Mobile mounting bracket, one-touch
DC power cable, 3 m
DC power cable, 7 m
Mic extension cable, 5 m
Speaker extension cable, 5 m
Cloning cable (Radio-to-radio)
Cloning cable, RS-232C (Radio-to-PC)
Microphone adapter cable
Mic extension cable, 2.5 m
External speaker, compact design
External speaker, slim dimensions

Tutto il NOSTRO USATO, prima di essere messo in vendita, viene testato con apparecchiature professionali, e pulito ed igienizzato a fondo, non come altri che pubblicano solo “foto” pervenute, e vendono quelle….
– TEST SET 0-500 MHZ RODE & SCHWARZ SMFP2 per prove RX/TX HF-VHF-UHF e Marconi
– DAIWA CN-901HP3 1.8-200 MHZ 3KW PEP con carico HEATHKIT 3 KW in bagno d’olio
– DAIWA CN-901V 140-450 MHZ con carico RADIOSYSTEM 96610-1
– YAESU FT897D CON TXCO per prove allineamento emissioni SSB HF-VHF-UHF e frequenza
Ogni apparecchio USATO,viene sottoposto ad ulteriore verifica prima della spedizione.
TUTTO IL NOSTRO USATO GODE DI 12 MESI DI GARANZIA SCRITTA.
Acquista il tuo usato in tutta sicurezza dalla mediaglobe electronics, per pochi euro di differenza dai prezzi proposti dai venditori “privati” potrai dormire sogni tranquilli. Migliaia di clienti soddisfatti negli anni possono confermare.
