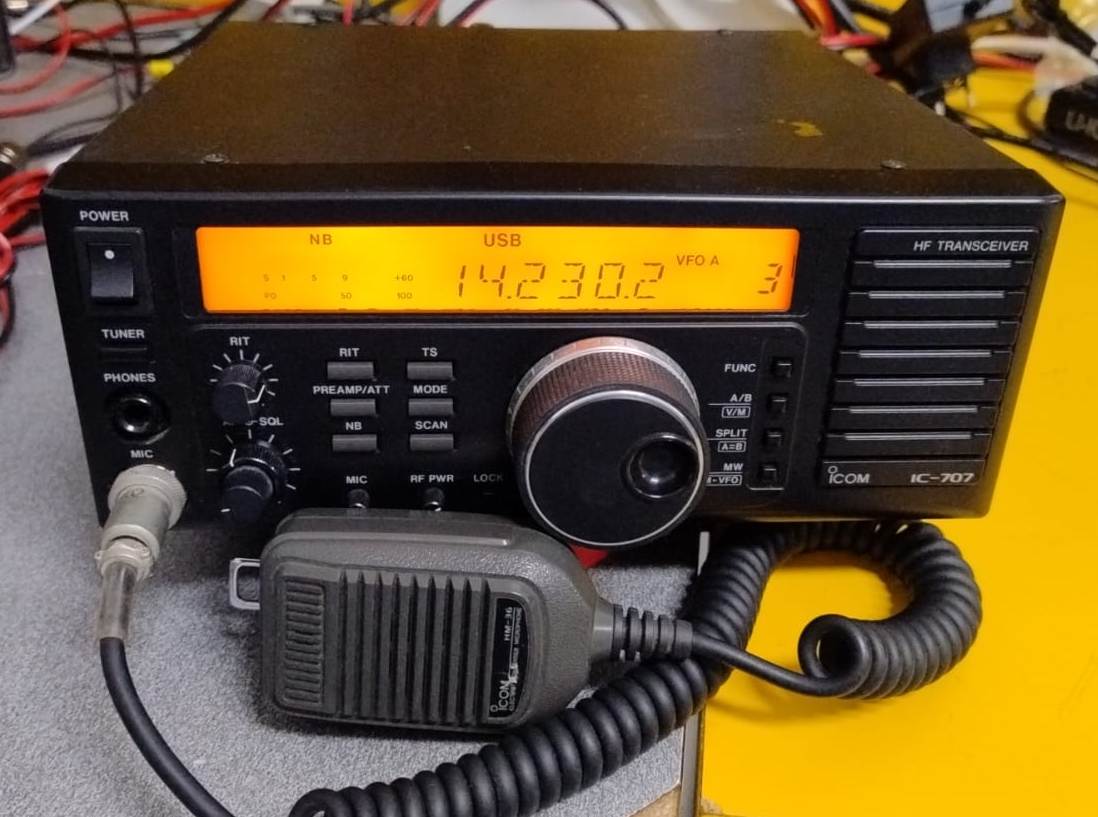

ICOM IC-707 RTX HF 0-30MHZ AM/LSB/USB – BUONO STATO
RTX ICOM IC-707 MOLTO ESSENZIALE MA CON OTTIMO RICEVITORE
APERTO DI BANDA CON MICROFONO ORIGINALE E CAVO ALIMENTAZIONE
VERRA’ SPEDITO CON UN IMBALLO ADEGUATO
SPECIFICATIONS
| GENERAL |
| Type: |
Amateur HF transceiver |
| Frequency range: |
TX: 10-160 m + WARC
RX: 0.5-30 MHz |
| Tuning steps: |
10 Hz, 1 KHz, 1 MHz |
| Frequency stability: |
±350 Hz @ 0 to 50°C (32 to 122°F) |
| Mode: |
AM / SSB / CW (FM option) |
| Channels / memory management: |
25 regular
5 split
2 scan edge
RAM storage with litium battery backup |
| Repeater shift / offset: |
No dedicated. Use VFO A/B split instead |
| Power supply: |
13.8 VDC ±15% |
| Current drain / power consumption: |
RX: 1.3 to 2.1 A
TX: Max 20 A |
| Antenna impedance / connector: |
50 ohm / SO-239 |
| Dimensions (W*H*D): |
240*95*239 mm (9.4*3.7*9.4″) |
| Weight: |
4.1 Kg (9 lb) |
| Other features: |
NB. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 64.455 MHz
2nd IF: 455 KHz |
| Sensitivity: |
AM (10 dB S/N)
0.5-1.8: 13 uV
1.8-30 MHz: 2 uV
FM (12 dB SINAD, Optional)
28-30 MHz: 0.5 uV
SSB/CW (10 dB S/N)
1.8-30 MHz: 0.16 uV |
| Selectivity: |
AM
6 KHz (-6 dB)
20 KHz (-40 dB)
FM (Optional)
12 KHz (-6 dB)
30 KHz (-50 dB)
SSB/CW
2.1 KHz (-6 dB)
4 KHz (-60 dB) |
| Image rejection: |
70 dB |
| AF output power / speaker: |
2.6 W at ?% distortion / 8 ohm |
| External speaker connector: |
3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
Pwr |
| AM: |
5-25 W |
| FM: |
5-100 W |
| SSB (PEP): |
5-100 W |
| CW: |
5-100 W |
|
| Modulation system: |
AM: Low power modulation
FM: Variable reactance frequency modulation (Optional)
SSB: Balanced modulation |
| Max FM deviation (Factory set): |
±? KHz |
| Spurious emissions: |
Better than -50 dB |
| Microphone impedance / connector: |
600 ohm / 8-pin (Metal locking ring connector) |
| Microphone input level: |
? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: |
Japan, 1993-199x (Discontinued) |
| Additional info: |
New price 1993 in Sweden: SEK 9950:- |
| Related documents: |
User manual (4.1 MB)
Service manual (25 MB) |
| Modifications and fixes: |
|
| Reviews: |
|
| Options / Accessories: |
AH-2b
AH-3
AT-150
AT-160
AT-500
CR-338
CT-16
CT-17
EX-627
FL-52A
FL-53A
HM-36
IC-2KL
IC-4KL
MB-5
MB-23
OPC-025A
PS-15
PS-30
PS-55
SM-6
SM-8
SM-20
SP-7
SP-20
SP-21
UI-9
UT-30 |
Mobile antenna element. HF. 2.5 m long
Automatic HF antenna tuner, 150 W
Automatic HF antenna tuner, 150 W
Automatic HF antenna tuner, 150 W
Automatic HF antenna tuner, 500 W
High-stability crystal unit (±0.5 ppm)
Satellite interface unit
CI-V level converter
Automatic antenna selector
500 Hz CW/RTTY narrow filter. IF: 455 KHz
250 Hz CW/RTTY super-narrow filter. IF: 455 KHz
Standard hand microphone
HF linear amplifier, 500 W
HF linear amplifier, 1 KW
Mobile mounting bracket
Carrying handle
DC power cacble
DC power supply. 13.8 VDC, 20 A
DC power supply. 13.8 VDC, 25 A
Heavy duty DC power supply. 13.8 VDC, 20 A
Desktop microphone. Electret condenser
Desktop microphone. Electret condenser with two line output and up/down buttons
Desktop microphone. Electret condenser deluxe with up/down and lo-cut switches
External speaker. 5 W, 8 ohms
External speaker with four audio filters. 5 W, 8 ohms
External speaker. 5 W, 8 ohms
FM unit
Programmable tone encoder unit |
|
|
Tutto il NOSTRO USATO, prima di essere messo in vendita, viene testato con apparecchiature professionali, e pulito ed igienizzato a fondo, non come altri che pubblicano solo “foto” pervenute, e vendono quelle….
– TEST SET 0-500 MHZ RODE & SCHWARZ SMFP2 per prove RX/TX HF-VHF-UHF e Marconi
– DAIWA CN-901HP3 1.8-200 MHZ 3KW PEP con carico HEATHKIT 3 KW in bagno d’olio
– DAIWA CN-901V 140-450 MHZ con carico RADIOSYSTEM 96610-1
– YAESU FT897D CON TXCO per prove allineamento emissioni SSB HF-VHF-UHF e frequenza
Ogni apparecchio USATO,viene sottoposto ad ulteriore verifica prima della spedizione.
TUTTO IL NOSTRO USATO GODE DI 12 MESI DI GARANZIA SCRITTA.
Acquista il tuo usato in tutta sicurezza dalla mediaglobe electronics, per pochi euro di differenza dai prezzi proposti dai venditori “privati” potrai dormire sogni tranquilli. Migliaia di clienti soddisfatti negli anni possono confermare.
