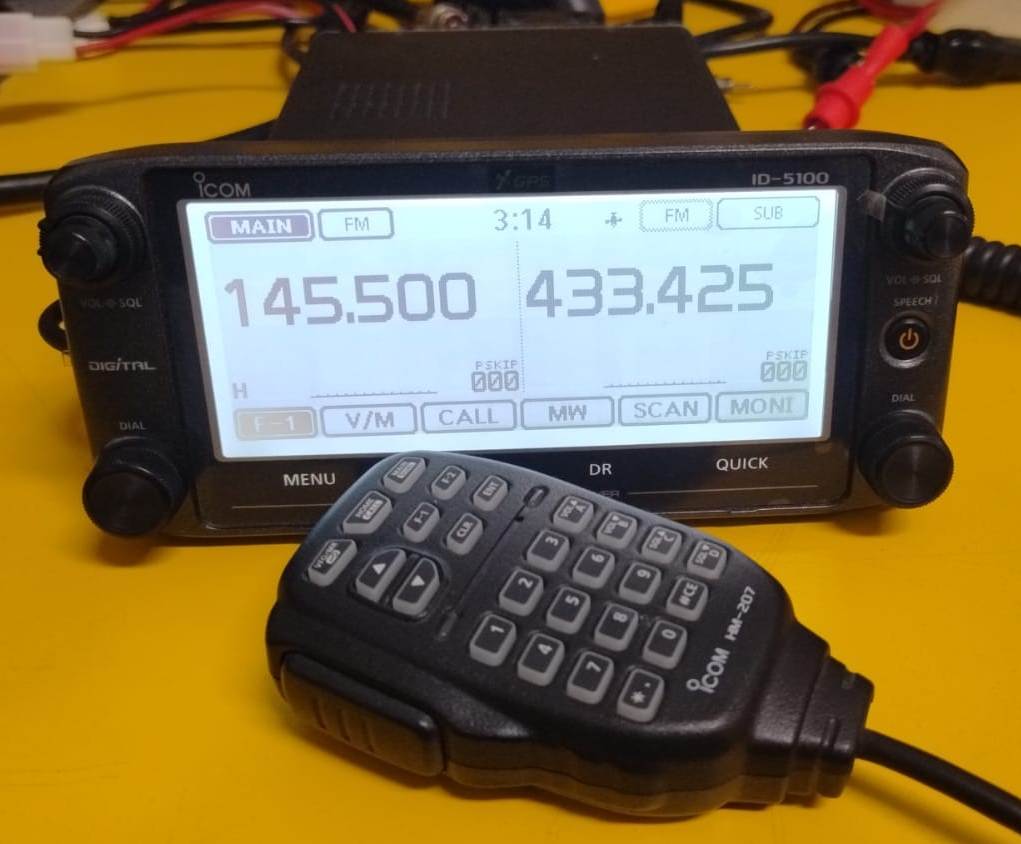

ICOM ID5100 RTX VHF/UHF – FM/DSTAR – SCHEDA BLUETOOTH – SCHEDA VOICE – PARI AL NUOVO, UNICO PROPRIETARIO

ICOM ID5100 RTX VHF/UHF – FM/DSTAR

SCHEDA BLUETOOTH – SCHEDA VOICE

PARI AL NUOVO, UNICO PROPRIETARIO

Raro e introvabile Ricetrasmettitore Icom ID-5100 d-star

venduto con scheda bluetooth e voice, già aperto di banda, completo

di microfono, cavo alimentazione, cavo di collegamento frontalino

ed imballo originale.

n.b. Già programmato con i ripetitori della zona 7 e zona 8, PMR, LPD, frequenze nautiche e aereonautiche.

SPECIFICATIONS:

GENERAL
Type: Amateur VHF/UHF transceiver
Frequency range: Europe
TX: 144-146 / 430-440 MHz
RX: 118-174 / 375-550 MHz
Tuning steps: 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz
Frequency stability: ±2.5 ppm @ -10 to +60°C (14 to 140°F)
Mode: TX: FM / FM-N / DV (D-Star)
RX: AM / AM-N / FM / FM-N / DV (D-Star)
Channels / memory management: 1000 regular
25 scan edge pairs
4 call (2 per band)
Non-volatile EEPROM storage
Repeater shift / offset: ±0 to 59.995 MHz
Power supply: 13.8 VDC ±15%
Current drain / power consumption: RX: 1.2 to 1.8 A
TX: Max 13 A
Antenna impedance / connector: 50 ohm / SO-239
Dimensions (W*H*D): Main unit: 150*40*173 mm (5.9*1.6*6.8″)
Controller: 182*25*82 mm (7.2*1*3.2″)
Weight: Main unit: 1.3 Kg (2.9 lb)
Controller: 260 g (9.2 oz)
Other features: Touch screen LCD. Bluetooth and remote control from Android device
Built-in GPS (inside controller), DV dual watch, Antenna RX diversity
CTCSS/PL, DTCS. SD card slot, DTMF decoder, Twin RX (V+V, V+U, U+U)

RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 38.85 MHz (A band). 46.35 MHz (B band)
2nd IF: 450 KHz
Sensitivity: FM/NFM (Ham bands): 0.18 uV (12 dB SINAD)
DV (Ham bands): 0.28 uV (BER 1%)
Squelch sensitivity: Less than 0.13 uV (Threshold)
Noise figure:
Selectivity:
Image rejection: 55-60 dB
AF output power / speaker: 2 W at 10% distortion / 8 ohm
External speaker connector: TS “Minijack” (3.5 mm), 8 ohm

TRANSMITTER SECTION
RF output power:
High Mid Low
2 m: 50 W 15 W 5 W
70 cm: 50 W 15 W 5 W
Modulation system: FM/NFM: Variable reactance frequency modulation
DV: GMSK reactance frequency modulation
Max FM deviation (Factory set): FM: ±5 KHz
NFM: ±2.5 KHz
Spurious emissions: Better than -60 dBc
Microphone impedance / connector: 600 ohm / 8-pin (Modular)
Microphone input level: ? mV

MISCELLANEOUS
Manufactured: Japan, 2014-201x
Additional info:
Related documents: User manual (7.1 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
CS-5100
CT-17
HM-154
HM-207
MBA-2
MBF-1
MBF-4
OPC-440
OPC-478UC
OPC-589
OPC-647
OPC-837
OPC-1156
OPC-1529R
OPC-2218LU
RS-MS1A
SP-30
SP-35
SP-35L
UT-133
VS-3 Cloning software (free download)
CI-V level converter
Hand microphone
Remote-control hand microphone
Controller bracket
Suction cup mounting base
Mobile mounting bracket
Mic extension cable. 5 m (16.4 ft)
Cloning cable, USB (Radio-to-PC)
Mic adaptor cable. 8-pin to modular
Mic extension cable. 2.5 m (8.2 ft)
Controller extension cable. 3.5 mm (11.4 ft)
Controller cable. 3.5 m (11.4 ft)
Data communication cable. RS-232C
Data communication cable. USB
Android app. Free download
External speaker. 2.8 m (9.1 ft) cable
External speaker. 2 m (6.5 ft) cable
External speaker. 6 m (19.7 ft) cable
Bluetooth unit
Bluetooth pendant earpiece-microphone

Tutto il NOSTRO USATO, prima di essere messo in vendita, viene testato con apparecchiature professionali, e pulito ed igienizzato a fondo, non come altri che pubblicano solo “foto” pervenute, e vendono quelle….
– TEST SET 0-500 MHZ RODE & SCHWARZ SMFP2 per prove RX/TX HF-VHF-UHF e Marconi
– DAIWA CN-901HP3 1.8-200 MHZ 3KW PEP con carico HEATHKIT 3 KW in bagno d’olio
– DAIWA CN-901V 140-450 MHZ con carico RADIOSYSTEM 96610-1
– YAESU FT897D CON TXCO per prove allineamento emissioni SSB HF-VHF-UHF e frequenza
Ogni apparecchio USATO,viene sottoposto ad ulteriore verifica prima della spedizione.
TUTTO IL NOSTRO USATO GODE DI 12 MESI DI GARANZIA SCRITTA.
Acquista il tuo usato in tutta sicurezza dalla mediaglobe electronics, per pochi euro di differenza dai prezzi proposti dai venditori “privati” potrai dormire sogni tranquilli. Migliaia di clienti soddisfatti negli anni possono confermare.
