XIEGU X6100 RTX SDR HF QRP 0.5 – 30 MHZ 10 W CON AT TUNER DSP – PARI AL NUOVO

XIEGU X6100 RTX SDR HF QRP 0.5 – 30 MHZ 10 W CON AT TUNER DSP –

 PARI AL NUOVO

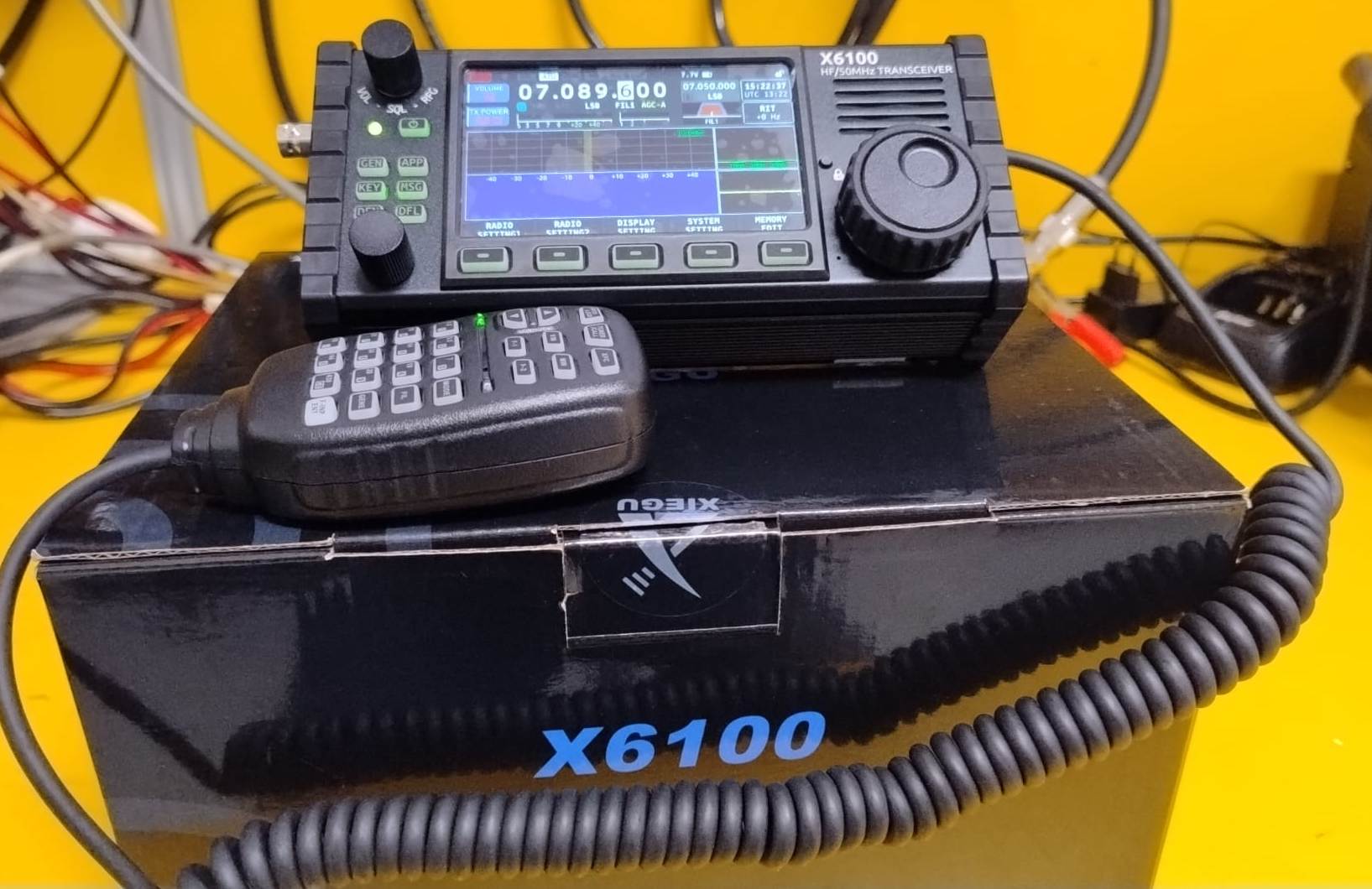

RTX Xiegu X6100 QRP HF/50mhz,unico proprietario, di fatto mai utilizzato (si potrebbe vendere

per nuovo e nessuno se ne accorgerebbe)



E’ completo di tutta la sua dotazione originale compreso

l’imballo.



SPECIFICATIONS

GENERAL
Type:	Amateur HF/VHF transceiver
Frequency range:	TX: 10-160 m + WARC / 6 m RX: 0.5-30 / 50-54 MHz
Tuning steps:	Down to 1 Hz
Frequency stability:	±1.5 ppm @ 25°C (77°F), within 10-30 minutes after power on 1 ppm per hour thereafter
Mode:	AM / FM / SSB / CW / RTTY
Channels / memory management:	200 regular with alpha tags
Repeater shift / offset:	±?
Power supply:	7.4 VDC (Li-Ion battery pack) or 9-15 VDC external
Current drain / power consumption:	RX: 330 mA (Average) TX: Max 3 A
Antenna impedance / connector:	50 ohm / BNC
Dimensions (W*H*D):	180*86*49 mm (7.09*3.39*1.93″)
Weight:	880 g (1.94 lb)
Other features:	4″ color TFT. Built-in auto-ATU. SWR scanner. Voice memory keyer. CW keyer. Bluetooth. WiFi. Built-in sound card. USB-C. I/Q output. Dimmer. Spectrum display (96 KHz) and waterfall. MicroSD card slot. Clock. Internal mike and PTT. CW/RTTY/BPSK decoder.
RECEIVER SECTION
Receiver system:	SDR, 24-bit
Sensitivity:	AM (10 dB S/N) 0.5-2.0 MHz: 10 uV 2.0-30 MHz: 2 uV 50-54 MHz: 2 uV FM (12 dB SINAD) 28-30 MHz: 0.22 uV 50-54 MHz: 0.22 uV SSB/CW (10 dB S/N) 1.8-2.0 MHz: 0.35 uV 2.0-30 MHz: 0.2 uV 50-54 MHz: 0.2 uV
Selectivity:
Image rejection:
AF output power / speaker:	400 mW at 10% distortion / 8 ohm
External speaker connector:	3.5 mm (Stereo), 4-16 ohm
TRANSMITTER SECTION
RF output power:	Max Pwr @ Battery Max Pwr @ 13.8V AM: 1.5 W 2.5 W FM: 5 W 10 W SSB (PEP): 5 W 10 W CW/RTTY: 5 W 10 W
Modulation system:	AM: Low level FM: Variable reactance SSB: Balanced
Max FM deviation (Factory set):	±5 KHz
Spurious emissions:	10-160 m: Better than -50 dB 6 m: Better than -60 dB
Microphone impedance/connector:	600 ohm (Nominal) / 8-pin (RJ45 / Modular)
Microphone input level:	? mV
MISCELLANEOUS
Manufactured:	China, 2021-202x
Additional info:	New price, june 2023 from manufacturer: Euro 729.00
Related documents:	User manual (2.5 MB)
Modifications and fixes:
Reviews:
Options / Accessories:	L4001 XPA125B Amplifier control cable (For XPA125B) 100 W power amplifier with ATU





Tutto il NOSTRO USATO, prima di essere messo in vendita, viene testato con apparecchiature professionali, e pulito ed igienizzato a fondo, non come altri che pubblicano solo “foto” pervenute, e vendono quelle….

– TEST SET 0-500 MHZ RODE & SCHWARZ SMFP2 per prove RX/TX HF-VHF-UHF e Marconi
– DAIWA CN-901HP3 1.8-200 MHZ 3KW PEP con carico HEATHKIT 3 KW in bagno d’olio
– DAIWA CN-901V 140-450 MHZ con carico RADIOSYSTEM 96610-1
– YAESU FT897D CON TXCO per prove allineamento emissioni SSB HF-VHF-UHF e frequenza

 Ogni apparecchio USATO,viene sottoposto ad ulteriore verifica prima della spedizione.
TUTTO IL NOSTRO USATO GODE DI 12 MESI DI GARANZIA SCRITTA.

 Acquista il tuo usato in tutta sicurezza dalla mediaglobe electronics, per pochi euro di differenza dai prezzi proposti dai venditori “privati” potrai dormire sogni tranquilli. Migliaia di clienti soddisfatti negli anni possono confermare.
