Yaesu FT-DX10 ricetrasmettitore SDR HF / 50 / 70Mhz CON AT Tuner NEW CASHBACK 2026

YAESU FTDX10 RICETRASMETTITORE SDR HF / 50 / 70MHZ CON AT TUNER
GARANZIA ITALIA 5 ANNI

Come di consueto, le richieste di cashback potranno essere inoltrate unicamente tramite il sito ufficiale http://yaesucashback.co.uk/

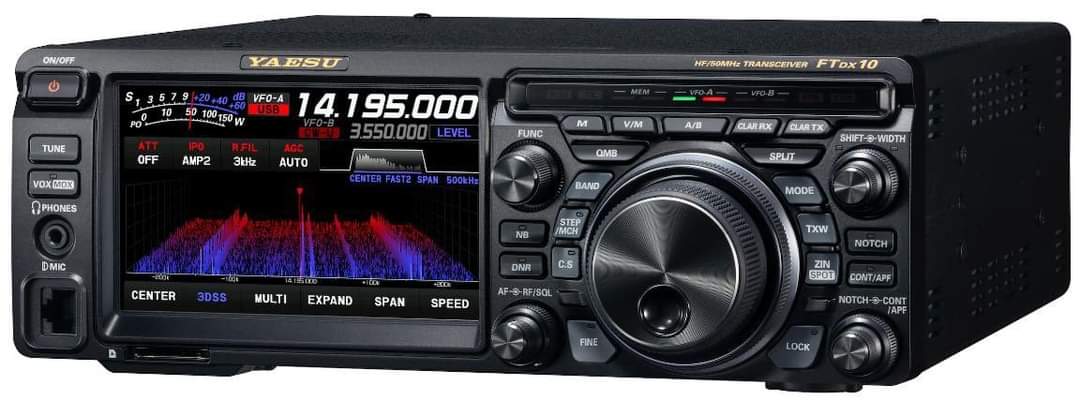

Yaesu FT-DX10 ricetrasmettitore SDR  HF / 50 / 70Mhz CON AT Tuner

Ricetrasmettitore SDR FTDX10 HF / 50MHz 100W

Ricetrasmettitore compatto da 100W per HF / 50 / 70 MHz. Configurazione SDR ibrida con ricevitore a conversione e stadio a campionamento diretto per l’analizzatore di spettro 3D in tempo reale. Filtri roofing di 12 kHz, 3 kHz, 500 Hz. IMDR di terzo ordine pari a 116dB, blocking pari a 141dB. Anno di introduzione 2020, paese di ideazione Giappone.

Tipologia : uso radioamatoriale

SPECIFICHE FT-DX10
Generali

Frequency coverage
Receive 0.0300 ~ 75.0000 MHz [1]
Transmit 1.8 / 3.5 / 5.1675 [2] / 5.2 / 7 / 10 / 14 / 18 / 21 / 24 / 28 / 50 / 70 [3] MHz band
Mode
CW / FSK (RTTY) / PSK / LSB / USB / AM / FM
Tuning step
1 / 5 / 10 / 100 Hz / 1 / 2.5 / 5 / 6.25 / 9 / 10 / 12.5 / 20 / 25 KHz

Ricevitore

Sensitivity
SSB [4] 0.16 uV (1.8~30 MHz, 10dB S+N/N, preamp2 ON)
0.12 uV (50~54 MHz, 10dB S+N/N, preamp2 ON)
0.16 uV (70~70.5 MHz, 10dB S+N/N, preamp2 ON)
AM [5] 7.9 uV (0.5~1.8 MHz, 10dB S+N/N)
2.0 uV (1.8~30 MHz, 10dB S+N/N, preamp2 ON)
1.0 uV (50~54 MHz, 10dB S+N/N, preamp2 ON)
2.0 uV (70~70.5 MHz, 10dB S+N/N, preamp2 ON)
FM [6] 0.25 uV (28~30 MHz, 12dB SINAD, preamp2 ON)
0.2 uV (50~54 MHz, 12dB SINAD, preamp2 ON)
0.25 uV (70~70.5 MHz, 12dB SINAD, preamp2 ON)
Selectivity
CW [7] > 0.50 KHz (-6dB)
< 0.75 KHz (-60dB)
SSB [4] > 2.4 KHz (-6dB)
< 3.6 KHz (-60dB)
AM [5] > 6.0 KHz (-6dB)
< 15.0 KHz (-60dB)
FM [6] > 12.0 KHz (-6dB)
< 25.0 KHz (-60dB)
AF preamplifiers
Preamp1 ~10 dB
Preamp2 ~20 dB
RF attenuator
Yes
DR (Dynamic Range)
109 dB (2 KHz spaced signals, 14 MHz)
110 dB (20 KHz spaced signals, 14 MHz)
RMDR (Reciprocal Mixing Dynamic Range)
116 dB (2 KHz spaced signals, 14 MHz)
122 dB (20 KHz spaced signals, 14 MHz)
Blocking
141 dB (2 KHz spaced signal, 14 MHz)
Synthesizer phase noise
-145 dBc@2 KHz (14 MHz)
Image rejection
> 70 dB (1.8~30 MHz, amateur bands)
> 60 dB (50~54 MHz)
IF rejection
> 70 dB (1.8~30 MHz, amateur bands)
> 60 dB (50~54 MHz)
Notch filter
Manual Yes
Automatic Yes
NB (Noise Blanker)
Yes
DNR (Digital Noise Reduction)
Variable in 15 steps
AGC (Automatic Gain Control)
Off + time constant user selectable
Frequency stability
± 0.5 ppm max with temperature from 0°C to +50°C after 5′ warm-up
IF (Intermediate Frequency)
1° 9.005 MHz
2° 24 KHz
IF roofing filter
300 [8] / 500 Hz / 3 / 12 KHz
CW features
Decoder
Spotting for zero-beating
Semi break-in / full break-in
300~1050 Hz pitch control
APF (Audio Peak Filter)
Reverse mode LSB/USB
FSK features
Decoder
RTTY Normal or Reverse
Mark frequency 2125 or 1275 Hz
Shift 170, 200, 425 or 850 Hz
PSK features
Decoder
BPSK and QPSK mode

Trasmettitore

Output power
SSB / CW / FSK / PSK / FM 5 ~ 100 W
AM 2 ~ 25 W
Spurious emission
Harmonics < -50 dB (1.8~29.7 MHz)
< -63 dB (50 MHz)
Carrier suppression (SSB)
> 60 dB
Unwanted sideband suppression (SSB)
> 60 dB
Maximum deviation (FM)
± 5 / 2.5 KHz
Microphone
600O (200 to 10kO)
CW features
4~60 wpm keyer
Antenna tuner
Impedance range 16-150O (1.8~29.7 MHz)
25-100O (50 MHz)

Funzioni

Memory
? regular memories
3 band-stack memories
10 quick memory bank
Display
1 Hz frequency resolution
Selective calling
CTCSS
Antenna
SO239 50O
Power supply
13.8 VDC ±15%
Power consumption
2.5A RX, audio Off
3.0A RX, audio On
23A TX, max power
Audio power
2.5 W on 4O
Audio output
Jack 3.5 mm headphone
Jack 3.5 mm external speaker
Connections
Jack 6.35 mm (key)
Jack (remote control keypad)
6-pin Jack (TNC)
8-pin Jack (antenna tuner)
10-pin Jack (power amplifier)
16-pin Jack (accessories)
DB-9 RS232C (PC)
USB B (PC)
2 x USB A (keyboard and mouse)
DVI-D (external display)

Dati meccanici ed ambientali

Operating temperature
from 0°C to +50°C
Dimensions
266 (W) x 91 (H) x 263 (D) mm
Weight
5.9kg

Specifiche garantite nelle bande 1.8~29.7, 50~54, 70~70.5 MHz.

Versione USA.

Versione UK.

Larghezza di banda 2.4 kHz.
Larghezza di banda 6.0 KHz.
Larghezza di banda 12.0 KHz.
Larghezza di banda 0.5 KHz.
Opzionale.
