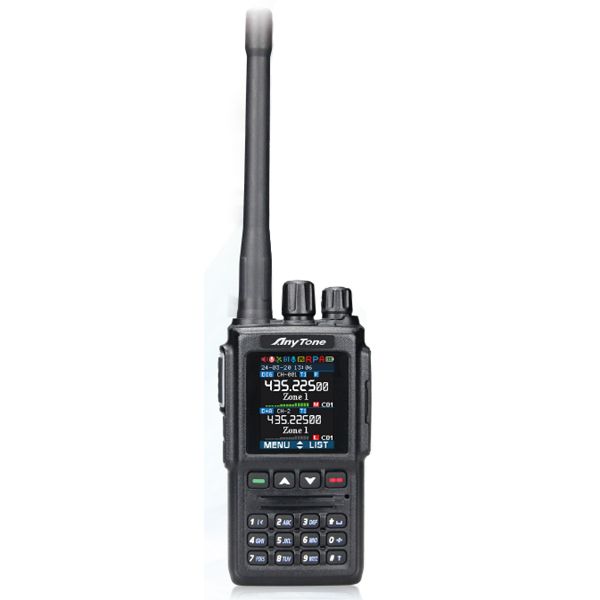

ANYTONE AT-D168UV – RTX VHF/UHF BT/VFO CON DSP E REC

Anytone DMR AT-D168UV Radio Portatile digitale dmr analogica dual band

Differenze essenzialei rispetto al suo famoso fratello 878:
il modello AT-D168UV NON ha Gps, NON ha bluetooth, NON ha Aprs,  ma ha NR Dsp, ha la porta C-USB direttamente sulla radio per la ricarica, ha REGISTRATORE Analogico/Digitale di 4 ore, ha il QDC1200, ed il satellite.

CARATTERISTICHE TECNICHE
• True-2-slot: Provide 2-slot communication which allows for 2 talk paths on 1 frequency; ETSI DMR Tier I and ll compliant
• Power 4W/2W/1W/0.1W
• Auto-senses digital or analog recepton
• 256 channels+ VFO, Voice prompting
• Support Contact Manager
• Bandwidth: 12.5K/25K (Analog 12.5K(DMR)
• Fixed and defined CTCSS/DCS encode and decode
• DIMF/2TONES/5TONE encode and decode
• Four diferent Tone pluse frequencies
• Individual/Group/All call
• Icon indicator or Voice prompt when connecting with repeater
• Zone selecton
• ANI functon and PIT ID: VOX: Digital Record ng and play
• Earphone: KENWOOD connector:
• Battery:3.7V 260OmAh Polymer battery
3.7V 5200mAh Li-ion battery(optional)
SPECIFICHE TECNICHE

General
Frequency Range 136-174MHz (V) , 400-480MHz (U)
Channel Capacity 4000 channels
Channel Spacing 25KHz (Wide Band)    12.5KHz (Narrow Band)
Phase-locked Step 5KHz, 6.25KHz
Operating Voltage 7.4V DC ±20% (2100mAh)
Frequency Stability ±2.0ppm
Operating Temperature -20?~ +55?
Size 129×61×39mm (with battery pack)
Weight 282g (with battery pack, antenna)
Transmitting Part
Power Output VHF: 7/5/2.5/1W, UHF: 6/5/2.5/1W
Modulation limit ±5.0KHz@25KHz (Wide Band)    ±2.5KHz@12.5KHz (Narrow Band)
Adjacent Channel Power ≥70dB (Wide Band)      ≥60dB (Narrow Band)
Hum & Noise ≥40dB (Wide Band)        ≥36dB (Narrow Band)
Spurious Emission ≤-36dB (Wide Band)      ≤-36dB (Narrow Band)
4FSK Digital Modulation 12.5KHz(data)7K60FXD      12.5KHz(data+voice)7K60FXE
Audio Distortion ≤5%
Error rate ≤3%
Receiving Part
Sensitivity (12dB SINAD) ≤0.25µV (Wide Band)  ≤0.35µV (Narrow Band)
Digital Sensitivity 0.3uV/-117.4dBm (BER 5%)        0.7uV/-110dBm (BER 1%)
Adjacent Channel  Selectivity ≥70dB (Wide Band)      ≥60dB (Narrow Band)
Spurious Emission ≤-57dB (Wide Band)      ≤-57dB (Narrow Band)
Spurious Rejection ≥70dB (Wide Band)        ≥70dB (Narrow Band)
Blocking 84db
Hum & Noise ≥45dB (Wide Band)        ≥40dB (Narrow Band)
Audio Distortion ≤5%
Audio Power Output 1000mW/16O
