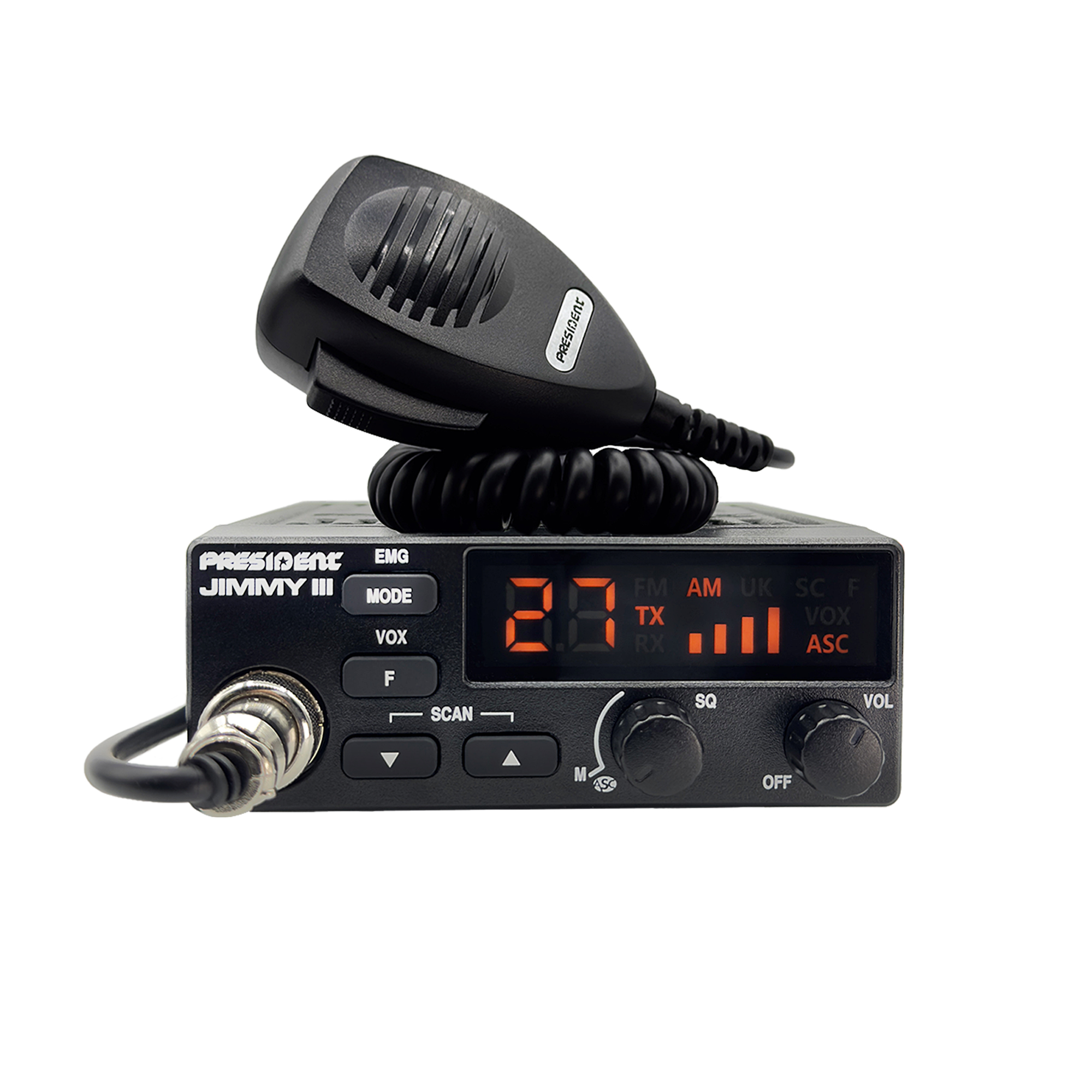

PRESIDENT JIMMY III RICETRASMETTITORE CB AM/FM OMOLOGATO

PRESIDENT JIMMY III

RICETRASMETTITORE CB AM/FM OMOLOGATO 40 CANALI

Size (mm)  115 (L) x 130 (W) x 45 (H)
:Weight  0.560 kg
:Accessories supplied  1 microphone and its hanger , 1 mounting bracket with fixing screws , power cord with fuse , User manual
:Antenna socket  SO-239
:Antenna impedance  50 ohms
:Multiconfiguration  EU / U / D / PL / IN
:Number of channels  40
:Frequency ranges  from 26.965 MHz to 27.405 MHz
:Power supply  13.2 V
:Microphone plug  front (6 pins)
:Compatible microphone type  Electret
:Compatible REMOTE BT MIKE / REMOTE MIKE
:External loudspeaker jack
:Channel display
:S-meter  LED
:Modulation modes  AM / FM
:Volume adjustment and ON/OFF
:Squelch  Manual squelch
:ASC
:Channel selector  Up / down
:Mode switch
:F / Menu function key
:Key Beep  , Switchable
:Scan  channels
:Vox

TX:

Frequency allowance ± 300 Hz
:Carrier power 4 W (AM/FM)
:Transmission interference < 4 nW (-54 dBm)
:Audio response  300 Hz to 3 kHz
:Emitted power in the adj. channel < 20 µW
:Microphone sensitivity 3 mV
:Drain < 2 A (13.2 V)
:Modulated signal distortion 2%

RX:

Max. sensitivity at 20 dB sinad 0.5 µV – 113 dBm (AM) / 0.35 µV – 116 dBm (FM)
:Frequency response 300 Hz to 3 kHz
:Adjacent channel selectivity 60 dB
:Maximum audio power 3 W
:Squelch sensitivity min. 0.2 µV – 120 dBm / max. 1 mV – 47 dBm
:Frequency image rejection rate 60 dB
:Intermediate frequency rej. rate 70 dB
:Drain 180 ~ 500 mA (13.2 V)
