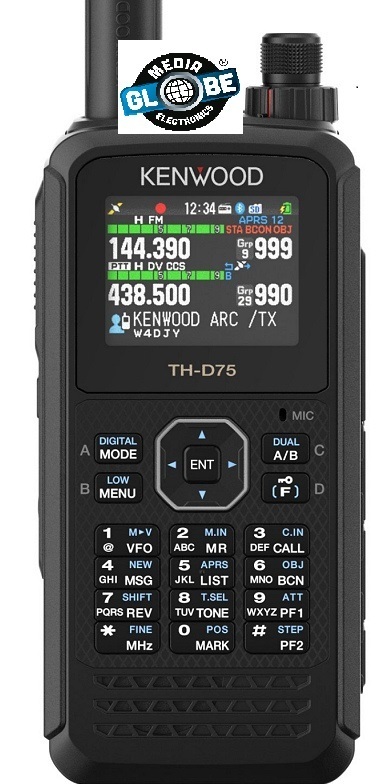

KENWOOD TH-D75E
Ricetrasmettitore Bibanda 144/430 MHz con D-STAR e GPS
Ricezione RX: 0.1-524 MHz (riceve anche in HF in SSB!!!)
Info provvisiorie:
SPECIFICATIONS
GENERAL
Type: Amateur VHF/UHF transceiver
Frequency range: USA
TX: 144-148 / 430-450 MHz
RX: 0.1-524 MHz
Tuning steps: Standard steps: 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 KHz
Fine tuning: 20 / 100 / 500 / 1000 Hz (Band B, AM/SSB/CW only)
Frequency stability: ±2 ppm @ -10 to +50°C (14 to 122°F)
Mode: TX: FM / NFM / DV (D-Star)
RX: AM / FM / NFM / WFM / SSB / CW / DV (D-Star)
Channels / memory management: 1000 regular in 30 groups with alpha tags
100 program scan
1 priority
Non-volatile storage
Repeater shift / offset: ±0 to 29.95 MHz in 50 KHz steps
Power supply: 6-9.6 VDC (Battery pack)
or 11-15.9 VDC external
Current drain / power consumption: RX: ? mA
TX: ? A
Antenna impedance / connector: 50 ohm / SMA
Dimensions (W*H*D): ? mm (?”)
Weight: ? g (? oz)
Other features: CTCSS/PL. DCS. Micro-SD card. Built-in GPS and APRS with digipeater.
Built-in bar entenna for 0.1-10 MHz RX. Color TFT. Weather alert.
Audio equalizer. Hi-performance DSP. Clock. Bluetooth class 2.
Backlit keyboard. USB-C connector. D-Star reflector terminal mode.
IP54/55 compliant.
Recensioni
Ancora non ci sono recensioni.
