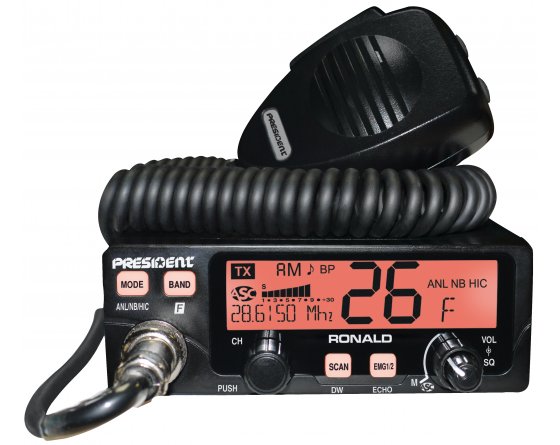

PRESIDENT RONALD RICETRASMETTITORE 10/11 METRI 50W PeP AM/FM

PRESIDENT RONALD
RICETRASMETTITORE 10 METRI ( 28 Mhz) 50W PeP AM/FM
Modificabile a richiesta del cliente per lavorare in 11 metri 27 Mhz (CB)

General

Modulation modes : AM / FM
Frequency ranges : from 28.000 MHz to 29.700 MHz
Antenna impedance : 50 ohms
Power supply : 12 V
Size : 125 (W) x 175 (D) x 45 (H) mm
Weight : 0,9 kg
Accessories supplied : power cord with fuse
1 microphone UP/DOWN and its hanger
1 mounting bracket with fixing screws

Transmission

Frequency allowance : +/- 300 Hz
Carrier power : 13 W AM (50 W PEP) / 35 W FM
Transmission interference : inferior to – 50 dBm
Audio response : 300 Hz to 3 KHz in AM/FM
Emitted power in the adj. channel : inferior to 20 µW
Microphone sensitivity : 3,0 mV
Drain : 7 A max. (with modulation)
Modulated signal distortion : 2%

Reception

Maxi. sensitivity at 20 dB sinad : 0,7 µV -110 dBm (AM) / 0,35 µV -116 dBm (FM)
Frequency response : 300 Hz to 3 kHz in AM/FM
Adjacent channel selectivity : 60 dB
Maximum audio power : 3 W
Squelch sensitivity : minimum : 0.2 µV – 120 dBm / maximum : 1 mV – 47 dBm
Frequency image rejection rate : 60 dB
Intermediate frequency rej. rate : 70 dB
Drain : 500 mA max

– Rotary switch channel selector
– Volume adjustment and ON/OFF
– RF Power
– Manual squelch and ASC
– Multi-functions LCD display
– Frequencies display
– S-meter
– Public Address
– ANL filter, NB and HI-CUT
– RF Gain / Mike gain
– Scan
– Talkback
– F function key
– Beep Function
– Roger Beep
– Mode switch AM/FM
– Dual watch
– Span
– Mic type electret / dynamic
– Key locking
– SWR (Power Reading /SWR)
– Preset emergency (EMG 1/2)
– TOT (Time Out Timer) adjustable
– Front microphone plug
– External loudspeaker jack
Back light color:
NB: trattasi di apprecchio NON omologato per CB, ma nativo per utilizzo in banda 10 metri (28 mhz) radioamatori
