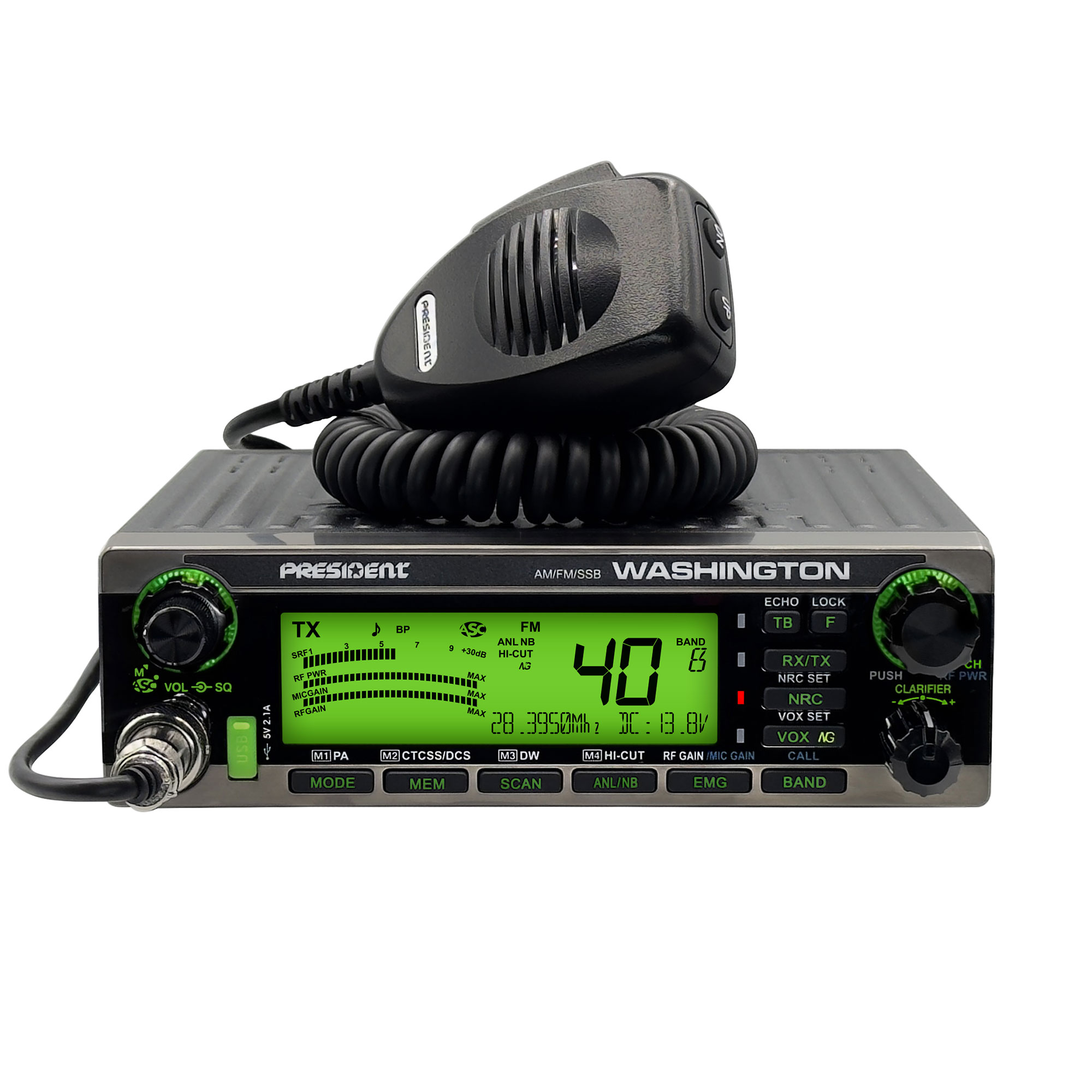

PRESIDENT WASHINGTON RICETRASMETTITORE 100W per 10 METRI HF AM/FM/SSB

PRESIDENT WASHINGTON 100W
RICETRASMETTITORE 10 METRI HF AM/FM/SSB nuova versione 100 Watt PEP

(possibilita’ di espanderlo di banda SOLO PER EXPORT ETRA UE dai 26 ai 30 mhz)
Size (mm)  170 (W) x 250 (D) x 52 (H)
:Weight  1,4 kg
:Accessories supplied  1 microphone UP/DOWN and its hanger , 1 mounting bracket with fixing screws , power cord with fuse
:Antenna socket  SO-239
:Antenna impedance  50 ohms
:Multiconfiguration  EU / U / D / PL / IN
:Frequency ranges  from 24.890 Mhz to 24.990 Mhz and from 28.000 Mhz to 29.700 Mhz (continuous scanning)
:Power supply  Nominal 13.8V DC, negative ground (10.5 VDC to 16.0 VDC)
:Microphone plug  front (6 pins)
:Compatible microphone type  Electret , Dynamic
:External Vox microphone jack
:External loudspeaker jack
:Public address
:External HP PA socket
:USB socket (front)  5 V / 2,1 A
:Display  LCD multifunction
:Dimmer
:Frequencies display
:Band name
:S-meter  Digital
:Modulation modes  AM / FM / USB / LSB
:Volume adjustment and ON/OFF
:Squelch  Manual squelch
:ASC
:Channel selector  Rotary
:Mode switch
:F / Menu function key
:Key Beep    , Switchable
:Roger beep    , Switchable , 6 tones
:Key locking
:Tone
:Memory  4
:Channel preselection  2 , channel 9 & 19 , emergency channel (EMG) programmable
:Span
:Dual watch
:Scan  channels , memories
:Scan Skip
:RF Power
:RF Gain
:Mike-Gain
:Clarifier
:Talkback
:Vox
:Automatic SWR meter
:SWR (Power Reading /SWR)
:Echo
:CALL function
:TOT
:Filter ANL
:Filter NB
:Filter HI-CUT
:NRC
:Noise Gate
:CTCSS  38 tones
:DCS  104 codes
:Notes  FANS (Options – Not included with the radio)

 TRASMISSION

Frequency allowance  ± 200 Hz
:Carrier power  100 W PEP (AM/USB/LSB) / 50 W (FM)
:Power limitation  4/10W
:APM
:Transmission interference  < 4 nW (-54 dBm)
:Audio response  300 Hz to 3 kHz
:Emitted power in the adj. channel  < 20 µW
:Microphone sensitivity  3 mV
:Drain  6 A (with modulation)
:Modulated signal distortion  2%

 RECEPTION

Max. sensitivity at 20 dB sinad  0.7 µV – 110 dBm (AM) / 0.35 µV – 116 dBm (FM) / 0.28 µV – 118 dBm (USB/LSB/CW)
:Frequency response  300 Hz to 3 kHz
:Adjacent channel selectivity  60 dB
:Maximum audio power  3 W
:Squelch sensitivity  min. 0.2 µV – 120 dBm / max. 1 mV – 47 dBm
:Frequency image rejection rate  60 dB
:Intermediate frequency rej. rate  70 dB
:Drain  400 mA nominal / 600 mA max.
