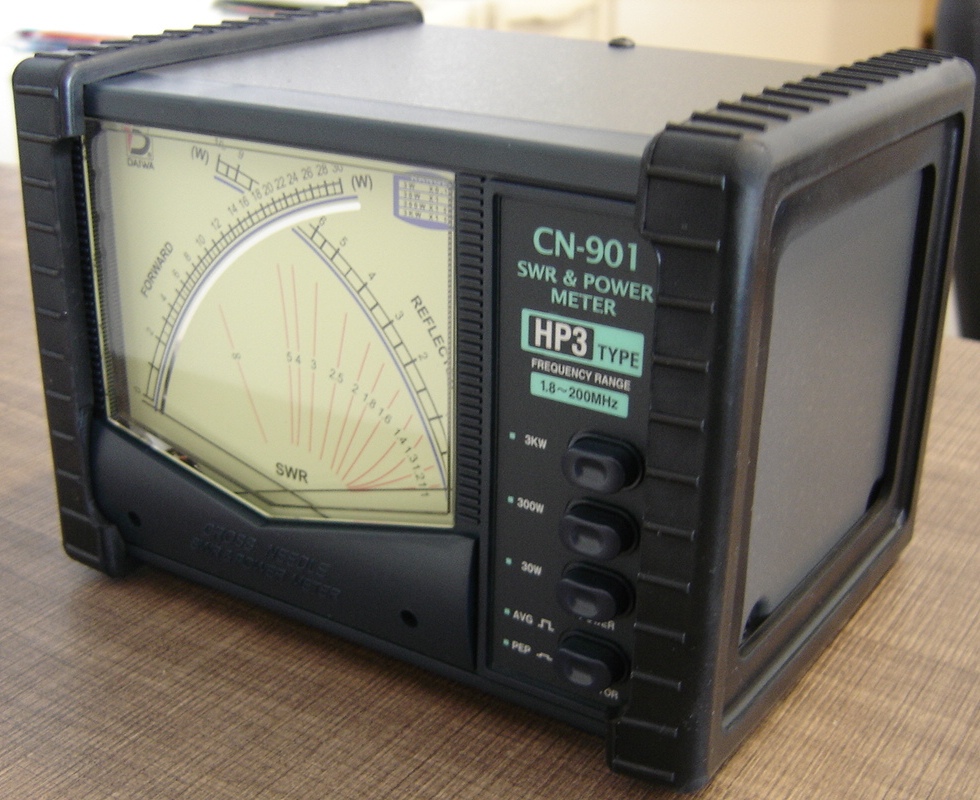

DAIWA CN-901HP3
1.8 – 200 MHZ CROSS NEEDLE PEP WATTMETER / SWR METER 3000 WATTS UHF FEMALE CONNECTOR
sostituisce suo predecessore CN-801HP3
Frequency: 1.8-200MHz
Power Range Forward: 20/200/3kW
Accuracy: +/- 10% (at full scale)
SWR Detection Sensitivity: 5W min
Input/Output Impedence: 50 OHM
Input/Output Connectors: SO-239
Dimensions & Weight: 6.25 x 4.3 x 4.8 / 2lbs. 3ozs. Lighted
Cross needle movement allows the simultaneous monitoring of forward power, reflected power, and SWR without the need of an extra calibration procedure.
New High Power version switchable for 30, 300, or 3000 watt full scale forward watt readings. Built-in lamp. Meter requires external 13.8 VDC source. Supplied with DC power cord.
